VERSION # 20-07- 14
MODEL #
CM3476T-7PK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
1 / 8
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
DIFFICULT
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
Advertisement
Table of Contents
Related Manuals for Furniture of America Anya CM3476T-7PK
Summary of Contents for Furniture of America Anya CM3476T-7PK

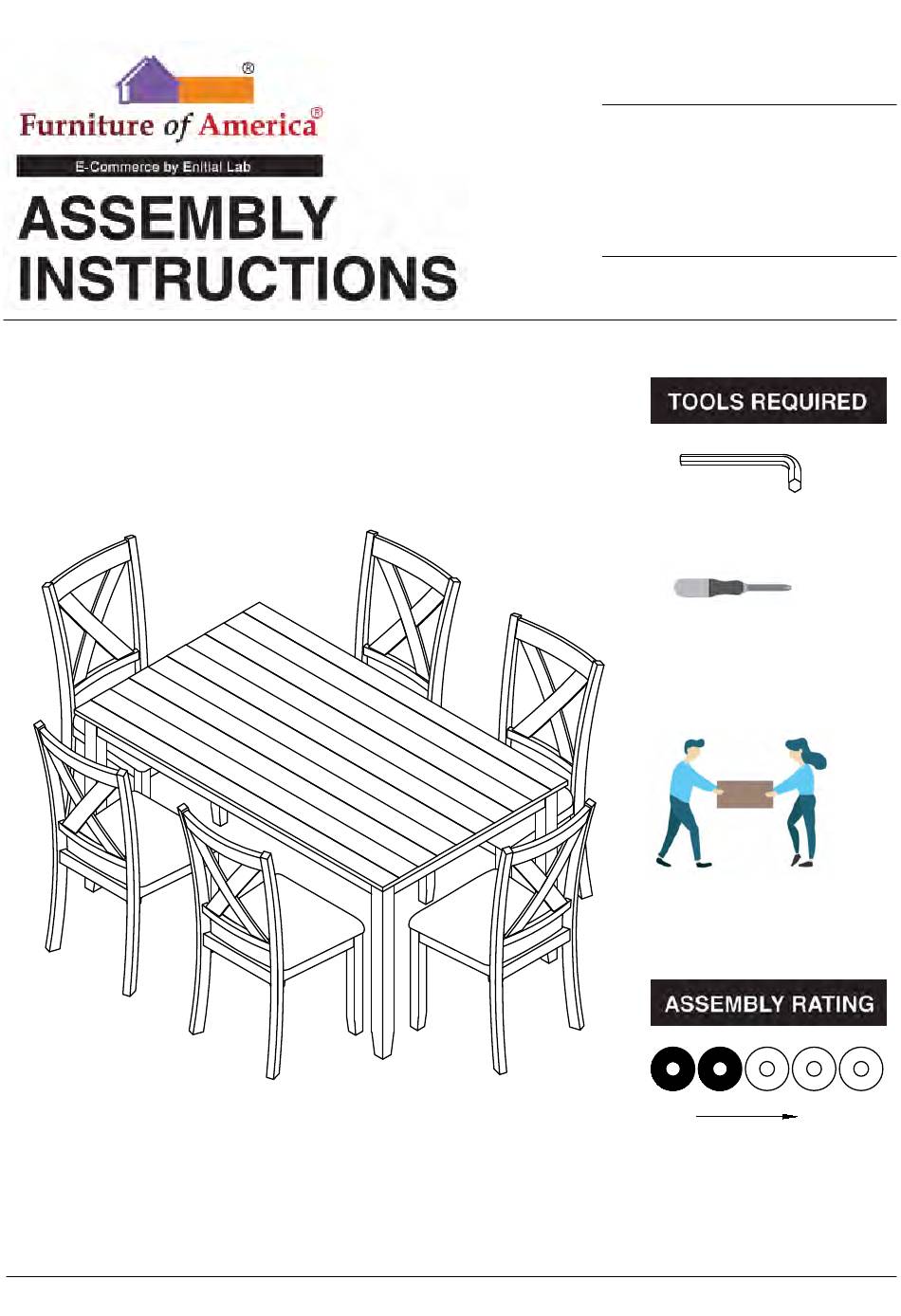

- Page 1 MODEL # CM3476T-7PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 8...
- Page 5 TABLE SET CM3476T- 7 PK #1 1pc #2 4pcs #3 6 pcs #4 6 pcs Table Top Table Leg Chair Back Seat #5 12 pcs Front Leg #A 8pcs #B 8pcs #C 8pcs #D 24pcs Bolt Ø 5/16"x 2-3/8" Lock Washer Ø 5/16" Flat Washer Ø...
- Page 6 Exploded View 6 / 8...
- Page 7 ASSEMBLY INSTRUCTIONS Align table legs (#2) to the table top (#1), then secure by using bolts (#A) with washers (#B,C). Part #1 x 1pc Part #2 x 4pcs Hardware #A x 8pcs Hardware #B x 8pcs #C #B #A Hardware #C x 8pcs Part #4 x 6pcs...
- Page 8 ASSEMBLY INSTRUCTIONS Part #3 x 6pcs Align seat (#4) to the chair back (#3), then Hardware #E x 12pcs secure by using bolts (#E) with washers (#G,H). Hardware #G x 12pcs Hardware #H x 12pcs Hardware #D x 24pcs Hardware #G x 24pcs Secure seat (#4) onto chair back (#3) by Hardware...
