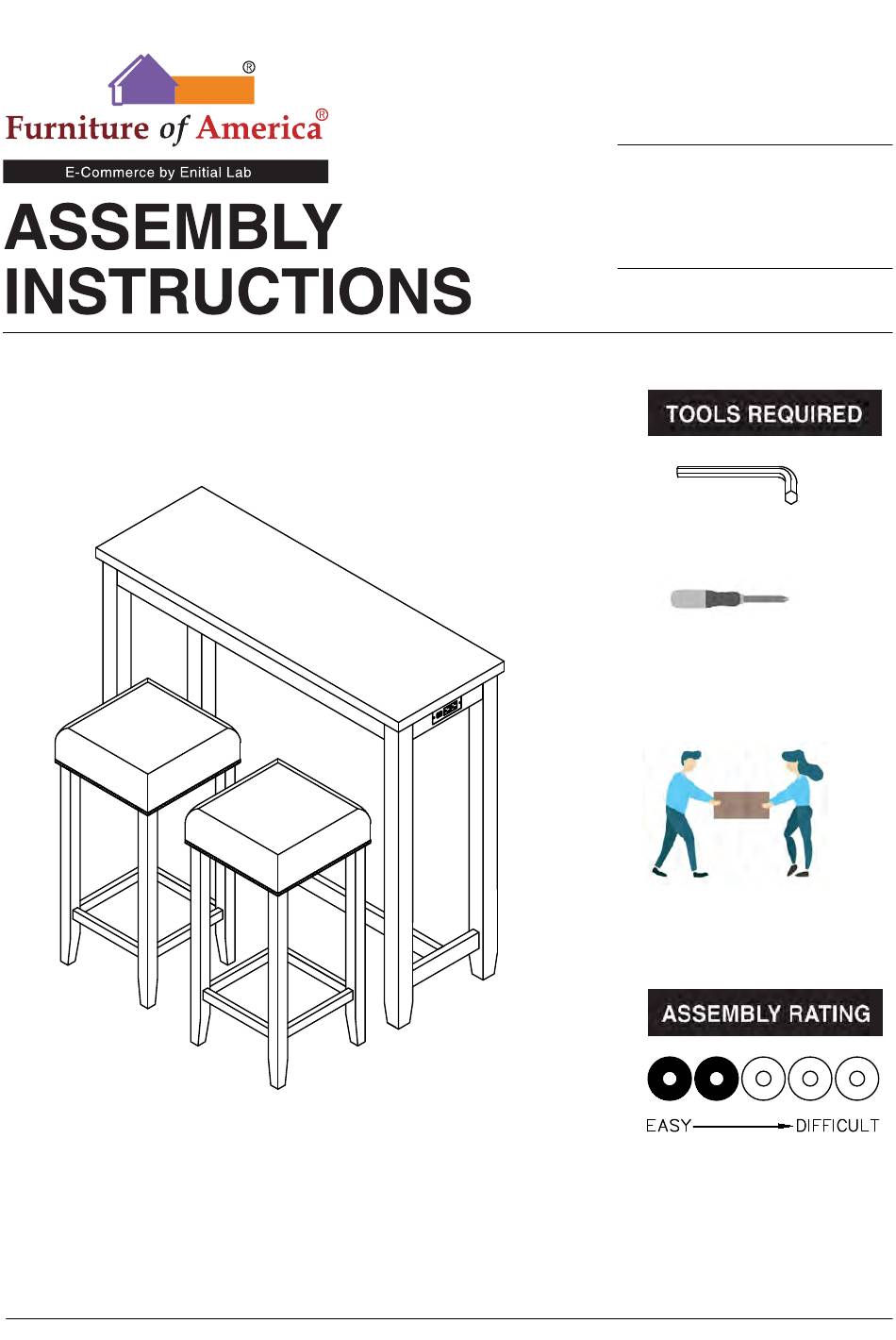

VERSION # 20-10-09
1 / 9
MODEL #
CM3474PT-3PK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
Advertisement
Related Manuals for Furniture of America Caerleon CM3474PT-3PK
Summary of Contents for Furniture of America Caerleon CM3474PT-3PK
- Page 1 MODEL # CM3474PT-3PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product. VERSION # 20-10-09 1 / 9...
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 9...
- Page 5 TABLE SET CM3474PT-3PK #1 1pc #2 4pcs #3 2pcs #4 1pc Leg (L/R) Side Stretcher Table Top Center Stretcher #6 4pcs x2 #5 1pc x2 #7 4pcs x2 Leg (L/R) Bar Stool Seat Stretcher #A 8pcs #C 24pcs #D 24pcs #B 16pcs Bolt Bolt...
- Page 6 6 / 9...
- Page 7 ASSEMBLY INSTRUCTIONS Part Align legs (#2L/R) to the top (#1), then #1 x1pc secure by using bolts (#A) with washers Part #2 x4pcs # 2R (#C,D). Hardware #A x8pcs Hardware #C x8pcs Hardware #D x8pcs #2 L #2 L #2 R Align stretchers (#3) to the legs (#2), then secure by using screws (#G).
- Page 8 ASSEMBLY INSTRUCTIONS Align plate (#F) to the stretchers Part (#3,4), then secure by using screws #4 x 1pc (#H). Hardware #F x2pcs Hardware #H x6pcs Part #5 x1pc Part #6 x4pcs Align legs (#6L/R) to the seat (#5), then secure Hardware #B x8pcs by using bolts (#B) with washers (#C,D).
- Page 9 ASSEMBLY INSTRUCTIONS Align stretchers (#7) to the legs (#6), then secure by using screws (#G). Part #7 x4pcs Hardware #G x8pcs 9 / 9...
