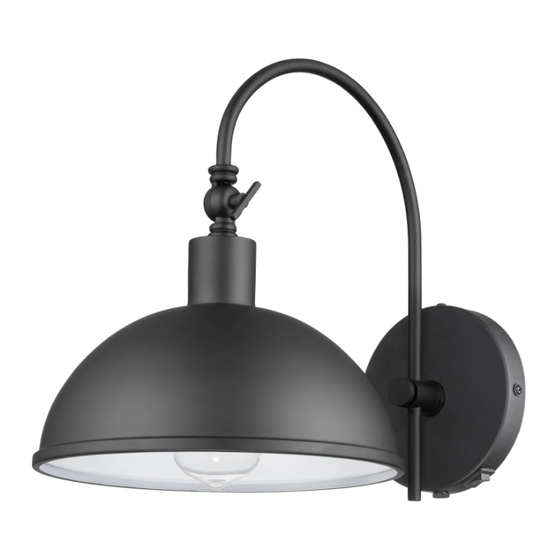

WALL SCONCE
1
RATED FOR
DAMP
LOCATIONS
ITEM #4968584
MODEL #42619
Español p. 13
Advertisement
Related Manuals for Allen + Roth 42619
Summary of Contents for Allen + Roth 42619
- Page 1 • sophisticated • inspiring RATED FOR DAMP LOCATIONS ITEM #4968584 ALLEN + ROTH and logo design are trademarks WALL SCONCE or registered trademarks of LF, LLC. All rights reserved. MODEL #42619 ATTACH YOUR RECEIPT HERE Español p. 13 Purchase Date _________________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 866-439-9800, 8 a.m.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents..............3 Hardware Contents. -
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Fixture Metal Shade Adjustment Knob Switch (preassembled to Fixture [A]) Wall Plate (preassembled to Fixture [A]) Mounting Screw (preassembled to Wall Plate [E]) Power Cord (preassembled to Fixture [A]) Plug (preassembled to Power Cord [G]) Grommet (preassembled to Fixture [A]) (not drawn to scale) HARDWARE CONTENTS... -
Page 4: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. Failure to do so could lead to electrical shock, fire or other injuries that could be hazardous or even fatal. • Before you begin installing the light fixture, disconnect the power by removing fuses or turning off the circuit breakers. -
Page 5: Assembly Instructions For Plug-In Installation
ASSEMBLY INSTRUCTIONS FOR PLUG-IN INSTALLATION 1. Turn off the circuit breakers and the wall switch to the supply line leads. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. 2. This fixture has two options for installation. To install the fixture using the plug-in method, continue to the next step. - Page 6 ASSEMBLY INSTRUCTIONS FOR PLUG-IN INSTALLATION 4. Align the keyhole slots on the wall plate (E) with the screws (AH) on the wall and then gently push the wall plate (E) against the wall and slide down until secure. 5. Install medium-base (E26) bulb (sold separately) in socket of fixture (A).
- Page 7 ASSEMBLY INSTRUCTIONS FOR PLUG-IN INSTALLATION 7. The direction of the metal shade (B) can be changed using the adjustment knob (C). Note: Metal shade may get hot during operation. Ensure the shade is cool before adjusting the shade.
-
Page 8: Assembly Instructions For Hardwire Installation
ASSEMBLY INSTRUCTIONS FOR HARDWIRE INSTALLATION 1. Turn off the circuit breakers and the wall switch to the supply line leads. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. 2. This fixture has two options for installation. To install the fixture using the hardwire method, continue to the next step. - Page 9 ASSEMBLY INSTRUCTIONS FOR HARDWIRE INSTALLATION 4. Use the two mounting bracket screws (RR) to attach the mounting bracket (FF) to the outlet box (sold separately). Note: Ensure two mounting bracket tabs are parallel to the horizon. Hardware Used Mounting Bracket Mounting Outlet Bracket Screw...
- Page 10 ASSEMBLY INSTRUCTIONS FOR HARDWIRE INSTALLATION 7. Remove the hex nut preassembled to plug button (EE). Then insert the plug button (EE) through grommet (I) and secure with the hex nut. Hardware Used Plug Button Hex Nut 8. Make the following wire connections using the wire connectors preassembled to the fixture (A) wires: Bare/Green Copper...
- Page 11 ASSEMBLY INSTRUCTIONS FOR HARDWIRE INSTALLATION 10. Install medium-base (E26) bulb (sold separately) in socket of fixture (A). Important: Make sure you allow the bulbs and fixture (A) to cool before you replace the bulb. Assembly is complete. Turn ON the electrical power at the main fuse or circuit breaker.
-
Page 12: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Bulb will not light. 1. Fixture may be wired 1. Check wiring. incorrectly. 2. Replace bulb. 2. Worn or broken bulb. 3. Ensure switch is in ON position. ONE-YEAR LIMITED WARRANTY The manufacturer warrants all of its lighting fixtures against defects in materials and workmanship for one (1) year from the date of purchase.
