ALLEN + ROTH and logo design are
trademarks or registered trademarks of LF, LLC.
All rights reserved.
ATTACH YOUR RECEIPT HERE
Purchase Date _________________________
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also
contact us at partsplus@lowes.com.
SC22229
welcoming • sophisticated • inspiring

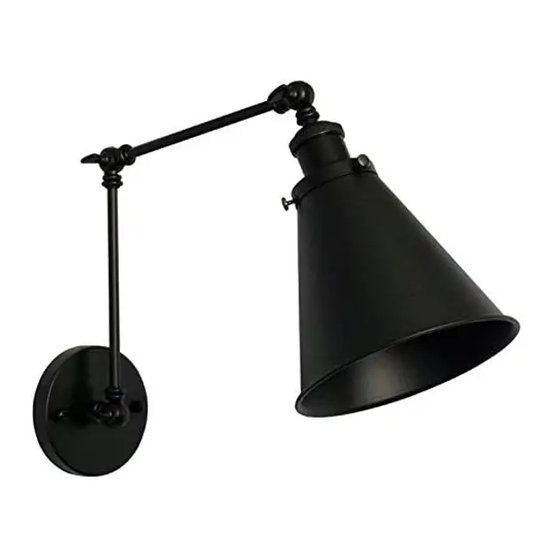

WALL SCONCE
1
RATED FOR
DAMP
LOCATIONS
ITEM #5024112, 5134416
MODEL #42626, 42826
Español p. 13
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Allen + Roth 42626
Summary of Contents for Allen + Roth 42626
- Page 1 • sophisticated • inspiring RATED FOR DAMP LOCATIONS ITEM #5024112, 5134416 ALLEN + ROTH and logo design are WALL SCONCE trademarks or registered trademarks of LF, LLC. All rights reserved. MODEL #42626, 42826 ATTACH YOUR RECEIPT HERE Español p. 13...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents..............3 Hardware Contents. -
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Fixture Shade Socket Ring Switch (preassembled to Fixture [A]) Wall Plate (preassembled to Fixture [A]) Mounting Screws (preassembled to Wall Plate [E]) Power Cord (preassembled to Fixture [A]) Plug (preassembled to Power Cord [G]) Grommet (preassembled to Fixture [A]) Adjustment Knob (preassembled to Fixture [A]) (not drawn to scale) HARDWARE CONTENTS... -
Page 4: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. Failure to do so could lead to electrical shock, fire or other injuries that could be hazardous or even fatal. • Before you begin installing the light fixture, disconnect the power by removing fuses or turning off the circuit breakers. -
Page 5: Assembly Instructions For Plug-In Installation
ASSEMBLY INSTRUCTIONS FOR PLUG-IN INSTALLATION 1. Turn off the circuit breakers and the wall switch to the supply line leads. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. 2. This fixture has two options for installation. To install the fixture using the plug-in method, continue to the next step. - Page 6 ASSEMBLY INSTRUCTIONS FOR PLUG-IN INSTALLATION 4. Align the keyhole slots on the wall plate (E) with the screws (AH) on the wall and then gently push the wall plate (E) against the wall and slide down until secure. 5. Turn socket ring (C) counterclockwise to remove from the socket of fixture (A).
- Page 7 ASSEMBLY INSTRUCTIONS FOR PLUG-IN INSTALLATION 7. Insert plug preassembled to power cord (G) into nearby electrical outlet and move switch on underside of fixture (A) to ON position. Switch 8. The direction of the shade (B) can be changed using the three adjustment knobs (J).
-
Page 8: Assembly Instructions For Hardwire Installation
ASSEMBLY INSTRUCTIONS FOR HARDWIRE INSTALLATION 1. Turn off the circuit breakers and the wall switch to the supply line leads. DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death. 2. This fixture has two options for installation. To install the fixture using the hardwire method, continue to the next step. - Page 9 ASSEMBLY INSTRUCTIONS FOR HARDWIRE INSTALLATION 4. Use the two mounting bracket screws (RR) to attach the mounting bracket (FF) to the outlet box (sold separately). Note: Ensure two mounting bracket tabs are parallel to the horizon. Hardware Used Mounting Bracket Mounting Outlet Bracket Screw...
- Page 10 ASSEMBLY INSTRUCTIONS FOR HARDWIRE INSTALLATION 7. Remove the hex nut preassembled to plug button (EE). Then insert the plug button (EE) through grommet (I) and secure with the hex nut. Hardware Used Plug Button Hex Nut 8. Make the following wire connections using the wire connectors preassembled to the fixture (A) wires: Bare/Green Copper...
- Page 11 ASSEMBLY INSTRUCTIONS FOR HARDWIRE INSTALLATION 10. Turn socket ring (C) counterclockwise to remove from the socket of fixture (A). Place shade (B) over socket and secure with socket ring (C) by turning in a clockwise direction. 11. Install medium-base (E26) bulb (sold separately) in socket of fixture (A).
-
Page 12: Troubleshooting
ASSEMBLY INSTRUCTIONS FOR PLUG-IN INSTALLATION 13. The direction of the shade (B) can be changed using the three adjustment knobs (J). TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Bulb will not light. 1. Fixture may be wired 1. Check wiring. incorrectly. 2.
