ASCII Server – BACnet Client
TM
Intesis

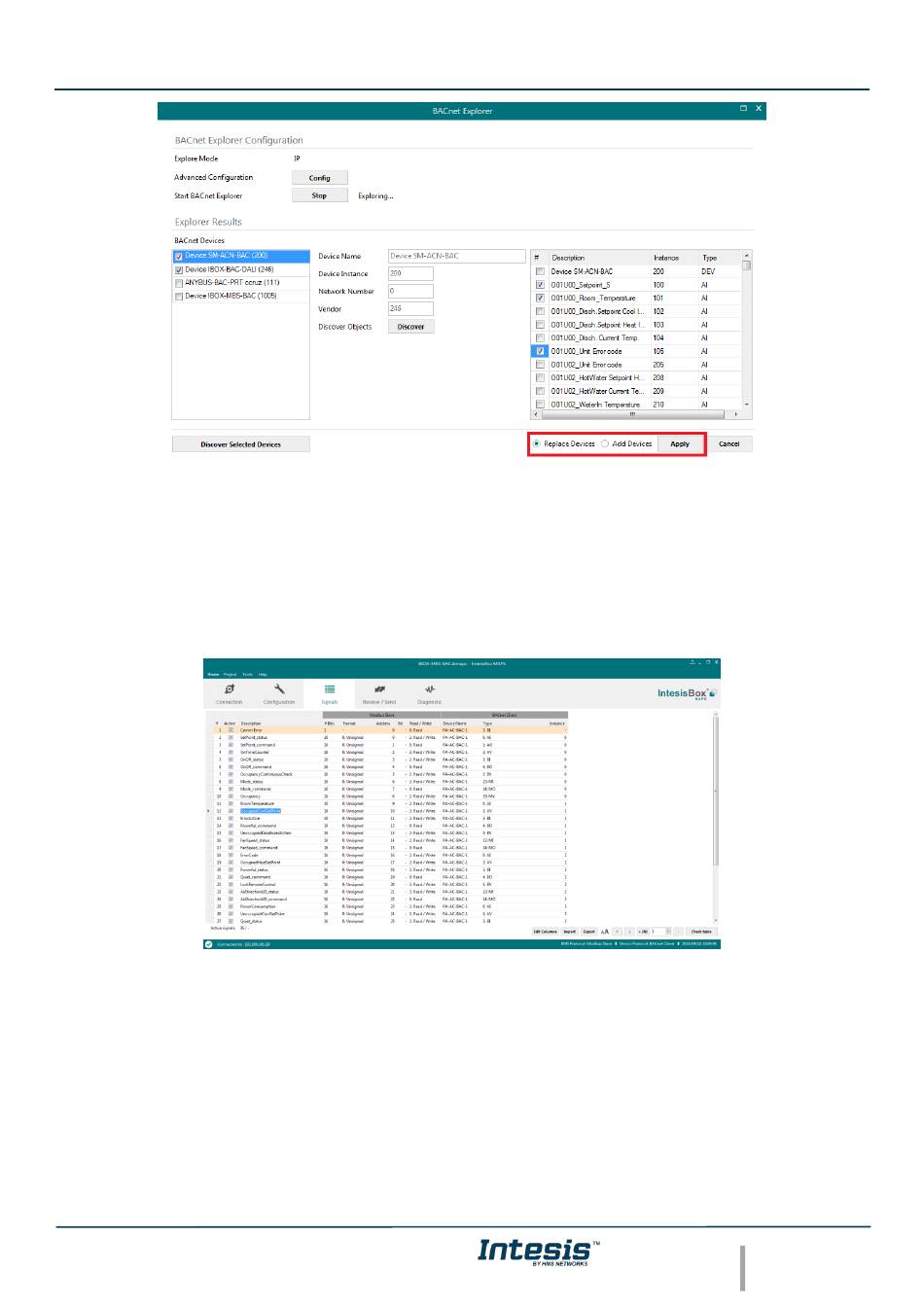

Figure 5.12 Apply button and selection on whether Replace or Add Devices
Apply button must be pressed then to transfer the results to the signals tab of the configuration.
5.2.4 Signals
All available objects, Object Instances, its corresponding ASCII register and other main parmaters are listed in the
signals tab. More information on each parameter and how to configure it can be found in the Intesis MAPS user manual
for ASCII.
5.2.5 Sending the configuration to Intesis
When the configuration is finished, follow the next steps.
1.- Save the project (Menu option Project->Save) on your hard disk (more information in Intesis MAPS User
Manual).
2.- Go to tab 'Receive / Send' of MAPS, and in Send section, press Send button. Intesis will reboot
automatically once the new configuration is loaded.
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
Figure 5.13 Intesis MAPS Signals tab
User Manual r1.1 EN
URL
https://www.intesis.com
24 / 28
