ASSEMBLY
INSTRUCTIONS
Thank you for purchasing this quality product. Place all wooden parts on a clean and smooth surface such
as a rug or carpet to avoid the parts from being scratched. Be sure to check all packing materials carefully
for small parts may have come loose inside the carton during shipment, clarify and count all parts and
compare with the parts list below. Do not tighten all screws / bolts until all completely assembled.
Parts List
No.
Description
A
Metal Frame
B
Panel Top
C
Middle Shelf
D
Bottom Shelf
E
Top Stretchers
F
Upper Stretchers
G
Lower Stretchers
Two people are recommended in order to
prevent personal injury and insure the parts
are not damaged during the assembly.
A
Cleaning instruction: Clean using soft cloth
Q.ty
No. Description
2PCS
1
1PC
2
1PC
3
1PC
4
2PCS
5
2PCS
6
2PCS
E
F
G
Hardware List
Allen Key
Allen Bolt
Spring Washer
Flat Washer
Screws
Anti-Tipping Kit
NOTE : YOU WILL ALSO NEED A PHILLIPS
SCREWDRIVER (NOT PROVIDED)
C
Page 1-3
ITEM NO.:T365-05

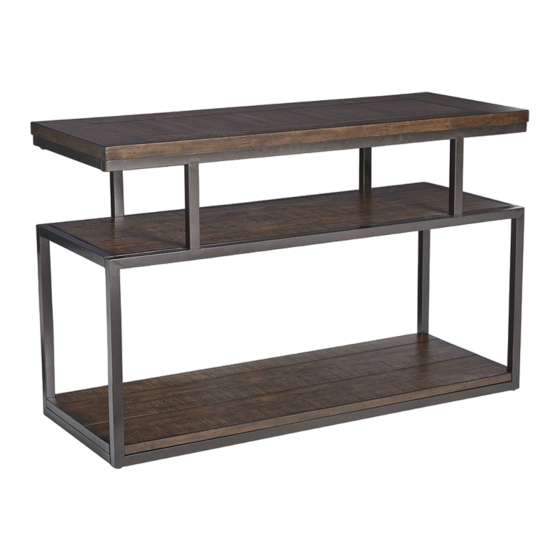

Sofa / Console Table
Size
Sketch
M4
1/4 x 18mm
Ø12 x 1/4 x 1mm
Ø16 x 1/4 x 2mm
#4 x 20mm
B
E
F
G
Made in VietNam
T366-05
Q.ty
1 pc
24pcs
24pcs
24pcs
16pcs
1 SET
A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Progressive T365-05
Summary of Contents for Progressive T365-05
- Page 1 ITEM NO.:T365-05 ASSEMBLY T366-05 INSTRUCTIONS Sofa / Console Table Thank you for purchasing this quality product. Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched. Be sure to check all packing materials carefully for small parts may have come loose inside the carton during shipment, clarify and count all parts and compare with the parts list below.
- Page 2 ITEM NO.:T365-05 ASSEMBLY T366-05 INSTRUCTIONS Sofa / Console Table STEP 1: Bolt (2) x 12 STEP 2: STEP 3: Bolt (2) x 4 Bolt (2) x 6 Cleaning instruction: Clean using soft cloth Made in VietNam Page 2-3...
- Page 3 ITEM NO.:T365-05 ASSEMBLY T366-05 INSTRUCTIONS Sofa / Console Table STEP 4: Screw (5) x 8 STEP 5: Screw (5) x 8 STEP 6: Adj. Leveler Cleaning instruction: Clean using soft cloth Made in VietNam Page 3-3...
