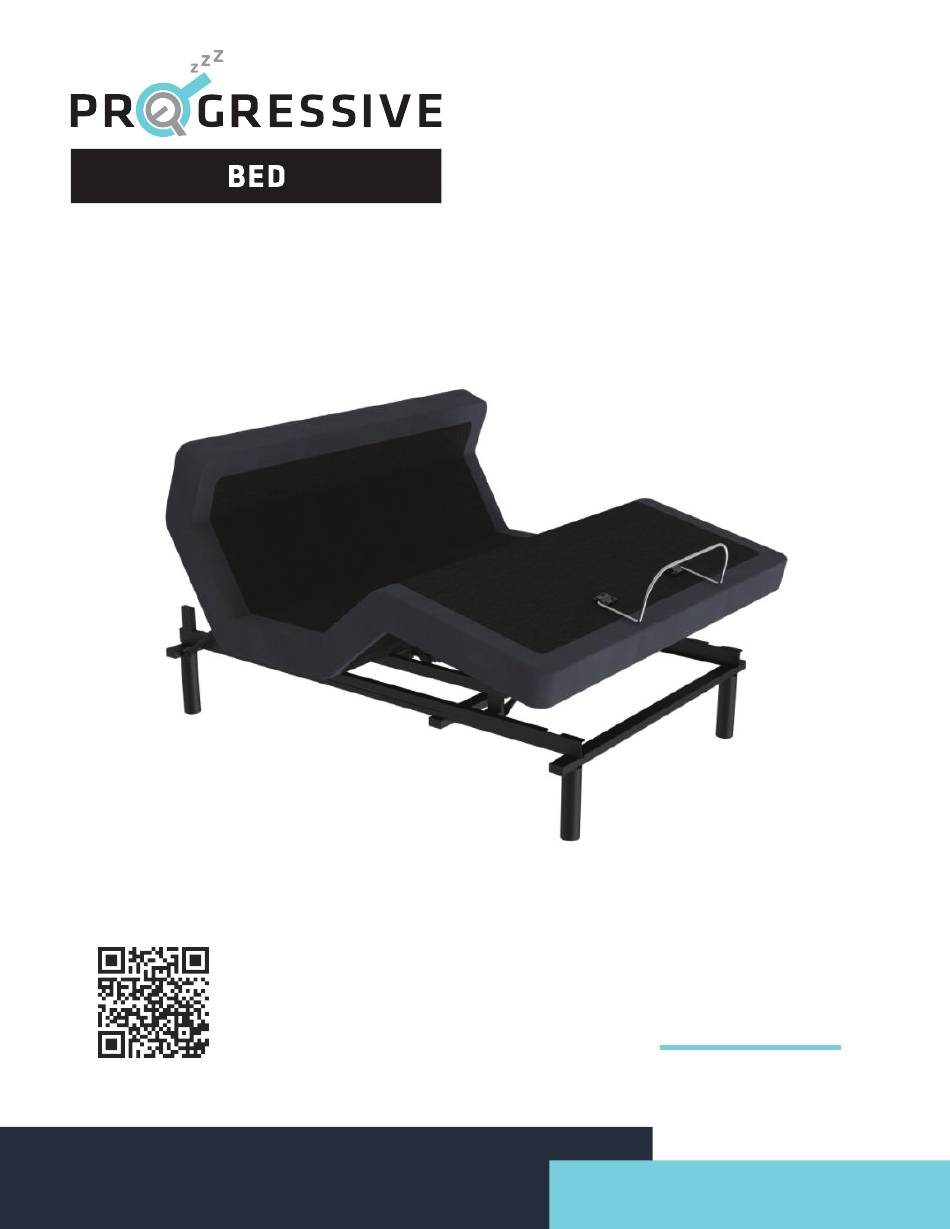

- Page 1 DRIFT ELITE User Manual Scan for more information V 1.5...
-
Page 2: Table Of Contents
Table of Contents Safety Warnings Specifications Dimensional Drawing Parts List Assembly Controls Guide Wireless Remote Troubleshooting Have any queries? Our expert engineers are here to help! sales@progressivebed.com progressivebed.com 1-800-828-9381 P a g e | 2... -
Page 3: Safety Warnings
WARRANTY Opening or tampering with the components and operating outside of the advertised operating weight limits will void the warranty. Please refer to the warranty page on the Progressive Bed website for more information on warranty. CHILDREN AND PETS 1. Close supervision is necessary when the adjustable bed is under operation around children, pets, or those with certain disabilities. - Page 4 14. Do not exceed the maximum weight limit mentioned in product specifications for each model. INDOOR HOUSEHOLD USE ONLY 1. This Progressive Bed product is designed for indoor and household use only. Not for hospital or commercial use and is not designed to meet hospital standards.
-
Page 5: Specifications
Specifications Adjustments Neck (max 50°), Head (max 60°), Leg (max 40°) Underbed Lighting Built-In LED Massage Back & Leg Wall Hugger Mechanism USB Port 1x for Twin XL, 2x for Queen Remote Wireless - 15 Buttons Remote One-Touch Positions 2x Programmable Positions, Zero Gravity, Anti-Snore, Flat Adjustable Leg Options 3”... -
Page 6: Dimensional Drawing
Dimensional Drawing All dimensions are in inches. King and Split King adjustable beds use 2x Twin XL beds, side-by-side. TOP VIEW SIDE VIEW END VIEW P a g e | 6... -
Page 7: Parts List
Parts List Important: The diagrams illustrated are for instructional reference only and may vary from the actual product. Please contact us if you have any missing or damaged components. PARTS LIST 2 x 9v 3 x AAA Batteries Batteries (not (included) included) Mattress... - Page 8 PARTS CONNECTION MAP P a g e | 8...
-
Page 9: Assembly
Assembly Note: Two people are required to assemble the adjustable bed. Please contact our customer service team for missing or damaged components as well as installation and troubleshooting. STEP 1: IDENTIFY BED CONFIGURATION Depending on the desired configuration, please reference the table below for the parts required for each. King and Split King Configuration: Consists of two Twin XL adjustable beds combined. - Page 10 Left Bracket Assembly Right Bracket Assembly Left Headboard T Bracket Right Headboard T Bracket Bracket Mount Bracket Mount Step C: Assemble both Left and Right Headboard Bracket Assemblies Using the provided Tools, repeat the Bolt Assembly instructions twice per Headboard Bracket as shown below. Use the Completed Headboard Bracket Assembly Diagrams for reference.
- Page 11 Tools Repeat assembly twice M10x25 Button Head Socket M10 Washer 6mm Hex Key Screws STEP 4: BED HEIGHT CONFIGURATION Based on your surface, clearance, and bed height preference; identify the desired Bed Height Configuration. Height Under-Bed Clearance Headboard Brackets Under-Bed Clearance Bed Height Configuration Surface...
- Page 12 STEP 5: INSTALL ADJUSTABLE LEGS Note: Installing the Adjustable Leg is necessary to prevent obstructing the motors and other frame components. Install the four Adjustable Legs (3”, 6”, or 3” + 6”) by hand onto the adjustable bed frame in the locations shown on the diagram below.
- Page 13 STEP 8: SETUP CONTROL AND POWER SYSTEM Connect the Control Box Power Cord, Power Supply, and AC Power Cord together before connecting to an appropriate AC Power Source. STEP 9: KING AND SPLIT KING CONFIGURATION SETUP Please refer to this table to determine your desired configuration and proceed with the appropriate instructions. Bluetooth Headboard Wireless...
- Page 14 ii. Triplex Connector: three wires are visible within the transparent connector at the end of the Sync Cord. b. Between the two adjustable bed Control Boxes, identify the Control Box that would likely have better reception to the Wireless Remote and/or Bluetooth paired mobile device. This will be the Primary Control Box. c.
- Page 15 Step E: Attach the T Bracket to the Headboard Use at least two screws to attach the T bracket to a secure part of your existing headboard. Do not tighten as a final adjustment will be required. Repeat for both Headboard Brackets. Step F: Finalize adjustable bed position 1.
-
Page 16: Controls Guide
Controls Guide WIRELESS REMOTE PAIRING 1. Unplug the system from the AC power source. 2. Plug the system back into the AC power source. 3. Within 30 seconds of powering the system, press and hold the Head Up button and Leg Up button on the Wireless Remote until you hear a BEEP sound from the Control Box. -
Page 17: Wireless Remote
Drift Elite 15 Button Wireless Remote Adjustment Buttons Stop Massage Hold the button to move the adjustable bed to the desired position. Back Massage Leg Massage • Neck Up/Down: Raises and lowers the neck section Head Up of the adjustable bed. -
Page 18: Troubleshooting
Troubleshooting Category Problem Solution King Configuration Unresponsive • Complete the ‘Soft Reset Procedure for King Configuration’ located on adjustable bed. page 16. • Complete the ‘Hard Reset Procedure’ located on page 16. • Complete the ‘Wireless Remote Pairing‘ instruction located on page 16. •...
