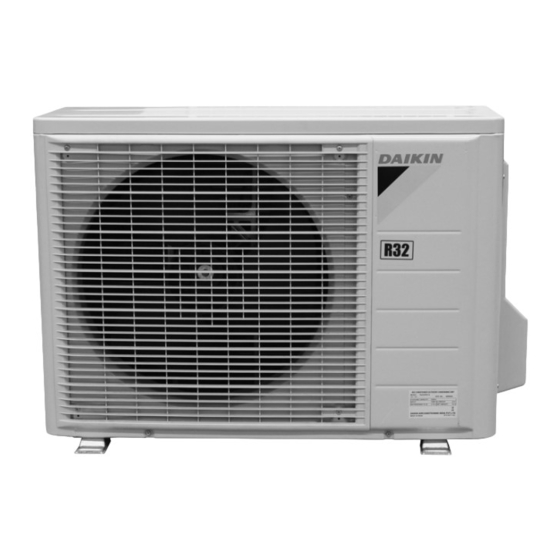

- Page 1 Si011404EC REMOVAL PROCEDURE S E R V I C E M A N U A L 2.5/3.5 kW Class Outdoor Unit Non-Inverter Pair Type...
- Page 2 Service Manual Removal Procedure Outdoor Unit Cooling Only RC35PRV16 RF35PRV16 RQ35PRV16 RC25QRV16 RF35QRV16 RQ35QRV16 RC35QRV16 RF35QRV161 RQ35QRV1625 RC35QRV161 RF35QRV1625 RC35QRV1615 RQ35RRV162 RF35RRV161 RQ35RRV1625 RC25RRV162 RF35RRV1615 RC35RRV161 RQA35QRV16 RC35RRV1615 RFA35QRV16 RQA35RRV162 RCA25QRV16 RFA35RRV161 RCA35QRV16 RQD35QRV16 RFD35QRV16 RCA25RRV162 RQD35RRV162 RCA35RRV161 RFD35RRV161 RUF35RRV161...
- Page 3 Si011404EC Table of Contents 1. Outer Panels / Fan Motor / Electrical Components.........2 2. Sound Blanket / Partition Plate ...............8 3. Capillary Tube ..................9 4. Compressor ASSY ................10 Note: The illustrations may be slightly different depending on the model. Removal Procedure...
-
Page 4: Outer Panels / Fan Motor / Electrical Components
Outer Panels / Fan Motor / Electrical Components Si011404EC 1. Outer Panels / Fan Motor / Electrical Components Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points 1. - Page 5 Si011404EC Outer Panels / Fan Motor / Electrical Components Step Procedure Points Remove the 4 screws, and then the discharge grille. Discharge (R16335) grille The discharge grille has 4 hooks. Discharge grille (R20106) Remove the 7 screws of the front panel. (R20107) Front panel Unfasten the 4 hooks...
- Page 6 Outer Panels / Fan Motor / Electrical Components Si011404EC Step Procedure Points 2. Remove the fan motor. Nut size: M6 Remove the nut, and then the outdoor fan. 10 mm (0.39 inch) (R18954) Align the mark of the outdoor fan with the D-cut (R20109) Outdoor fan section of the motor shaft...
- Page 7 Si011404EC Outer Panels / Fan Motor / Electrical Components Step Procedure Points Release the fan motor Some models do not have a Fan motor Hook Groove lead wire from the hook. lead wire groove and the hook. When reassembling, put the fan motor lead wire through the back of the fan motor to avoid any entanglement with...
- Page 8 Outer Panels / Fan Motor / Electrical Components Si011404EC Step Procedure Points Pull out the 3 terminals and remove the capacitor. Capacitor (R20117) from compressor (S): red from compressor (R): blue from terminal (2): blue Capacitor (C1) (R23475) Remove the 3 screws, Terminal board and then the wire fixture.
- Page 9 Si011404EC Outer Panels / Fan Motor / Electrical Components Step Procedure Points Remove the screw, and then the terminal board. Terminal board (R20131) from compressor (C): white earth/ground wire: from capacitor (C1): green/yellow blue Terminal board (X1M) (R23476) 4. Remove the right side panel.
-
Page 10: Sound Blanket / Partition Plate
Sound Blanket / Partition Plate Si011404EC 2. Sound Blanket / Partition Plate Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Step Procedure Points Remove the sound Some models have sound blanket. -
Page 11: Capillary Tube
Si011404EC Capillary Tube 3. Capillary Tube Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine. -
Page 12: Compressor Assy
Compressor ASSY Si011404EC 4. Compressor ASSY Warning Be sure to wait for 10 minutes or more after turning off all power supplies before disassembling work. Be careful not to get yourself burnt with the pipes and other parts that are heated by the gas brazing machine. - Page 13 Si011404EC Compressor ASSY Step Procedure Points Disconnect the compressor lead wires. Gasket Remove the gasket. (R20126) Pattern 1: Pattern 2: C (U): white, S (V): red, R (W): blue C (U): white, S (V): red, R (W): blue (R20989) (R20298) Pattern 4: Pattern 3: C (U): white, S (W): red, R (V): blue...
- Page 14 Compressor ASSY Si011404EC Step Procedure Points Remove the putty. Some models do not have the putty. Putty Heat up the brazed part of the discharge side pipe and disconnect. Heat up the brazed part of the suction side pipe and disconnect. Brazed part Remove the 3 nuts of...
- Page 15 Revision History Month / Year Version Revised contents 04 / 2014 Si011404E First edition 10 / 2014 Si011404EA Model addition: RF35PRV16 12 / 2015 Si011404EB Model addition: RC25/35QRV16, RC35QRV161, RCA25/35QRV16, RCD25/35QRV16, RF35QRV16, RF35QRV161, RFA35QRV16, RFD35QRV16, RQ35QRV16, RQA35QRV16, RQD35QRV16 06 / 2016 Si011404EC Model addition: RC35QRV1615, RC25RRV162, RC35RRV161, RC35RRV1615, RCA25RRV162, RCA35RRV161, RCD25RRV162, RCD35RRV161,...
- Page 16 Improper installation can result in water or refrigerant leakage, electrical shock, fire or explosion. Use only those parts and accessories supplied or specified by Daikin. Ask a qualified installer or contractor to install those parts and accessories. Use of unauthorised parts and accessories or improper installation of parts and accessories can result in water or refrigerant leakage, electrical shock, fire or explosion.
