Advantech AIMB-764 Startup Manual

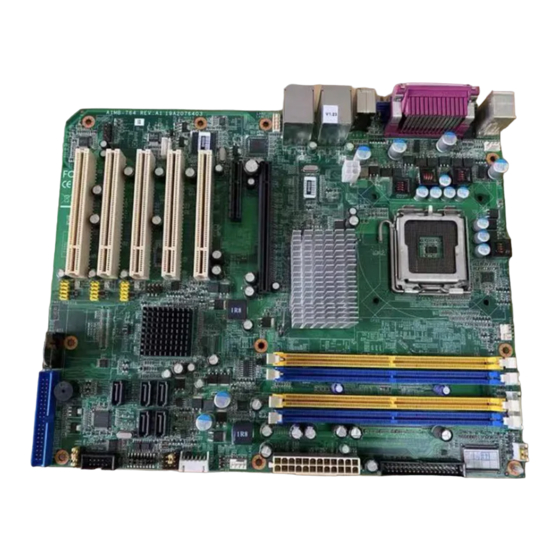

AIMB-764 Socket LGA 775 Intel
Pentium D/ Pentium 4/ Celeron D FSB 1066 MHz
Processor-based ATX Motherboard with PCIe,
DDR2, and Dual GbE
Startup Manual
Packing List
Before you begin installing your card, please make sure
that the following materials have been shipped.
• AIMB-764 Socket LGA 775 Intel
Pentium D/ Pentium 4/ Celeron D FSB 1066 MHz
Processor-based ATX Motherboard with PCIe,
DDR2, and Dual GbE
• 1 AIMB-764 Startup Manual
• 1 CD with driver Utility
• 1 FDD cable
• 1 Ultra ATA 66/100 HDD cable
• 2 Serial ATA HDD data cables
• 2 Serial ATA HDD power cables
• 1 COM port cable kit
• 1 I/O port bracket
• 1 jumper package
• 1 warranty card
If any of these items are missing or damaged, contact your
distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at:
www.adobe.com/Prodindex/acrobat/read-
step.html (Acrobat is a trademark of Adobe).
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the AIMB-764 Series Rev. A1.
Part No. 2002076410
1 AIMB-764 Startup Manual
®
TM
®
TM
Core 2 Duo/
p/n: 2002076410
p/n: 2066000E10
p/n: 1700340640
p/n: 1701400452
p/n: 1700003194
p/n: 1703150102
p/n: 1701090401
p/n: 1962015680
p/n: 9689000068
p/n: 2190000902
1st Edition
October 2007
Core
®
Specifications
Standard SBC Functions
®
• CPU: LGA775 Intel Core
®
tium D/ Celeron D
• BIOS: Award 16 Mb SPI BIOS
• FSB: 533/ 800/ 1066 MHz
• Chipset: Intel Q965 with ICH8DO
• System memory: Up to 8 GB four 240-pin DIMM sock-
ets. Supports dual channel DDR2 533/667/800 SDRAM.
Note: Due to the inherent limitations of PC architecture,
the system may not fully detect 8 GB RAM when
8 GB RAM is installed.
• SATA2 Interface: Five on-board serial ATA2 connectors
with a data transmission rate of up to 300 MB/s support-
ing Advanced Host Controller Interface (AHCI) technol-
ogy.
• IDE Interface: Supports PIO mode 4 (16.67 MB/s data
transfer rate) and ATA 33/66/100 (33/66/100 MB/s data
transfer rate) BIOS enabled/disabled.
• FDD interface: Supports one FDD
• Serial ports: Two serial ports, COM1 is RS-232; COM2
is RS-232/422/485
• Parallel port: One parallel port, supports SPP/EPP/ECP
mode
• Keyboard/mouse connector: Supports standard PS/2
keyboard and mouse
• Watchdog timer: 255 level timer intervals
• USB 2.0: Supports up to ten USB 2.0 ports
VGA Interface
• Chipset: Chipset integrated VGA controller
• Display Memory: Dynamically shared system memory
up to 256 MB
• Resolution: Up to 2048 x 1536 @ 75 Hz refresh rate
Ethernet interface
• Interface (Bold): 10/100/1000Base-T
• Controller: LAN1: Intel 82566DM; LAN2: Intel 82573L
Mechanical and Environmental
• Dimensions (L x W): 304.8 x 228.6 mm
• Power supply voltage: +3.3 V, +5 V,
• Power requirements: Maximum: +5 V at 3.10 A, +3.3 V
at 1.54 A, +12 V at 9.90 A (Intel Pentium D 3.2 GHz (800
MHz FSB), 4 x 1 GB DDR2 667 SDRAM)
• Operating temperature: 0 ~ 55° C (depending on CPU)
• Weight: 0.5 kg (weight of board)
2 Duo/
TM
®
TM
2 Duo/ Pentium 4/ Pen-
±
12 V
