Imported by
Amart Furniture
For any assistance with assembly or for missing parts please phone
Amart Furniture
2022-07-20
Pty Ltd, Qld, Brisbane Australia.
, Customer Service Free call 1800 351 084

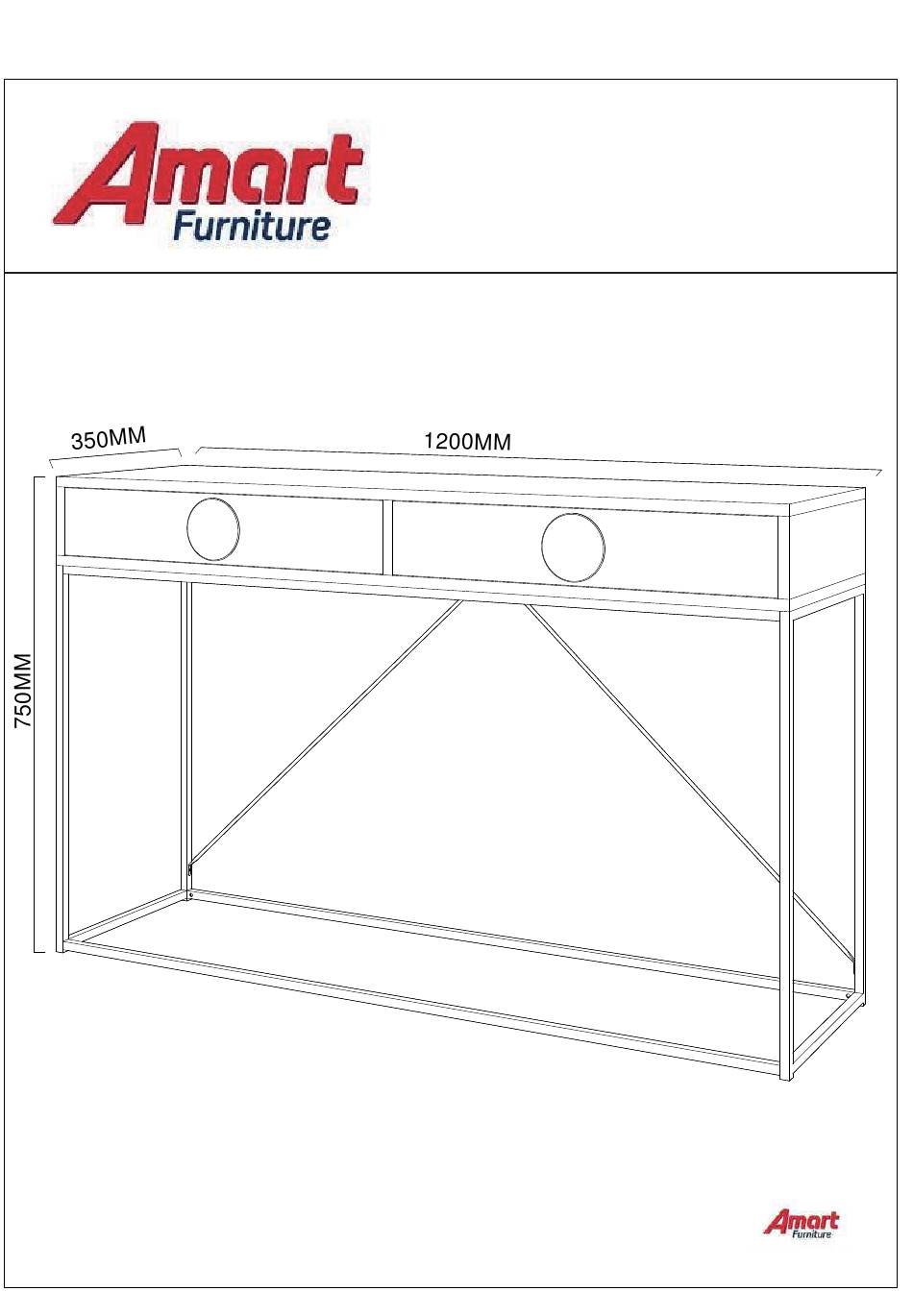

ASSEMBLY INSTRUCTION
VALKYRIE SOFA TABLE
74933
ITEM CODE
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture , Customer Service Free call 1800 351 084
1
74933
Item Code:
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture VALKYRIE 74933
Summary of Contents for Amart Furniture VALKYRIE 74933
- Page 1 ITEM CODE Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
- Page 2 74933 2022-07-20 Item Code:...
- Page 3 BACK PANEL TOP PANEL DRAWER FRONT PANEL x 2 LEFT SIDE PANEL RIGHT SIDE PANEL DRAWER LEFT SIDE PANEL x 2 DRAWER RIGHT SIDE PANEL x 2 BOTTOM PANEL MIDDLE PANEL DRAWER BACK PANEL x 2 TOP INNER METAL BAR DRAWER BOTTOM PANEL x 2 BOTTOM SUPPORT PANEL x 2 BOTTOM METAL BAR x 2...
- Page 4 CHECKLIST Before you start..1.Choose a clean,level,spacious assembly area. Avoid hard surfaces that may damage the product. 2.Check and ensure that you have all required contents for complete assembly. 3.Always read the assembly instructions carefully before beginning assembly. 4.The packaging and contents can be a choking hazard. Please keep out of reach of small children at all times.
- Page 5 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it. 74933 2022-07-20 Item Code:...
- Page 6 Fix cam bolts (A) to top panel①. STEP 1: Fix runner(M)(CL) to left side panel② using screws(L).Fix runner(M)(CR) STEP 2: to right side panel③ using screws(L). M(CL) M(CR) 74933 Item Code: 2022-07-20...
- Page 7 Fix runners（M）to middle panel⑤ using screws(L) as shown in below STEP 3: diagram. M(CL) M(CR) Attach left side panel②,middle panel⑤, right side panel③ to bottom STEP 4: panel④ using screws(D) and dowels(C). 74933 Item Code: 2022-07-20...
- Page 8 Insert back panel to the existing unit. STEP 5: STEP 6: Attach top panel① to the existing unit using cam locks(B) and dowels(C). 74933 Item Code: 2022-07-20...
- Page 9 Assemble the metal frame as shown in below diagram using allen key STEP 7: (G) and screws(K). STEP 8: Fix support metals⑧ to the existing metal frame using allen key(G) and screws(K). 74933 Item Code: 2022-07-20...
- Page 10 12xI 12xJ Attach the bottom metal frame to the body using allen key(G),screws(J) STEP 9: and washers(I). 10xA 10xB 12xF Assemble the drawers as shown in below diagram using cam bolts(A ), STEP 10: cam locks(B),screws(F), and screws(H). 74933 Item Code: 2022-07-20...
- Page 11 12xL STEP 11: Fix runners(M) to the drawers using screws(L). M(DR) M(DL) M(DR) M(DL) STEP 12: Place drawers to the existing unit. 74933 Item Code: 2022-07-20...
- Page 12 STEP 13: Fix plastic bracket(O) to back panel using screws(N). STEP 14: Fix wall anchor(E) onto the wall. WALL CAUTION：Always Lift Your Furniture When Moving /Relocating - Do Not Drag. Dragging Can Cause The Legs To Bend/Break. 74933 Item Code: 2022-07-20...
-
Page 13: Product Care
PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
