Imported by
Amart Furniture
For any assistance with assembly or for missing parts please phone
Amart Furniture
2022-07-20
Pty Ltd, Qld, Brisbane Australia.
, Customer Service Free call 1800 351 084
L
ASSEMB
Y INSTRUCTION

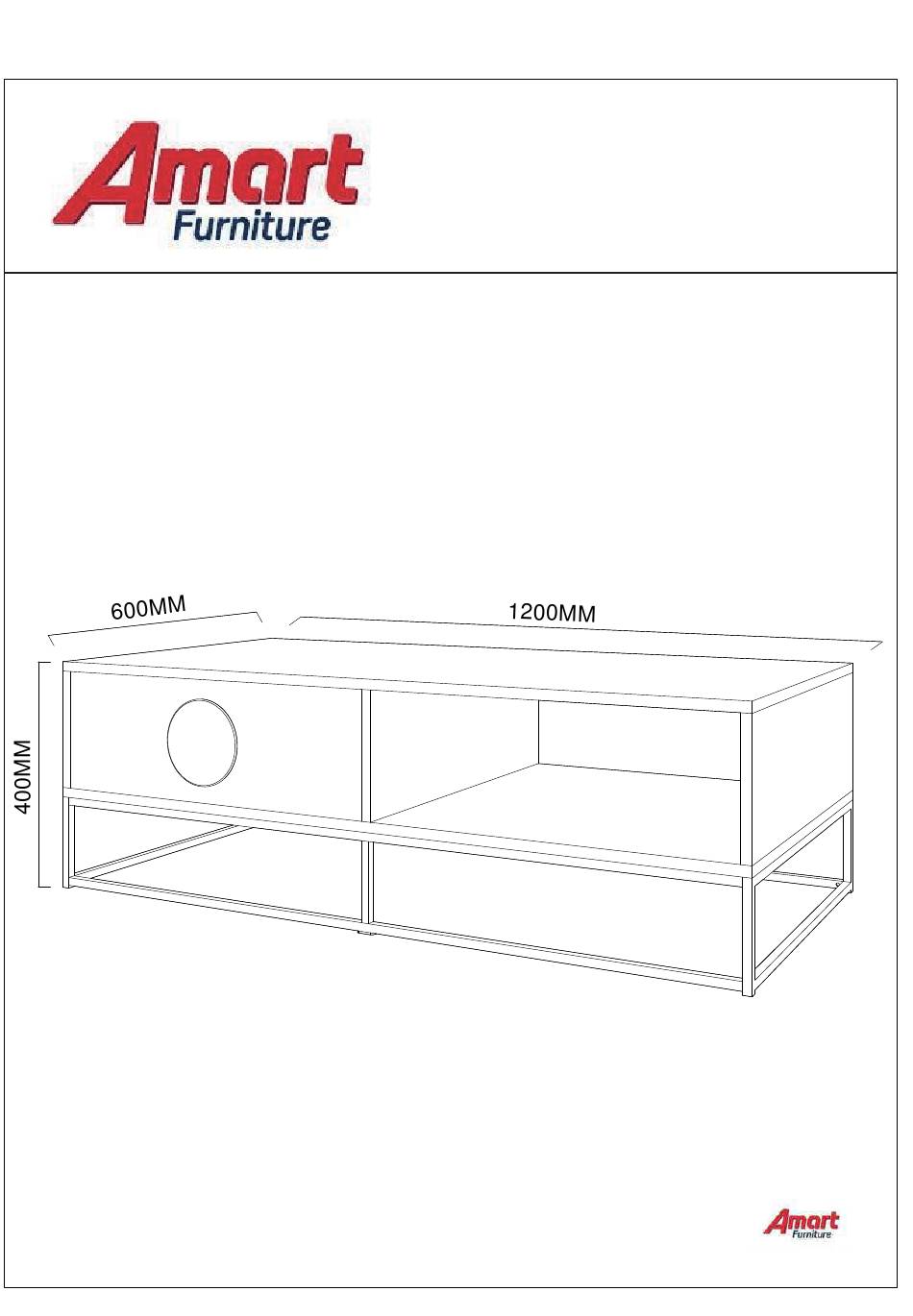

VALKYRIE COFFEE TABLE
74932
ITEM CODE
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture , Customer Service Free call 1800 351 084
1
74932
Item Code:
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture VALKYRIE 74932
Summary of Contents for Amart Furniture VALKYRIE 74932
- Page 1 ITEM CODE Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture , Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
- Page 2 74932 2022-07-20 Item Code:...
- Page 3 TOP PANEL WOODEN HANDLE x 2 LEFT SIDE PANEL DRAWER FRONT PANEL DRAWER FRONT PANEL RIGHT SIDE PANEL BOTTOM PANEL DRAWER LEFT SIDE PANEL DRAWER RIGHT SIDE PANEL MIDDLE PANEL DRAWER BACK PANEL TOP METAL BAR x 2 DRAWER BOTTOM PANEL BOTTOM METAL BAR x 2 BOTTOM SUPPORT PANEL METAL SUPPORT BAR x 2...
- Page 4 CHECKLIST Before you start..1.Choose a clean,level,spacious assembly area. Avoid hard surfaces that may damage the product. 2.Check and ensure that you have all required contents for complete assembly. 3.Always read the assembly instructions carefully before beginning assembly. 4.The packaging and contents can be a choking hazard. Please keep out of reach of small children at all times.
- Page 5 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it. 74932 2022-07-20 Item Code:...
- Page 6 Fix cam bolts (A) to top panel①. STEP 1: Fix runner(M)(CL) to left side panel② using screws(L).Fix cam bolts (A) STEP 2: to left side panel②. M(CL) 74932 Item Code: 2022-07-20...
- Page 7 STEP 3: Fix runner(M)(CR) to middle panel⑤ using screws(L).Fix cam bolts (A) to middle panel⑤ M(CR) Fix wooden handle⑩ to drawer front panel using screws(H). STEP 4: 74932 Item Code: 2022-07-20...
- Page 8 Attach left side panel②,middle panel⑤ to drawer front panel using STEP 5: cam locks(B). Attach the frame and right side panel③ to top panel① using cam locks STEP 6: (B) and dowels(C). 74932 Item Code: 2022-07-20...
- Page 9 STEP 7: Attach bottom panel④ to the existing unit using dowels(C) and screws (D). Attach top metal bar⑥, bottom metal bar⑦ and metal support bar⑧ STEP 8: using screws(O) and allen key(G). 74932 Item Code: 2022-07-20...
- Page 10 Paste stickers(N) to cover the screws. STEP 9: Attach metal legs⑨ to the existing metal frame using screws(K) and STEP 10: allen key(G). 74932 Item Code: 2022-07-20...
- Page 11 12xJ 12xI STEP 11: Attach bottom metal frame to the body using allen key(G),screws(J) and washers(I). STEP 12: Assemble the drawer as shown in below diagram using cam bolts(A ), cam locks(B),screws(F) and screws(H). 74932 Item Code: 2022-07-20...
- Page 12 Fix runner(M) to the drawer using screws(L). STEP 13: M(DL) M(DL) M(DR) M(DR) STEP 14: Place drawer to the existing unit. CAUTION：Always Lift Your Furniture When Moving /Relocating - Do Not Drag. Dragging Can Cause The Legs To Bend/Break. 74932 Item Code: 2022-07-20...
-
Page 13: Product Care
PRODUCT CARE: To protect your furniture,we suggest the following: *Avoid placing your furniture in direct sunlight. *Do not place furniture directly under windows. *Do not place sharp materials(knife,fork,etc) directly onto your furniture as sharp material may scrape and damage the finish. Do not place material with high temperature directly onto the surface of your furniture.
