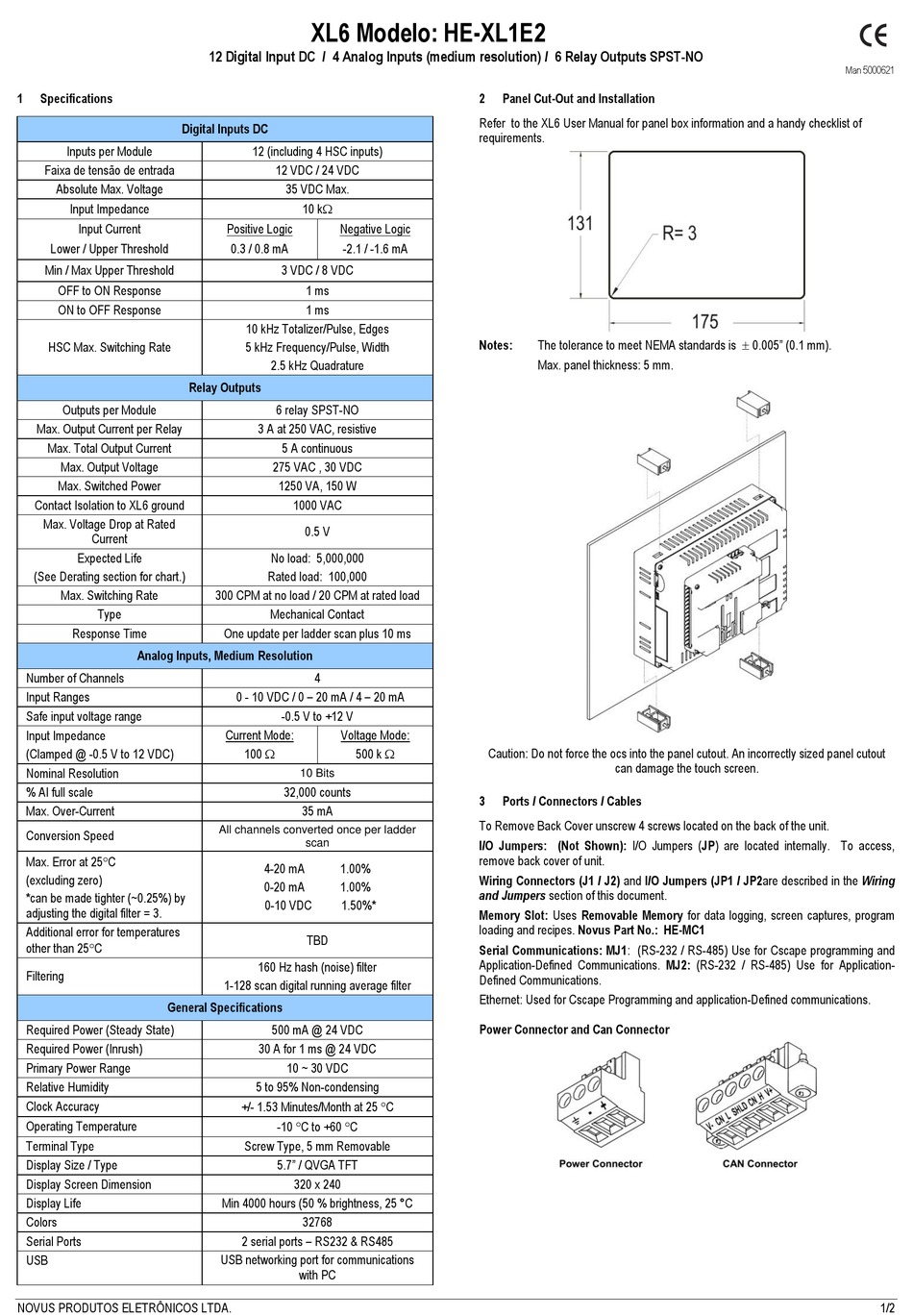

Novus XL6 Quick Start Manual

1

Specifications

Digital Inputs DC
Inputs per Module
Faixa de tensão de entrada
Absolute Max. Voltage
Input Impedance
Input Current
Lower / Upper Threshold
Min / Max Upper Threshold
OFF to ON Response
ON to OFF Response
HSC Max. Switching Rate
Relay Outputs
Outputs per Module
Max. Output Current per Relay
Max. Total Output Current
Max. Output Voltage
Max. Switched Power
Contact Isolation to XL6 ground
Max. Voltage Drop at Rated
Current
Expected Life
(See Derating section for chart.)
Max. Switching Rate
Type
Response Time
Analog Inputs, Medium Resolution
Number of Channels
Input Ranges
Safe input voltage range
Input Impedance
(Clamped @ -0.5 V to 12 VDC)
Nominal Resolution
% AI full scale
Max. Over-Current
Conversion Speed
Max. Error at 25C
(excluding zero)
*can be made tighter (~0.25%) by
adjusting the digital filter = 3.
Additional error for temperatures
other than 25C
Filtering
General Specifications
Required Power (Steady State)
Required Power (Inrush)
Primary Power Range
Relative Humidity
Clock Accuracy
Operating Temperature
Terminal Type
Display Size / Type
Display Screen Dimension
Display Life
Colors
Serial Ports
USB
NOVUS PRODUTOS ELETRÔNICOS LTDA.

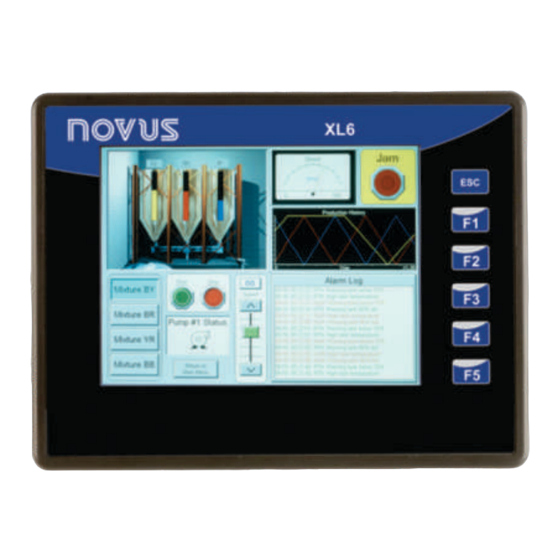

XL6 Modelo: HE-XL1E2
12 Digital Input DC / 4 Analog Inputs (medium resolution) / 6 Relay Outputs SPST-NO
12 (including 4 HSC inputs)
12 VDC / 24 VDC
35 VDC Max.
10 k
Positive Logic Negative Logic
0.3 / 0.8 mA -2.1 / -1.6 mA
3 VDC / 8 VDC
1 ms
1 ms
10 kHz Totalizer/Pulse, Edges
5 kHz Frequency/Pulse, Width
2.5 kHz Quadrature
6 relay SPST-NO
3 A at 250 VAC, resistive
5 A continuous
275 VAC , 30 VDC
1250 VA, 150 W
1000 VAC
0.5 V
No load: 5,000,000
Rated load: 100,000
300 CPM at no load / 20 CPM at rated load
Mechanical Contact
One update per ladder scan plus 10 ms
4
0 - 10 VDC / 0 – 20 mA / 4 – 20 mA
-0.5 V to +12 V
Current Mode: Voltage Mode:
100  500 k 
10 Bits
32,000 counts
35 mA
All channels converted once per ladder
scan
4-20 mA 1.00%
0-20 mA 1.00%
0-10 VDC 1.50%*
TBD
160 Hz hash (noise) filter
1-128 scan digital running average filter
500 mA @ 24 VDC
30 A for 1 ms @ 24 VDC
10 ~ 30 VDC
5 to 95% Non-condensing
+/- 1.53 Minutes/Month at 25 C
-10 C to +60 C
Screw Type, 5 mm Removable
5.7" / QVGA TFT
320 x 240
Min 4000 hours (50 % brightness, 25 °C
32768
2 serial ports – RS232 & RS485
USB networking port for communications
with PC
2

Panel Cut-Out and Installation

Refer to the XL6 User Manual for panel box information and a handy checklist of
requirements.
The tolerance to meet NEMA standards is  0.005" (0.1 mm).
Notes:
Max. panel thickness: 5 mm.
Caution: Do not force the ocs into the panel cutout. An incorrectly sized panel cutout
can damage the touch screen.
3

Ports / Connectors / Cables

To Remove Back Cover unscrew 4 screws located on the back of the unit.
I/O Jumpers: (Not Shown): I/O Jumpers (JP) are located internally. To access,
remove back cover of unit.
Wiring Connectors (J1 / J2) and I/O Jumpers (JP1 / JP2are described in the Wiring
and Jumpers section of this document.
Memory Slot: Uses Removable Memory for data logging, screen captures, program
loading and recipes. Novus Part No.: HE-MC1
Serial Communications: MJ1: (RS-232 / RS-485) Use for Cscape programming and
Application-Defined Communications. MJ2: (RS-232 / RS-485) Use for Application-
Defined Communications.
Ethernet: Used for Cscape Programming and application-Defined communications.
Power Connector and Can Connector
Man 5000621
1/2
