Summary of Contents for neverdark CHALET

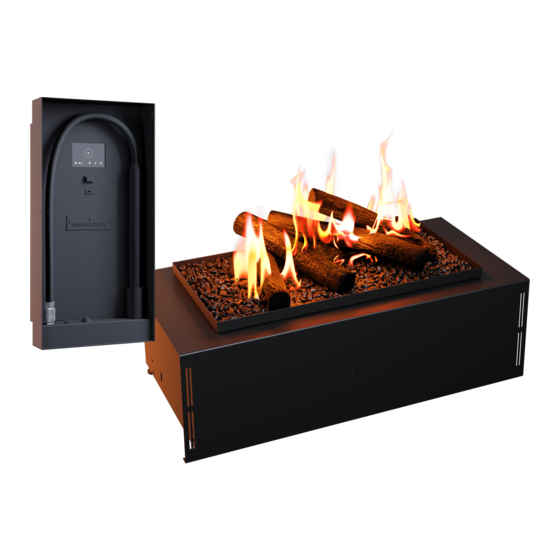

- Page 1 NEVERDARK CHALET. USER MANUAL...
-
Page 3: Table Of Contents
CONTENT 1. SAFETY ………………………………………………………….………….…….………………….. 2. VIEW …………………………………………………………………….……………..……………… 3 2.1. External elements ……………………………….……………….………. 2.2. Control elements ………………..…………….…………….….………… 4 3. INSTALLATION ………………………………….……………..…………………………………. 6 4. SETTINGS ……………….…………….…………………..........8 4.1. Connection ..…………………………………………………………………. 8 4.2. Mobile App Set Up ………………………………………………………… 11 5. USE …………………………………….………..………………………………..…………………… 5.1. Fueling ………………………………………………………….………………... -
Page 4: Safety
SAFETY. Automatic ethanol fireplace Neverdark Chalet is a decorative device. It makes a real open fire, but it is not a device for heating. Explotation of the ethanol fireplace Neverdark Chalet requires strict adherence to the following safety rules. ×... - Page 5 Warning! It’s not allowed to pour the fuel while the ethanol fireplace is running. It could suddenly catch fire and then damage to the fireplace, fire in the room and burns to the user and fatal danger. × It’s not allowed to pour the fuel while the ethanol fireplace is running. It could suddenly catch fire and then damage to the fireplace, fire in the room and burns to the user and fatal danger.
-
Page 6: View
VIEW. 2.1. External elements... -
Page 7: Control Elements
2.2. Control elements Control panel Mobile App... - Page 8 Оption: External control and filling module (ARS-500)
-
Page 9: Installation
3. INSTALLATION a) Install the bioethanol fireplace according to the installation requirements and fire safety regulations b) Place the stones on the burner surface so that they cover the entire surface with a thin even layer. Important: Do not let the stones get into the ignition chamber, as this may cause the ignition to work incorrectly. - Page 10 c) Arrange the firewood on top of the laid-out stones so that the contact area with the stones' surface is minimal. If a thermal box and glass are included, install the glass into the thermal box. First insert it into the right groove and then into the left groove.
-
Page 11: Settings
SETTINGS. 4.1. Connection a) Connect the fireplace to 220V power supply. b) Click on the top of the built-in control panel and let go of it to open. Then open it as far as it will go. (In case the fireplace is equipped with an external ARS-500 module, skip this step). c) Press the power button on the control panel (or on the external ARS-500 module). - Page 12 The inscription will appear on the display: e) Point the camera of your smartphone at the QR code at the display screen to get the link for downloading the mobile application Neverdark, by means of which you will be able to control the fireplace.
- Page 13 f) You can also download the mobile application directly from AppStore or PlayMarket. g) After downloading the application, you need to go to the Wi-Fi settings of your smartphone and connect to the Wi-Fi network of the fireplace, using the name and password of the network, which are specified on the fireplace display screen:...
-
Page 14: Mobile App Setup
4.2. Mobile App Setup a) Run Neverdark mobile application on your smartphone b) After the screensaver, the connection c) Clicking on the button will bring you to the screen will appear: screen of the beginning of configuration: If there is a Wi-Fi network in the room where the fireplace is installed, click on the Wi-Fi network, if not - choose directly. - Page 15 f) For a while the connection process screen will appear and immediately after that the message about successful connection will appear. g) The next screen will be the room h) After that you can selection screen where the choose whether to fireplace is installed.
- Page 16 If you choose yes, you need to create and confirm your own pin code. This completes the setting.
-
Page 17: Use
USE. 5.1. Fueling a) At the first start or at the end of fuel in the tank during the use of the fireplace, the display of the fireplace and the mobile application will show a message that the tank is empty. touch-display Mobile App b) Install a fuel canister next to the fireplace (or ARS-500 module). - Page 18 d) Unscrew the canister cover and lower the end of the fuel hose into the canister so that the end of the hose rests at the bottom of the canister. e) After that, go to refueling mode by pressing FUEL on the touch display of the fireplace.
- Page 19 f) You can also refill the fireplace on your own if the tank has less than 100% fuel. To proceed to refueling, click the fuel can icon on the start screen of the touch screen. g) The display will show the refueling screen. h) To start refueling, press START.
- Page 20 During refueling, watch the fuel level indication on the display. When the tank fills up, the FULL TANK will appear on the display and the pump will automatically turn off. If you need to stop the fuel filling before the tank is full, you can do so at any time by pressing STOP.
-
Page 21: Flame Height Control
5.2. Flame height control a) You can set the desired flame height on the touch screen as during heating by pressing the corresponding button and entering the flame height control mode. As well as during burning (buttons «+» & «-»), where the flame height control mode is the main one. - Page 22 b) During burning, you can also control the height of the flame from a mobile application. Here you can do it smoothly by moving the slider to the right - to zoom in, and left - to reduce the flame. Warning! When changing the height of the flame during burning, it is necessary to wait for some time (15-30 seconds) to change the height of the flame to the set.
-
Page 23: Ignition/Extinguishing Of The Fireplace
5.3. Ignition/Extinguishing of the fireplace Ignition а) Press the ignition button on the touch screen or mobile application. touch-display Mobile app б) The fireplace will emit a distinctive beep and the display will show the inscription HEATING UP and a scale that indicates the progress of heating. touch-display Mobile app... - Page 24 When the scale reaches its maximum, the igniter will turn red and after a while the fireplace will light up. Warning! The work of the igniter is accompanied by characteristic clicks, which will stop as soon as the fireplace warms up. Warning! If the heating process does not start, check if the error is on the display and try again.
- Page 25 Extinguishing a) Tap the off button on the touch screen or mobile application touch-display Mobile App b) A countdown will appear, at the end of which the fireplace will automatically shut down. You can also confirm the shutdown by interrupting the countdown or cancel the shutdown if it was done accidentally.
-
Page 26: Additional Functions
5.4. Additional functions PIN-code PIN-code is needed to block the fireplace from outside interference. In the mobile application you can set your own PIN-code and no one can use the fireplace neither from the mobile application nor from the touch-display until you enter the PIN-code you set. - Page 27 Adding the fireplace You can add several Neverdark fireplaces to your mobile application and manage each of them separately from one mobile application on one device.
- Page 28 Sleep timer You can set a sleep timer, after which the countdown of your selected time will start. Mobile App touch-display At the end of the countdown, the fireplace will turn off automatically...
- Page 29 Fuel order You can order fuel directly from the mobile application.
-
Page 30: Complete Shutdown
5.5. Complete shutdown а) To turn off the fireplace completely, press the power button on the control panel (or external module ARS-500). The display screen should turn off. Warning! If the fireplace has cooled down and you do not plan to use it soon, be sure to turn off the power to the fireplace with a pressing power button. -
Page 31: Secret Screen
5.6. Secret screen Secret screen allows you to get information about the name of the Wi-Fi network of the fireplace and the password to it, as well as to reset the fireplace to the factory settings (it may be necessary to change the connection settings or in case you forgot your PIN code). -
Page 32: Cleaning And Technical Service
MATERIALS. Quality certified fuel for ethanol fireplaces must be used for proper operation of the ethanol fireplace Neverdark Firetec. Operation of any other liquids is not permitted, may cause malfunction or malfunction of the fireplace, may cause fire and life hazard. The manufacturer is not liable for damages resulting from the use of liquids not permitted for use, such as dehydrated ethanol. -
Page 33: Service
9. SERVICE If you have any technical problems or other questions that require clarification, please contact the dealer in your country, or contact the manufacturer directly on the page: https://neverdark.one#contacts . - Page 36 NEVERDARK LLC 11 Kopernika St., Kyiv, Ukraine neverdark.one +38 044 227 79 59...
