Summary of Contents for neverdark CHALET-II 700 (EX)

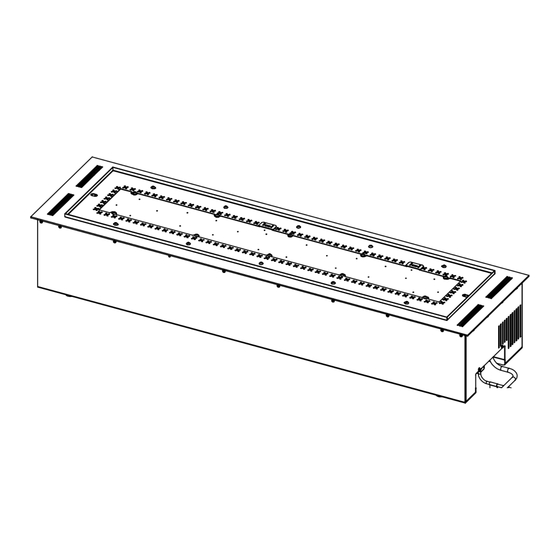

- Page 1 Neverdark CHALET-II (EX) Smart fireplace TECHNICAL DOCUMENTATION...
-
Page 3: Table Of Contents
CONTENT CONFIGURATION INTERFACES Standard configuration Optional Extra THERMOBOXES INTERFACES General Fireplace DIMENSIONS Fireplace INSTALLATION NICHE PREPARATION Niche for the fireplace Niche requirements Niche for Standard ARS Niche for Standard ARS (with fuel canister) Niche for Mini ARS INSTALLATION Installation of Standard ARS Installation of Standard ARS (with fuel canister) Installation of Mini ARS Connecting ARS communications... - Page 4 ATTENTION! This document, along with the User Manual, is a part of the device and is being delivered along with the fireplace (hereinafter collectively referred to as «Instructions»). If one or both of these documents weren't delivered with your fireplace, please contact the manufacturer prior to the installation and/or use of the fireplace.
-
Page 5: Standard Configuration
CONFIGURATION Standard configuration Smart fireplace (Standard top panel Black matte) Decorative elements: decorative stones, 1 pc ceramic firewood, fiber for glow effect Power cable: Euro Plug — WAGO (fireplace length + 0.1m) 1 set 1 set Mounting Documentation handles 2 pc 1 set Communications for connecting... -
Page 6: Optional Extra
Optional Extra You can add any option listed below: Glass Border Remote Control (one or two ) code code GB (1, 2) Smart Home сonnection Custom Top module (RAL Matte) code code CT (RM) Enlarged Fuel Tank code ARS (the external control and refuelling module) is available in three configurations. -
Page 7: Thermoboxes
THERMOBOXES You can also choose the Neverdark Thermobox for your fireplace. The Thermobox can withstand temperatures up to 200°C, allowing you to choose any material for lining the niche. Single-Sided Three-Sided code code Right Corner Room Divider code code Left Corner... -
Page 8: Interfaces
INTERFACES General Fireplace Communications ARS-Fireplace (length 2,5m) АRS 07 | general... -
Page 9: Fireplace
Fireplace Glow plug (candle) ATTENTION! Do not cover! Flame sensor ATTENTION! Do not cover! Air ventilation grids Burner Tray for decorative elements Fuel drainage unit (service only) Power cable 220V ARS connection port Fuel line connector fireplace interfaces | 08... -
Page 10: Ars
Standard ARS Touch display Power button Fuel hose Fuel line connector ARS connection port 09 | ARS interfaces... - Page 11 Mini ARS (up) Fuel hose Touch display connector Power button Magnetic frame ARS connection port Fuel line connector Mini ARS (down) Magnetic frame Touch display Fuel hose connector Power button Fuel line connector ARS connection port ARS interfaces | 10...
-
Page 12: Dimensions
DIMENSIONS Fireplace Standard range Length, Depth, Height, Weight, Model Code С2-700-ex Chalet-II 700 (ex) C2-700-ex.EFT С2-950-ex Chalet-II 950 (ex) C2-950-ex.EFT С2-1200-ex Chalet-II 1200 (ex) 1200 C2-1200-ex.EFT 11 | fireplace dimensions... -
Page 13: Ars
Standard ARS Mini ARS (Up/Down) ARS dimensions | 12... -
Page 14: Niche Preparation Niche For The Fireplace
NICHE PREPARATION Niche for the fireplace with standard fuel tank Communications min 40x40 Clearance 6 Clearance 6 WARNING! For correct operation of the Fireplace, it must be installed 100% min 20 horizontally according to the level! Clearance 6 min 20 min 20 13 | niche for the fireplace... - Page 15 Niche for the fireplace with enlarged fuel tank Communications min 40x40 Clearance 6 Clearance 6 WARNING! For correct operation of the Fireplace, it must be installed 100% min 20 horizontally according to the level! Clearance 6 min 20 min 20 niche for the fireplace | 14...
-
Page 16: Niche Requirements
Alternatively, a non heat-resistant material + Min 500 mm to flammable Neverdark Thermobox objects from any closed side of the niche. WARNING! For safe and correct operation of the fireplace it is mandatory to provide an air supply opening (100 cm² at least) in the lower part of the niche. -
Page 17: Niche For Standard Ars
Niche for Standard ARS To correctly mark the mounting holes in the wall, temporarily insert the ARS Communications min 120 Opening for communications Tunnel must be applicable for 2,5 m communications cable niche for Standard ARS | 16... -
Page 18: Niche For Standard Ars (With Fuel Canister)
Niche for Standard ARS (with fuel canister) To correctly mark the mounting holes in the wall, temporarily insert the ARS Communications Opening for communications Tunnel must be applicable for 2,5 m communications cable 17 | niche for Standard ARS... -
Page 19: Niche For Mini Ars | 18
Niche for Mini ARS (Up and Down) To correctly mark the mounting holes in the wall, temporarily Opening for insert the ARS communications Communications Tunnel must be applicable for 2,5 m communications cable niche for Mini ARS | 18... -
Page 20: Installation
INSTALLATION Installation of Standard ARS Screw 6 pc, 3x20 19 | installation of Standard ARS... -
Page 21: Installation Of Standard Ars
Installation of Standard ARS (with fuel canister) Screw 6 pc, 3x20 | 20 installation of Standard ARS... -
Page 22: 21 | Installation Of Mini Ars
Installation of Mini ARS (Up and Down) Screw 4 pc, 3x20 Magnetize 21 | installation of Mini ARS... -
Page 23: Connecting Ars Communications
Connecting ARS communications Standard ARS Fireplace Fuel line connector ARS connection port Mini ARS Fireplace Fuel line connector ARS connection port connecting ARS communications | 22... -
Page 24: Installation Of The Fireplace
Installation of the fireplace WARNING! 220V cable connection must be carried out by a qualified electrician. Mounting Handles Plug 220V (option 1) Cable 220V 3x2.5mm (option 2) 23 | installation of the fireplace... -
Page 25: Features
FEATURES Technical information Fireplace model Parameters Chalet-II (Ex) Chalet-II (Ex) Chalet-II (Ex) 1200 Standard tank Tank volume, l Enlarged Fuel 12,4 16,0 Tank (EFT) Standard tank System volume, l Enlarged Fuel 13,6 18,4 Tank (EFT) Standard tank 4,1 | 10,3 5,2 | 10,3 4,7 | 10,5 Burning time, h... - Page 26 fireplace. ATTENTION! Kindly follow next rules while using the Neverdark fireplace: Keep away from children; Ensure that the wall/table/floor on which you place the appliance can withstand its weight;...
- Page 28 NEVERDARK LLC 11 Kopernika St. Kyiv, Ukraine neverdark.one...
