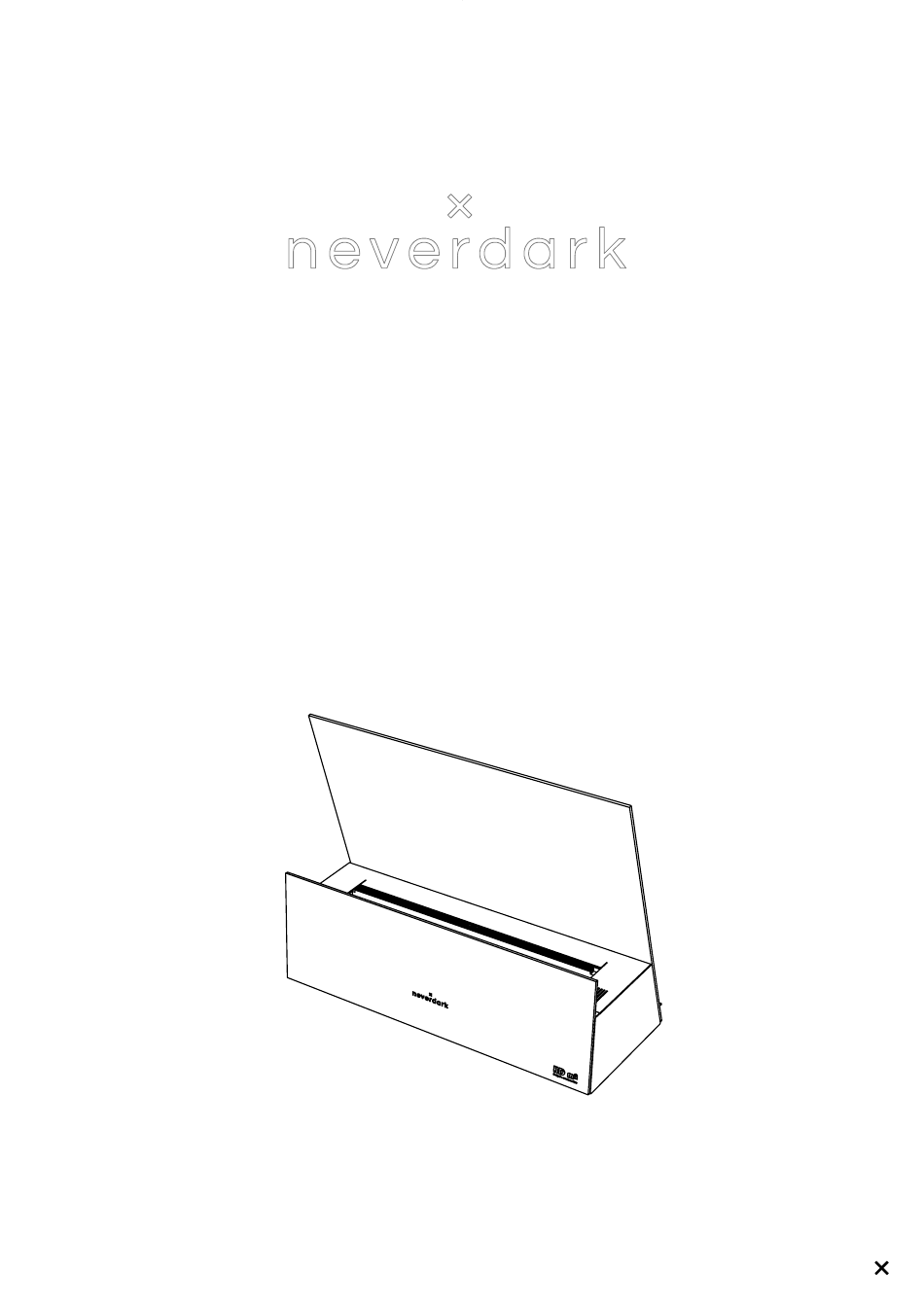

- Page 1 Smart fireplace FILD (FLD) Technical documentation neverdark.one...

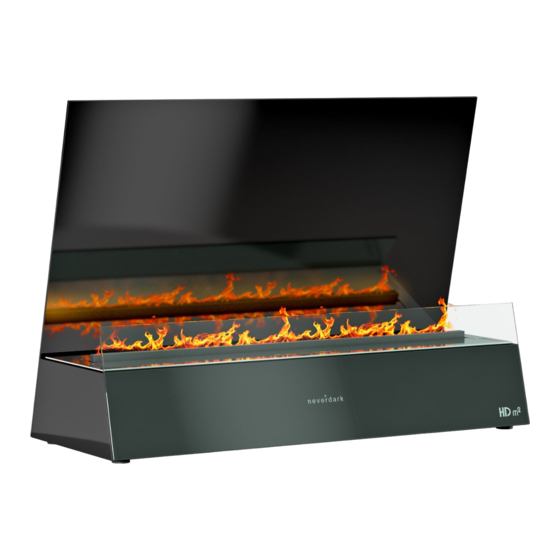

- Page 2 General view documentation Model Code Length, mm Width, mm Height, mm Weight, kg Fild 1000 • Automatic bioethanol fireplace Fild • Manufacturer: Neverdark LLC, Ukraine • This document is part of the device • For decorative and domestic use only neverdark.one...
-
Page 3: Standard Configuration
NEVERDARK Fild Technical Options documentation Standard configuration 1 Fireplace 2 Fireplace box 3 Panel with front glass 4 Back glass 5 Remote Control 6 Handles for mounting 7 Fuel neck 8 Protection housings for the glass 9 Screw М8 10 Nut М5... - Page 4 NEVERDARK Fild Technical Dimensions documentation 1000 neverdark.one...
- Page 5 NEVERDARK Fild Technical Mounting (Sheet 1) documentation Screw in mounting Lift the fireplace handles out of the niche Get the cable Insert pins into holes Screw in nuts М5 Screw in nut М5 with spanner 8mm [12] neverdark.one...
- Page 6 NEVERDARK Fild Technical Mounting (Sheet 2) documentation Lower the fireplace into the niche Lower the cable into the niche Get the cable from the bottom After the mounting screw the mounting handles out neverdark.one...
- Page 7 NEVERDARK Fild Technical Mounting (Sheet 3) documentation Маtt side Glossy side Screw in Protective housing for the glass Screw М8 Screw with hex key [11] neverdark.one...
-
Page 8: Installation
NEVERDARK Fild Technical Installation documentation The surface can be heated up to 90 C min 1000 mm from burner to Hot air output flammable objects (curtains or upholstered furniture, etc.) Align horizontally 220V Power Plug Height adjustment WARNING! • Installation of the fireplace not on a horizontal level can lead to malfunction of the fireplace and possible fuel spillage;... - Page 9 NEVERDARK Fild Technical Fireplace interface documentation Burner Control panel (Push-to-Open) Glow plug Vent grids Fueling panel (Push-to-Open) Remote control Service panel Power cable Fuel neck 220V USB port (for service professionals only) Push-to-open mechanism Push-to-open Power button Fuel neck cap...
- Page 10 NEVERDARK Fild Technical documentation Features • Keep away from children; • Ensure that the wall/table/floor on which you place the appliance can support its weight; • Install only in a place protected from draughts; • Do not cover top and side ventilation grids;...
