Connecting The Sdi Color Bar Generator - Kramer DigiTOOLS 820 User Manual

Connecting only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables)
Avoiding interference from neighboring electrical appliances that may
adversely influence signal quality
Positioning your Kramer 820 SDI Color Bar Generator in a location free
from moisture and away from excessive sunlight and dust

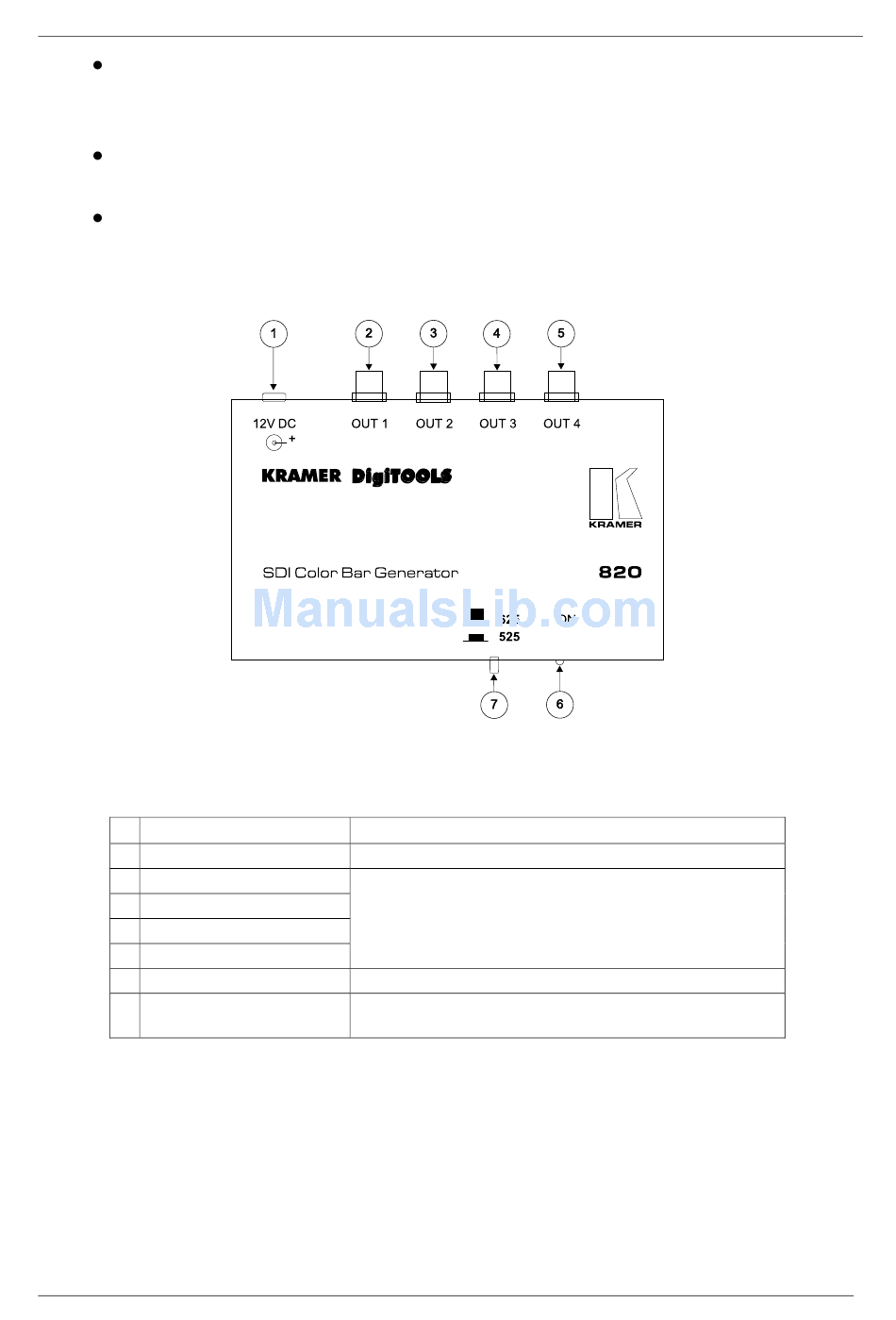

Figure 1 and Table 1 define the 820 SDI Color Bar Generator:
Table 1: Features and Functions of the 820 SDI Color Bar Generator
# Feature
1 12V DC
2 OUT 1 BNC Connector
3 OUT 2 BNC Connector
4 OUT 3 BNC Connector
5 OUT 4 BNC Connector
6 ON LED
7 625 / 525 Selector Switch
4

Connecting the SDI Color Bar Generator

To use your 820 SDI Color Bar Generator, connect one or more of up to 4
outputs, as follows:
1. Connect the SDI video BNC OUT 1 connector to the SDI video acceptor
(for example, a monitor).
2
Connecting the SDI Color Bar Generator
Figure 1: 820 SDI Color Bar Generator
Function
+12V DC connector for powering the unit
4 SDI (digital) video outputs
Illuminates when receiving power
Selects 625 line (50 Hz) when released; selects 525 line
(60 Hz) when pushed in
KRAMER ELECTRONICS, LTD.
