Summary of Contents for Kramer 717
- Page 1 K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODELS: Video-Audio Line Transmitter Video-Audio Line Receiver 718-10 Video-Audio Line Receiver 718-15 Video-Audio Line Receiver P/N: 2900-300165 Rev 1...
-
Page 3: Table Of Contents
Achieving the Best Performance Overview Shielded Twisted Pair/Unshielded Twisted Pair Defining the 717 and 718 Defining the 717 Video-Audio Line Transmitter Defining the 718 Video-Audio Line Receiver Wiring the TP LINE IN / LINE OUT RJ-45 Connectors Connecting the 717 and 718... -
Page 4: Introduction
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Congratulations on purchasing your Kramer 717 Video-Audio Line Transmitter and 718 Video-Audio Line Receiver, which are ideal for the following typical applications: •... -
Page 5: Getting Started
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer products away from moisture, excessive sunlight and dust Caution: No operator serviceable parts inside the unit Use only the Kramer Electronics input power wall... -
Page 6: Overview
Overview The 717 and 718 are a twisted pair (TP) transmitter and receiver for composite video and unbalanced stereo audio signals. The 717 transmitter converts composite video and stereo audio into a twisted pair signal and the 718 receiver converts the twisted pair signal back to composite video and stereo audio. -
Page 7: Defining The 717 And 718
718 Video-Audio Line Receiver (see Section 4.2) Defining the 717 Video-Audio Line Transmitter Figure 1 defines the front and rear panels of the 717 Video-Audio Line Transmitter. Figure 1: 717 Video-Audio Line Transmitter Feature Function ON LED Lights green when the unit is powered on... -

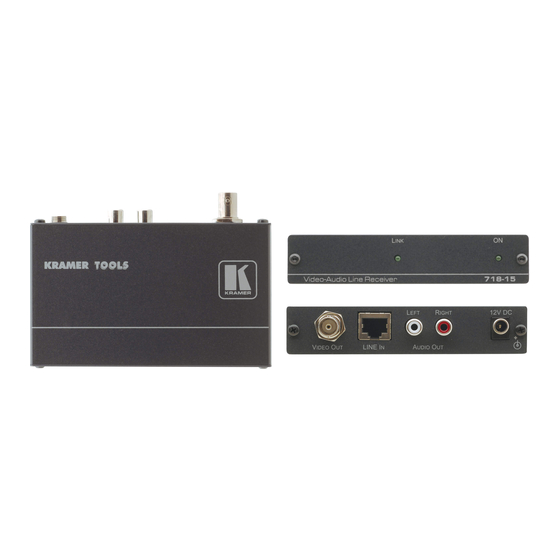

Page 8: Defining The 718 Video-Audio Line Receiver
Connects to the composite video acceptor LINE IN RJ-45 Connector Connects to the LINE OUT RJ-45 connector on the 717 using CAT 5 cable (see Figure LEFT and RIGHT AUDIO OUT Connect to the left and right channels of the... -
Page 9: Wiring The Tp Line In / Line Out Rj-45 Connectors
Note, that the cable Ground shielding must be connected / soldered to the connector shield. Figure 3: TP PINOUT EIA /TIA 568B Wire Color Orange / White Orange Green / White Blue Blue / White Green Brown / White Brown 717/718 - Defining the 717 and 718... -
Page 10: Connecting The 717 And 718
VIDEO IN BNC connector, and connect the unbalanced stereo audio to the AUDIO IN LEFT and RIGHT AUDIO IN RCA connectors. 2. Using CAT 5 cabling, connect the LINE OUT RJ-45 connector on the 717 to the RJ-45 LINE IN connector on the 718. -
Page 11: Figure 4: Connecting The Video-Audio Line Transmitter/Receiver System
Figure 4: Connecting the Video-Audio Line Transmitter/Receiver System 717/718 - Connecting the 717 and 718... -
Page 12: Technical Specifications
12cm x 6.9cm x 2.4cm (4.7" x 2.7" x 0.96") W, D, H WEIGHT: 0.3kg (0.67lbs) approx. (each) ACCESSORIES: Power supplies, mounting brackets OPTIONS: RK-3T 19” rack adapter * For the transmitter and receiver paired together. Specifications are subject to change without notice at http://www.kramerelectronics.com 717/718 - Technical Specifications... - Page 14 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
