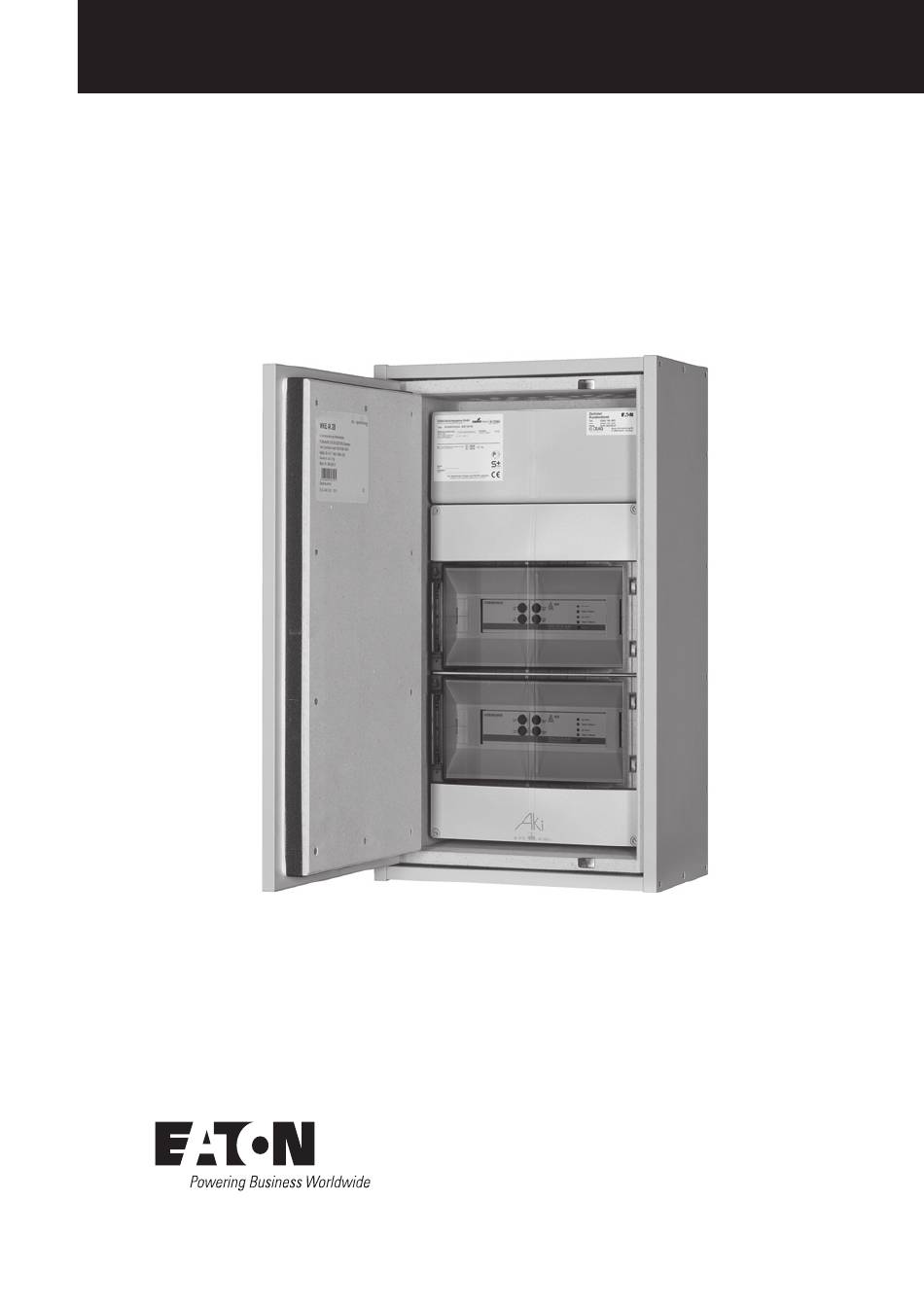

- Page 1 Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 Target group: qualified electricians according to DIN VDE 0105 Part 1...
-
Page 2: Table Of Contents
4.6.1 Components DualGuard-S ESF30 SOU1 . . .9 Tipping hazard 4.6.2 Dimensioned drawings DualGuard-S ESF30 SOU1 ....9 Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 October 2022 www.eaton.com... -
Page 3: Important Information
1.2 Key to symbols Important technical safety information in these operating instructions is designated by symbols. Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 October 2022 www.eaton.com... -
Page 4: Liability, Warranty, And Transfer Of Custody Declaration
GmbH is not liable for any resulting damage and any resulting In the event of the use of unauthorised replacement parts consequential damage. all the guarantee, service, compensation and liability claims become null and void. Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 October 2022 www.eaton.com... -
Page 5: Contents Of The Mounting And Installation Instructions
230 V 50 Hz 230 V 50 Hz Number of module slots 0-30 0-15 Max. conductor size / final circuits (mm²) Max. conductor size (mm²) Max. total conductor size (mm²) Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 October 2022 www.eaton.com... -
Page 6: Layout
4.1.1 Components DualGuard-S ESF30 30P Terminal block Thermostatic control / temperature exceeded Thermostatic control of internal temperature Control module ACU Thermostatic control of external temperature Circuit switch-overs SKU.1 CG-S 3-PM-IO module Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 October 2022 www.eaton.com... -
Page 7: Dualguard-S Esf30 15P
DualGuard-S ESF30 15P 4.2.1 Components DualGuard-S ESF30 15P Terminal block Control module ACU Thermostatic control of internal temperaturer Circuit switch-overs SKU.1 CG-S 3-PM-IO module Thermostatic control / temperature exceeded Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 October 2022 www.eaton.com... -
Page 8: Dualguard-S Esf30 Sou5
Circuit modules SOU CG-S 2 x 4 A Enclosure Circuit modules SOU CG-S 2 x 4 A 4.3.2 Dimensioned drawings DualGuard-S 4.4.2 Dimensioned drawings DualGuard-S ESF30 SOU5 ESF30 SOU3 Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 October 2022 www.eaton.com... -
Page 9: Dualguard-S Esf30 Sou2
Circuit module SOU CG-S 2 x 4 A Enclosure Circuit modules SOU CG-S 2 x 4 A 4.5.2 Dimensioned drawings DualGuard-S 4.6.2 Dimensioned drawings DualGuard-S ESF30 SOU2 ESF30 SOU1 Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 October 2022 www.eaton.com... -
Page 10: Transport
• Do not lay the enclosure down on its door(s)! • The enclosure must be locked when doing this. • Note the considerable weight of the fire protection en- closure. Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 October 2022 www.eaton.com... -
Page 11: Instructions For Unhinging The Doors
• Unscrew leafs from enclosure and bolt to the opposite side into the pre-drilled holes. • Unscrew leafs from door and bolt to the opposite side into the pre-drilled holes. • Align door and insert pins. Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 October 2022 www.eaton.com... -
Page 12: Setup Conditions For Fire Protection Enclosures
• Our products are shipped complete with everything nee- ded and appropriate for installation. • The fire protection enclosures are shipped as described in the prospectus. Available options are described in the prospectus. Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 October 2022 www.eaton.com... -
Page 13: Cable Routing In The Distribution Cabinet
1. Disconnect the fan unit from the supply voltage taking care about VDE 0100 230 V mains connection before beginning to dismantle. Determine freedom from tension. Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 October 2022 www.eaton.com... -
Page 14: Dismantling Of The Fan Unit
Hold on the fan unit with one hand and loosen the two screws (4,5 x 55 mm) at the fan with the other hand. 4. Remove the fan unit EBEL-VENT-L230 and the supply- cable from the enclosure. Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 October 2022 www.eaton.com... -
Page 15: Ventilation Diagram
„fresh“ supply air comes from below at the lower/rear side. This band must not be removed. EXHAUST AIR SUPPLY AIR Schematic diagram of the ventilation Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 October 2022 www.eaton.com... -
Page 16: Ventilation Unit: Technical Data
Electrical waste products should not be disposed of with household waste. Please recycle electrical components in a designated location. You can get advice from your local authority on professional recycling. Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 October 2022 www.eaton.com... -
Page 17: Connection Plan
Follow the instructions of VDE 0100 for 230 V main supply. Thermo-element 77 °C Potential-free contact 230Vac R elay block C ontrol block Smoke detector Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 October 2022 www.eaton.com... -
Page 18: Setup And Installation Dualguard-S Esf30
In the proximity of doors, a clearance appropriate for the door lead-throughs are securely sealed. swing must be maintained. 1. Mark location 2. Drill 3. Secure with screws Dimensions of hanging openings Detailed installation drawing Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 October 2022 www.eaton.com... -
Page 19: Notes
Notes Notes Mounting and Operating Instructions Fire-Resistant Cabinet Type DualGuard-S ESF30 October 2022 www.eaton.com... - Page 20 The aim of Eaton is to provide a reliable, efficient and safe power supply where it is needed most. Eaton's experts have comprehensive in-depth specialist knowledge in the area of energy management in the most diverse of sectors and therefore they are able to provide customer-specific, integrat- ed solutions to meet the most challenging demands of its customers.
