- Page 1 Body Camera User Manual...
- Page 2 With the philosophy of "Technology for the Good", Hikvision requests that every end user of video technology and video products shall comply with all the applicable laws and regulations, as well as ethical customs, aiming to jointly create a better community.
- Page 3 Body Camera User Manual control, selecting a suitable network environment (the Internet or Intranet) where video products are connected, establishing and constantly optimizing network security. Video products have made great contributions to the improvement of social security around the ● world, and we believe that these products will also play an active role in more aspects of social life.
- Page 4 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
- Page 5 Body Camera User Manual DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.
- Page 6 Body Camera User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 7 Body Camera User Manual equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information.
- Page 8 Body Camera User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, could Caution result in equipment damage, data loss, performance degradation, or unexpected results.
- Page 9 Body Camera User Manual Safety Instruction Laws and Regulations Use of the product must be in strict compliance with the local laws and regulations. Please shut down the device in prohibited area. Power Supply Use of the product must be in strict compliance with the local electrical safety regulations. ●...
- Page 10 Body Camera User Manual To prevent possible hearing damage, DO NOT listen at high volume levels for long periods. ● The device can only be safely used in the region below 2,000 meters above the sea level. ● Maintenance If smoke, odor, or noise arises from the device, immediately turn off the power, unplug the ●...
- Page 11 Body Camera User Manual DO NOT pierce the battery or shorten the electrodes, or it may cause explosion or fire hazard. ● DO NOT dispose of the battery into fire or a hot oven, or mechanically crush or cut the battery, ●...
-
Page 12: Table Of Contents
Body Camera User Manual Contents Chapter 1 Product Introduction ....................1 1.1 Introduction ........................... 1 1.2 Key Feature ..........................1 1.3 Default Information ....................... 1 Chapter 2 Startup and Main Menu ..................... 2 2.1 Start up ..........................2 2.2 Main Menu ..........................2 2.3 Zoom ............................ - Page 13 Body Camera User Manual 5.4 Ping Test ..........................9 5.5 Network Packet ........................9 Chapter 6 System Settings ......................10 6.1 Set Positioning ........................10 6.2 Enable Indicator ........................10 6.3 Enable IR Light ........................10 6.4 Set System Sound ......................... 11 6.5 Set Voice Prompt .........................
- Page 14 Body Camera User Manual 7.5 Edit Password ........................16 7.6 Upgrade ..........................17 7.7 Export Debug Log ......................... 17 7.8 Set Satellite Time Synchronization ..................17 7.9 Restore Basic Settings ......................18 7.10 Restore Factory Settings ..................... 18 7.11 Shut down and Sleep ......................18 7.11.1 Shut down .........................
-
Page 15: Chapter 1 Product Introduction

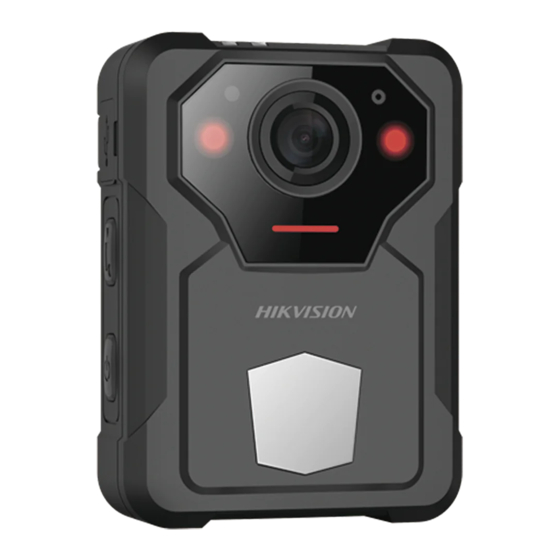

Body Camera User Manual Chapter 1 Product Introduction 1.1 Introduction Body camera (hereinafter referred to as device) highly integrates with record, taping, capture, positioning, etc. It is embedded with positioning module with high sensitivity to locate the occurring position of events accurately. It can record the process and condition of events completely via record, taping, and capture. -
Page 16: Chapter 2 Startup And Main Menu
Body Camera User Manual Chapter 2 Startup and Main Menu 2.1 Start up When the device is off, hold the startup/shutdown button on the device side to start it up. Then you will enter the following page. 2.2 Main Menu After the device starts up, it will enter the camera page automatically. -
Page 17: Chapter 3 Storage, Playback, And Backup
Body Camera User Manual Chapter 3 Storage, Playback, and Backup 3.1 Storage The recorded videos, taped audios, and captured pictures will be stored in the device. 3.1.1 Release Storage Capacity When the storage capacity is full, you can back up the device data to the computer first, and then release the storage capacity. -
Page 18: Capture
2. Copy the data of the device to the computer. Note You can only play the backed up video or audio files via Hikvision player or other players with Hikvision play plugin. Hikvision Player: If you select Hikvision player to play the files, visit Hikvision official website to ●... -
Page 19: Set Tag
Body Camera User Manual 3.4 Set Tag 3.4.1 Set Tag During Recording During recording, hold the OK button below the screen to set a tag for the current video. Then the icon will appear on the upper left corner of the live view page. Hold the OK button again to cancel the tag. -
Page 20: Chapter 4 Alarm
Body Camera User Manual Chapter 4 Alarm The device will detect the storage capacity and battery automatically. When the storage capacity is full or the battery is low, corresponding prompt will pop up on the live view page to send the auto alarm. -
Page 21: Chapter 5 Network Settings
Body Camera User Manual Chapter 5 Network Settings 5.1 Connect to Wi-Fi Set Wi-Fi parameters if you want to connect the device to the network via Wi-Fi. Steps 1. Select Set → Network → Wi-Fi to enable Wi-Fi. 2. Select Refresh to search available Wi-Fi. 3. -
Page 22: Connect To Isup Platform
Body Camera User Manual Note The device ID should be the same as the ID set on the platform. 4. Optional: You can also do the following operations. Enable Sub-Stream Enable Sub-Stream to force the platform only to transmit via the sub-stream. -
Page 23: Ping Test
Body Camera User Manual Steps 1. Select Set → Network → FTP . 2. Enable FTP. 3. Select Configuration to set the FTP server parameters. 4. Enable Video Upload, Pic. Upload or Audio Upload according to your needs. 5. Optional: You can also do the following operations. Automatically delete local Enable Delete File, and the local files will be automatically files... -
Page 24: Chapter 6 System Settings
Body Camera User Manual Chapter 6 System Settings 6.1 Set Positioning You can set positioning to locate the position of the device. Steps 1. Select Set → Network → Positioning → Positioning to select the positioning mode. 2. Optional: Select Set → Network → Positioning to enable GPS Overlay. The positioning information will be overlaid on the live view image. -
Page 25: Set System Sound
Body Camera User Manual 6.4 Set System Sound On the live view page, press the up button below the screen to increase the sound, and press the down button to decrease the sound. When the sound is decreased to mute, the icon will display on the live view page. -
Page 26: Set Network Stream Parameters
The max. recording duration of each video. Video Format Select PS, and the video files will be packed in PS format. You need to use Hikvision player to play the files. Visit Hikvision official website to download VSPlayer and install it. -
Page 27: Set Audio Encoding Type
Body Camera User Manual 6.6.4 Set Audio Encoding Type The audio encoding type will affect the quality of audio. Steps 1. Select Set → Camera → Intercom Audio . 2. Select audio encoding type according to your needs. What to do next Reboot the device to take the new settings into effect. -
Page 28: Set Overwritten Record
Body Camera User Manual Steps 1. Select Set → Camera → Record Param. → Post-Record . 2. Select the post-record duration. 6.11 Set Overwritten Record You can enable overwritten record to keep recording when the available memory is insufficient, and the former recorded videos will be overwritten. Steps Caution If you enable overwritten record, back up the important data in time, or they will be overwritten. -
Page 29: Switch Usb Mode
Body Camera User Manual Steps 1. Select Set → System → Power Supply . 2. Enable or disable Fast Charge according to your needs. - Enable the fast charge, and all the power consuming functions, such as network, record, positioning, etc., will be disabled automatically. The fully-charged duration will be shorten. - Disable the fast charge, and the device can be operated normally while being charged. -
Page 30: Chapter 7 Maintenance
Body Camera User Manual Chapter 7 Maintenance 7.1 View System Information Select Set → System → System → System Info. to view the system information such as model, serial No., software version, etc. 7.2 View Device Information Select Set → System → Device Info. to view device information such as person ID, device ID, etc. 7.3 View Battery Information Select Set →... -
Page 31: Upgrade
Body Camera User Manual 7.6 Upgrade You can upgrade the device version. Before You Start Import the upgrade file to the root directory of the device storage media. ● Ensure the device battery power is larger than 20%. ● Steps 1. -
Page 32: Restore Basic Settings
Body Camera User Manual 7.9 Restore Basic Settings If there is device exception due to the wrong set parameters, you can restore the basic settings. Steps 1. Select Set → System → System → Restore settings . 2. Enter the device password. 3. -
Page 33: Sleep Automatically
Body Camera User Manual 7.11.4 Sleep Automatically You can set the device to sleep automatically to save power if there is no operation within a certain time. Steps 1. Select Set → System → Power Supply → Auto-Lock . 2. Select time. Note If you select OFF, the screen will always on no matter if there is operation or not. -
Page 34: Appendix A. Communication Matrix And Device Command
Body Camera User Manual Appendix A. Communication Matrix and Device Command Scan the QR code below to get the communication matrix of the device. Scan the QR code below to get the device command. - Page 35 UD27705B...
