RDMOTO CF79Y Quick Start Manual

LEFT SIDE KIT
ID Desription
1 Frame
2 Bolt M12x130x1.25
3 Slider
4 SL adapter
5 Bolt M6x25
6 Bolt M4x16
7 Slider cover
8 Dural. roller d=45mm
We recommend to use safety glue on all threads(medium strong).

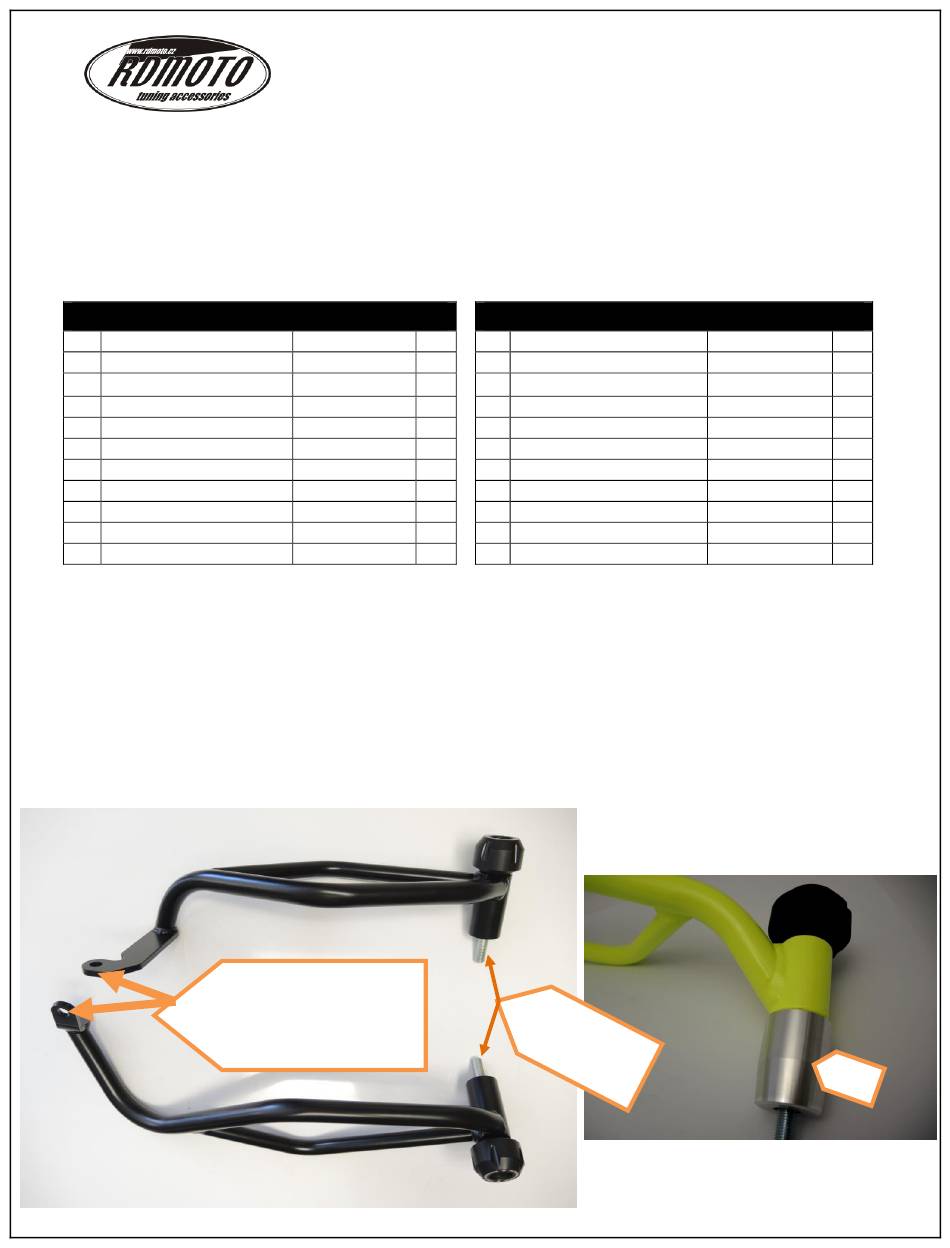

1.) Unbolt original bolt from the frame of motorcycle.
2.) Fit upper part of frame with adapter ID4 and dural. roller ID8 using bolt M12.
3.) Unbolt original bolt from the the lower part of motorcycles frame.
4.) Fit left side using original bolt and right side using bolt M10x40.
5.) Fit slider using three bolts ID5 on the slider adapter.
6.) Fit cover using two bolts ID6.
Original bolt on the left,
bolt M10x40 on the right
+ washer M10
Cat.no. Pcs
1
1027 1
SL01 1
1137 1
877 3
876 2
CAPSL-Y 1
1303 1
INSTRUCTIONS
1
CF79Y
Yamaha MT07
RIGHT SIDE KIT
ID Description
1 Frame
2 Bolt M12x130x1.25
3 Slider
4 SL adapter
5 Bolt M6x25
6 Bolt M4x16
7 Bolt M10x40x1.25
8 Dural. roller d=45mm
9 Washer M10 flat
10 Slider cover
ID2
M12x130x1.25
