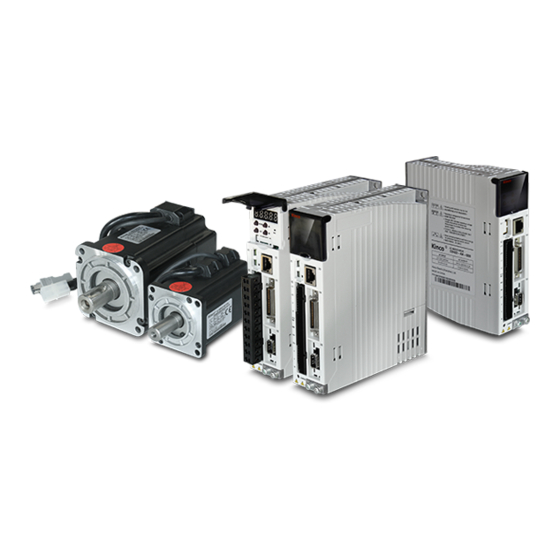

FD3&CD3 伺服驱动器使用指南(User Guidance of FD3&CD3 Driver) 第 18页 Kinco FD3&CD3 Servo Driver User Guidance V2.0 Thank you for using Kinco servo driver! Different type of Kinco drivers own different components, so we recommend you confirm the product’s information. Confirm matters Description Is it compatible with the model Please check the driver’s nameplate information to see if...
FD3&CD3 伺服驱动器使用指南(User Guidance of FD3&CD3 Driver) 第 19页 damaged? transportation. Any one of the above problems exists, please contact our company or your supplier. Kinco Electric(ShenZhen)Ltd https://en.kinco.cn/ 1 Driver installation requirements and precautions 1.1 Installation requirements Please install in the indoor control box without rain and direct sunlight, and the ...
Page 22
FD3&CD3 伺服驱动器使用指南(User Guidance of FD3&CD3 Driver) 第 20页 Cable must be securely mounted to plug (X2); Be sure to disconnect the power when connecting the cables; Contact with live parts can cause serious damage and may lead to death; This product must be installed in the electric box to use, and all the protective ...
Page 23
FD3&CD3 伺服驱动器使用指南(User Guidance of FD3&CD3 Driver) 第 21页 Figure 2-1 413/423 Driver Appearance Drawing Figure 2-2 433/623 Driver Appearance Drawing Appearance of the driver Note:CD413/CD423/CD433/CD623CD3have no bus interface. 2.2 Driver wiring instructions...
Page 25
FD3&CD3 伺服驱动器使用指南(User Guidance of FD3&CD3 Driver) 第 23页 Figure 2-5 623-driver external wiring diagram Warning! Before installing and maintaining the driver, all power must be switched off. Don’t heat the connector. Drive power off for at least ten minutes before touching drive connector, measure drive DC bus ...
Page 26
FD3&CD3 伺服驱动器使用指南(User Guidance of FD3&CD3 Driver) 第 24页 Function Control power input L/N Single phase 200 – 240VAC ±10% 50 / 60Hz+/-3Hz50 / 60Hz, 0.5A Supply ground systems: TN-S, TN-C, TN-C-S, TT (not corner earthed). Driver power input L/N Single phase 200 – 240VAC ±10%, 50 / 60Hz+/-3Hz 423@7.0A 413@3.0A...
Page 27
FD3&CD3 伺服驱动器使用指南(User Guidance of FD3&CD3 Driver) 第 25页 Function Control power input L/N Single phase 200 – 240VAC ±10% 50 / 60Hz+/-3Hz, 0.5A Supply ground systems: TN-S, TN-C, TN-C-S, TT (not corner earthed). Driver power input: Single phase200~240VAC +/-10% 50~60Hz +/-3Hz 14.0A...
Page 28
FD3&CD3 伺服驱动器使用指南(User Guidance of FD3&CD3 Driver) 第 26页 Pin number Definition Function Send controller data Signal ground Receive controller data Others Reserved 2.3.3External I / O port (X4) instructions Figure 2-3 X4 port definition Table 2-3 X4 Port Pin Definitions...
Page 30
FD3&CD3 伺服驱动器使用指南(User Guidance of FD3&CD3 Driver) 第 28页 definition 3 Easy operation process of the Driver 3.1 Easy use function The Easy Use function helps users quickly set the control loop parameters for typical application scenarios. The user can set the minimum parameters according to the panel menu, eliminating the tedious steps of servo debugging.
Page 31
FD3&CD3 伺服驱动器使用指南(User Guidance of FD3&CD3 Driver) 第 29页 Table 3-1 Description of EASY and tunE parameters Parameter Description Default For a new motor controller, the set motor type is “00” and “3030” appears at the LED display. If the new motor controller is connected to a valid motor, the motor type is auto-recognized and saved.
Page 32
FD3&CD3 伺服驱动器使用指南(User Guidance of FD3&CD3 Driver) 第 30页 Parameter Description Default 1: Normally open contacts Homing EA07 See driver manual for details method Write “1” to save control and motor parameters. Write “2” to save control and motor parameters and reboot the servo.
Page 33
FD3&CD3 伺服驱动器使用指南(User Guidance of FD3&CD3 Driver) 第 31页 Parameter Description Default In the cases 0, -1, -2, -4 Inertia_Ratio is set to 30, in the case -3 Inertia_Ratio is set as measured, Stiffness is set to 7-10 In any fail case the control loop parameters are set to Inertia_Ratio of 30 and the set Stiffness values.
FD3&CD3 伺服驱动器使用指南(User Guidance of FD3&CD3 Driver) 第 32页 3.3 Panel instructions 3.3.1 Panel button description Item Function Dot ① Dot ② When setting parameters: distinguishes between the data for the current object group and the object address inside the group.
Page 35
FD3&CD3 伺服驱动器使用指南(User Guidance of FD3&CD3 Driver) 第 33页 3.3.2Panel parameter setting process Figure 3-1 panel parameter setting flow Note: Through F006, you can enter the joge mode to test the basic running condition of the motor. The joge mode is not affected by other working modes or speed settings.
Page 36
FD3&CD3 伺服驱动器使用指南(User Guidance of FD3&CD3 Driver) 第 34页 3.4 EASY description of the operation process Figure 3-2 EASY operation flow chart Note If there is no operation for 30s, the menu will exit automatically and the user must restart the setting. The entered data takes effect immediately, but can be saved by EA00.
Page 37
FD3&CD3 伺服驱动器使用指南(User Guidance of FD3&CD3 Driver) 第 35页 3.5 Operation process of tunE Figure 3-3 tunE operation flow chart Note: More about the use of products, please visit the official website and download product manuals Download link:http://en.kinco.cn/download/use/servo PC software of the driver please visit the official website and download and install Download link:http://en.kinco.cn/download/software/servo...
