Hubbell KILLARK VSIH Series Installation, Operation, Maintenance Manual

16A, 32A, 63A and 125A EXPLOSION-PROOF AND DUST
IGNITION-PROOF ATTACHMENT PLUGS -
CAUTION:
Before installing, make sure you are compliant with area classifications, as failure to do so may result in bodily injury, death and property damage. Do
not attempt installation until you are familiar with the following procedures. All installation must comply with the applicable Electrical Code(s).
Make sure that the circuit is de-energized before starting installation or maintenance.
Verify that the installation is grounded. Failure to ground will create electrical shock hazards, which can cause serious injury and or death.
IMPORTANT:
Please read these instructions carefully before installing or maintaining this equipment. Good electrical practices should be followed at all times and this
data should be used as a guide only.
Technical information, advice and recommendations contained in these documents is based upon information that Killark believes to be reliable. All the
information and advice contained in these documents is intended for use only by persons having been trained and possessing the requisite skill and
know-how and to be used by such persons only at their own discretion and risk. The nature of these instructions is informative only and does not cover
all of the details, variations or combinations in which this equipment may be used, its storage, delivery, installation, check out, safe operation and
maintenance. Since conditions of use of the product are outside of the care, custody and control of Killark, the purchaser should determine the
suitability of the product for his intended use, and assumes all risk and liability whatsoever in connection therewith.
P/N KIL00921520 FORM NO. K1520 R07/21 ECO-7-012-21
HUBBELL ELECTRICAL PRODUCTS
Killark, A Division of Hubbell Inc. (Delaware)
2112 Fenton Logistics Park Blvd.
Fenton, Missouri 63026 USA
INERIS 20 ATEX 0022X
IECEx INE 20.0020X
CML 21UKEX1362X
INSTALLATION, OPERATION &
MAINTENANCE DATA SHEET

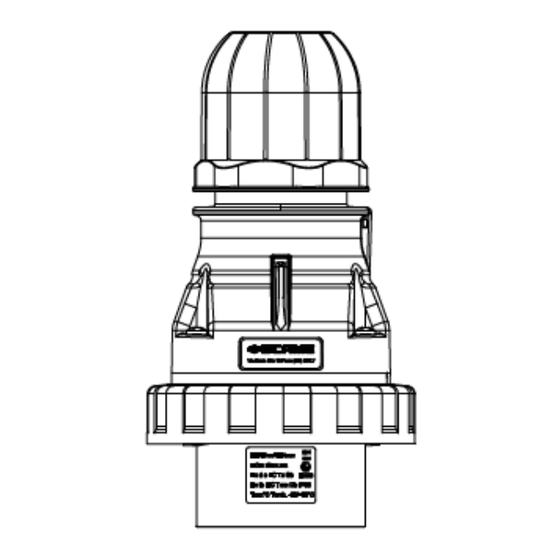

SERIES VSIH
ATTACHMENT PLUGS
SERIES VSIH
Ex eb IIC T3...T6 Gb
o
Ex tb IIIC T80 C Db IP66
Page 1 of 7
