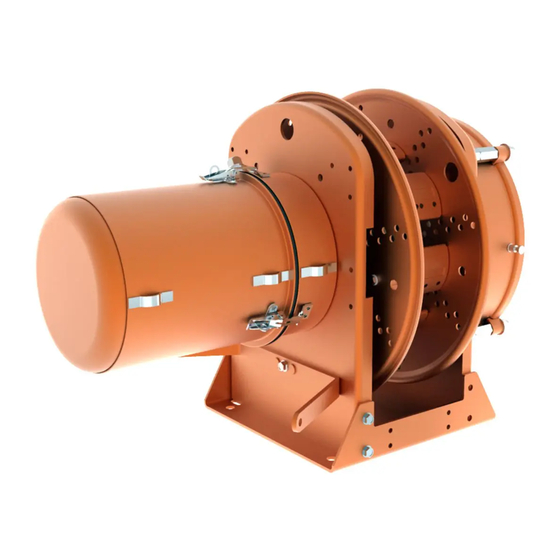

Hubbell GLEASON 602152 Installation And Maintenance Instructions

SPRING OPERATED ELECTRIC CABLE REELS
All units are provided with right hand rotation unless otherwise
specified. This means that spool rotates counter-clockwise to
wind cable when viewing reel from slip ring side.
Clock-type springs provide power for cable take-up. Spring
tension must be adjusted at time of installation to insure
that cable will rewind completely at all times.
INSTALLATION
1. If reel is supplying power to a machine, insure that
machinery is at position closest to reel.
If mounting overhead, provide safety chain between reel
base and mounting surface to prevent accidental reel drop.
2. Securely mount reel in desired position using 3/8"(M10)
bolts. If reel is not equipped with a pivoting mounting
base, be sure spool centerline is aligned with cable run.
3. Position cable guide (optional). Guide must be oriented
so cable pays off reel in a straight line without bends.
Refer to GENERAL ARRANGEMENT DRAWING
on back page.
4. Install cable if not included with reel. Refer to CABLE
INSTALLATION section on back page.

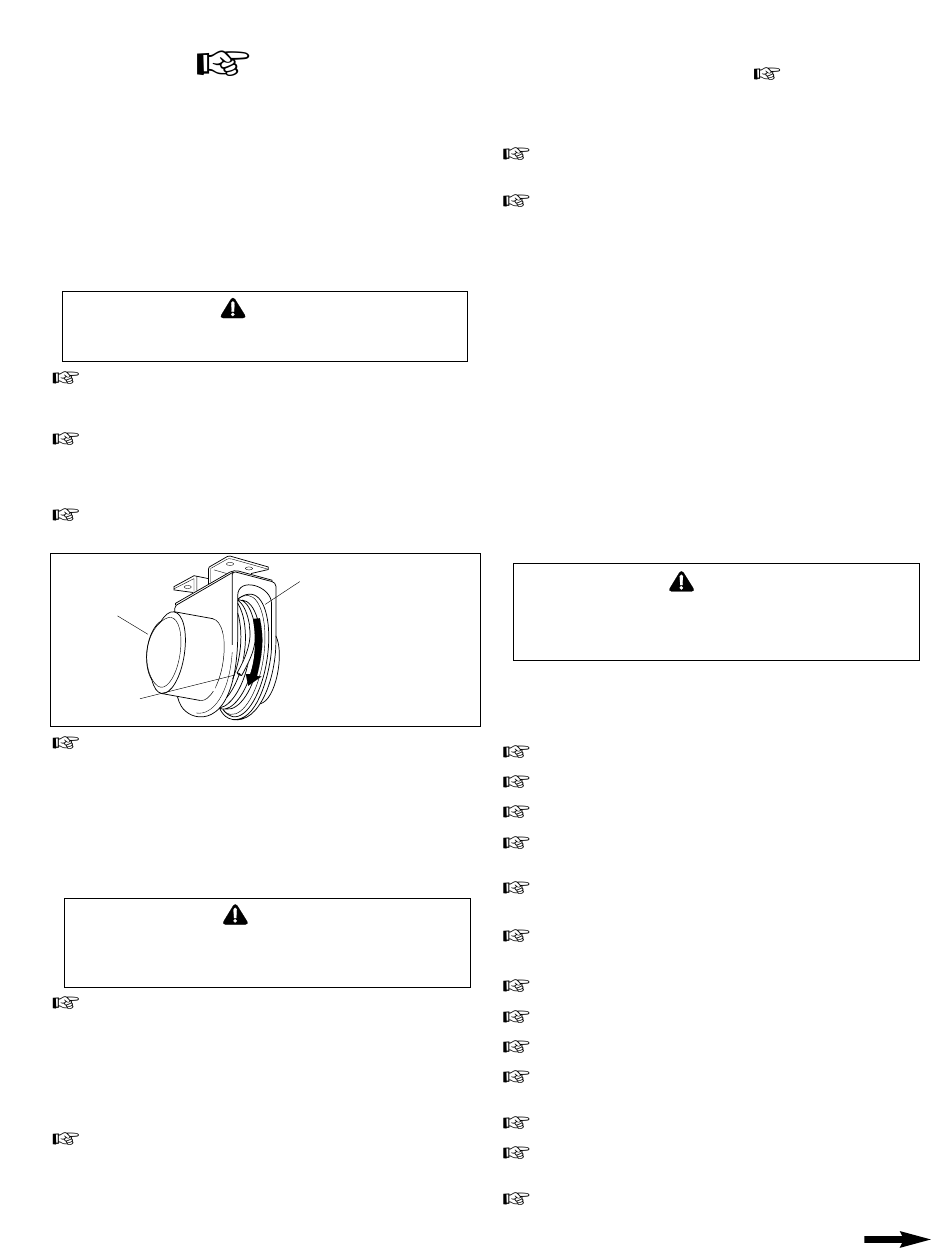

Figure 1
SLIP RING
SIDE
END OF
CABLE
5. Adjust spring tension using one of the following methods:
A. If outer end of cable has not been connected, hold
cable end next to the spool and rotate spool in
clockwise direction (when viewed from slip ring side)
until desired tension is achieved. See Figure 1.
B. If outer end of cable has been connected, remove
the four spring housing screws and rotate the
entire spring housing clockwise (when viewed
from spring side).
Following adjustment, be sure all cable can be drawn off
reel without winding the spring tight. Winding spring tight
could damage spring or cable.
6. Feed cable end out through cable guide (if so equipped)
and pay-out cable to maximum working length. At least
one turn of cable should remain on spool. If spool
locks up prior to reaching required length, either reel
was over-tensioned during step 5 or reel capacity has
been exceeded. Failure to correct this condition will
result in shortened spring life and possible damage to
other reel components.
7. Attach and adjust cable stop. Complete cable working
end connections.
INSTALLATION and MAINTENANCE INSTRUCTIONS
NOTE: These instructions are written for machine pull reels.
If installing or servicing hand pull reel, use only those steps marked with hand
CAUTION
SPOOL
ADJUST SPRING TENSION
BY HOLDING CABLE END
AGAINST SPOOL AND
ROTATING SPOOL.
DO NOT
OVER-TENSION SPRING.
CAUTION
8. If machine pull application or if no-lock operation is
desired, disengage ratchet lock. See following section.
9. Remove slip ring cover and connect individual supply
conductors to terminal block. Replace cover.
10. Turn on power to reel.
RATCHET LOCK
If reel is equipped with ratchet lock, reel is shipped with ratchet
lock "engaged". If constant spring tension is required, lock
may be disengaged by moving the selector lever, located
beneath the spring assembly, to "OFF".
MAINTENANCE
Periodically oil the bronze flange-bushing located on the
slip ring side of the reel.
The self-aligning bushing located on the spring side of
the reel is made of a self-lubricating, wear -resistant
material that needs no further lubrication.
Periodically inspect brushes on the slip ring assembly.
Replace if badly worn. Remove the slip ring side frame half to
gain access to brushes.
SPRING REPLACEMENT
Do not attempt to remove spring from its housing. Clock-
type springs can be dangerous to handle. Removal of
spring from housing could result in personal injury.
The unique SAFETYCHANGE® spring motor consists of a
spring sealed within a housing. A replacement spring is
supplied sealed in its housing and the old unit should be
discarded completely.
1. Turn off all electric power.
2. Disconnect cable from working end connections.
3. Wind cable onto reel to relieve all spring tension.
4. Remove four screws holding spring assembly and
gently slide spring assembly off main shaft.
5. Slide new spring assembly onto shaft and reassemble
reel by reversing above steps.
6. Adjust spring tension. Refer to INSTALLATION, Step 5.
SLIP RING REPLACEMENT
1. Turn off all electric power. Disconnect input wiring.
2. Engage ratchet lock to prevent spool from rotating.
3. Remove reel from mounting base.
4. Remove screws holding slip ring side frame half and
remove frame half.
5. Disconnect cable leads from slip ring terminals.
6. Remove hardware holding slip ring assembly in
position. Pull slip ring assembly off shaft.
7. Install new slip ring assembly on shaft and
re-assemble reel by reversing above steps.
.
WARNING
CONTINUED ON BACK PAGE
