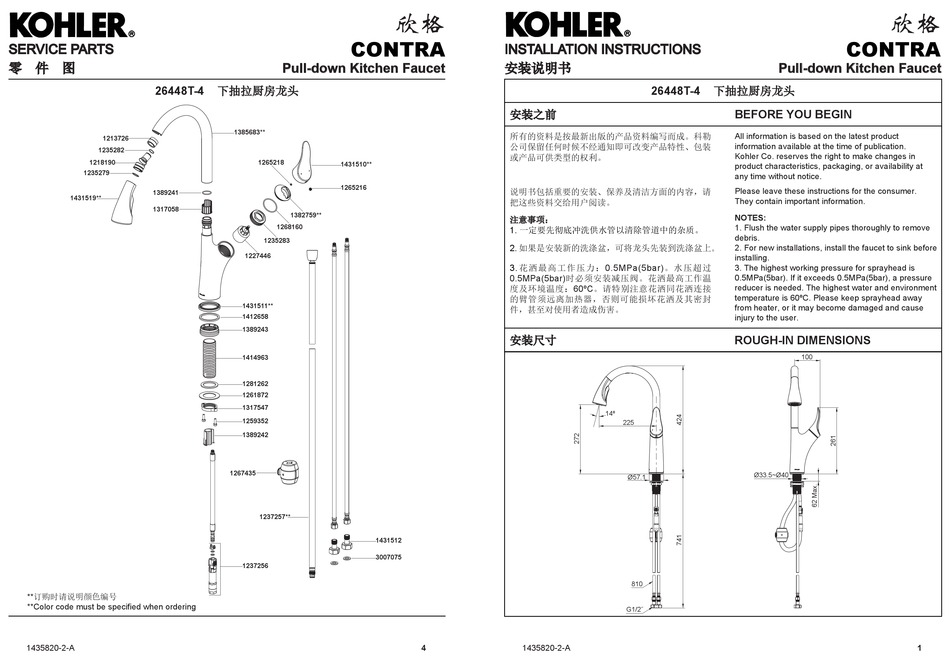

SERVICE PARTS
零 件 图
26448T-4
1213726
1235282
1218190
1235279
1389241
1431519**
1317058
**订购时请说明颜色编号
**Color code must be specified when ordering
1435820-2-A
欣格
CONTRA
Pull-down Kitchen Faucet
下抽拉厨房龙头
1385683**
1265218
1431510**
1265216
1382759**
1268160
1235283
1227446
1431511**
1412658
1389243
1414963
1281262
1261872
1317547
1259352
1389242
1267435
1237257**
1431512
3007075
1237256
INSTALLATION INSTRUCTIONS
安装说明书
安装之前
所有的资料是按最新出版的产品资料编写而成。科勒
公司保留任何时候不经通知即可改变产品特性、包装
或产品可供类型的权利。
说明书包括重要的安装、保养及清洁方面的内容，请
把这些资料交给用户阅读。
注意事项：
1. 一定要先彻底冲洗供水管以清除管道中的杂质。
2.
如果是安装新的洗涤盆，可将龙头先装到洗涤盆上
3.
花洒最高工作压力：0.5MPa(5bar)。水压超过
0.5MPa(5bar)时必须安装减压阀。花洒最高工作温
度及环境温度：60ºC。请特别注意花洒同花洒连接
的臂管须远离加热器，否则可能损坏花洒及其密封
件，甚至对使用者造成伤害。
安装尺寸
4
1435820-2-A
Pull-down Kitchen Faucet
26448T-4
下抽拉厨房龙头
BEFORE YOU BEGIN
All information is based on the latest product
information available at the time of publication.
Kohler Co. reserves the right to make changes in
product characteristics, packaging, or availability at
any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove
debris.
2. For new installations, install the faucet to sink before
。
installing.
3. The highest working pressure for sprayhead is
0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a pressure
reducer is needed. The highest water and environment
temperature is 60ºC. Please keep sprayhead away
from heater, or it may become damaged and cause
injury to the user.
ROUGH-IN DIMENSIONS
14º
225
Ø33.5~Ø40
Ø57.1
810
G1/2˝
欣格
CONTRA
100
1
