INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
26040X-4E2
Single control lavatory faucet with drain-ECO
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves the right to make
changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipe thoroughly to remove debris.
2. If possible, install this faucet before installing the lavatory
3. Inspect the supply tubing for damage and leakage. Replace and maintain as necessary.
4. Observe all local plumbing and building codes.
5. Shut off the water supply to the fitting.
HANDLE OPERATION
Lift handle gently. Turn clockwise for hot water, turn counterclockwise for cold water.

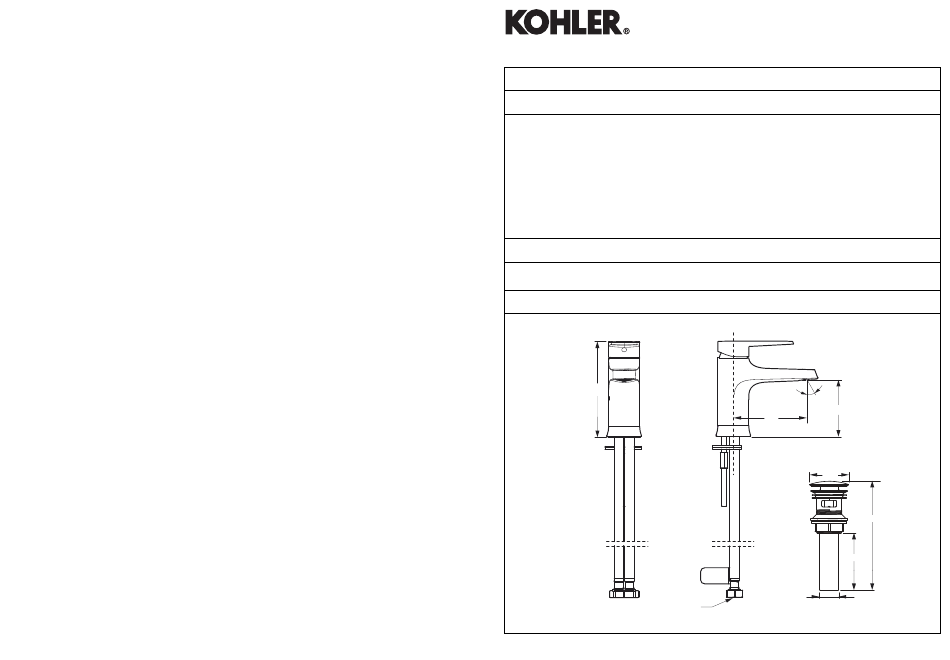

ROUGH-IN DIMENSION
*Dimensions are approximate.
*Unit: mm
149
Note: The recommended dimension for installation can be adjusted according to user preferences and layout.
1436350-2A-A
Single control lavatory faucet
with drain-ECO
18°
88
100
Ø64
178~187
95
Ø32
G1/2
BEAM
1
