Kohler Parallel 22569T-B4 Installation Instructions

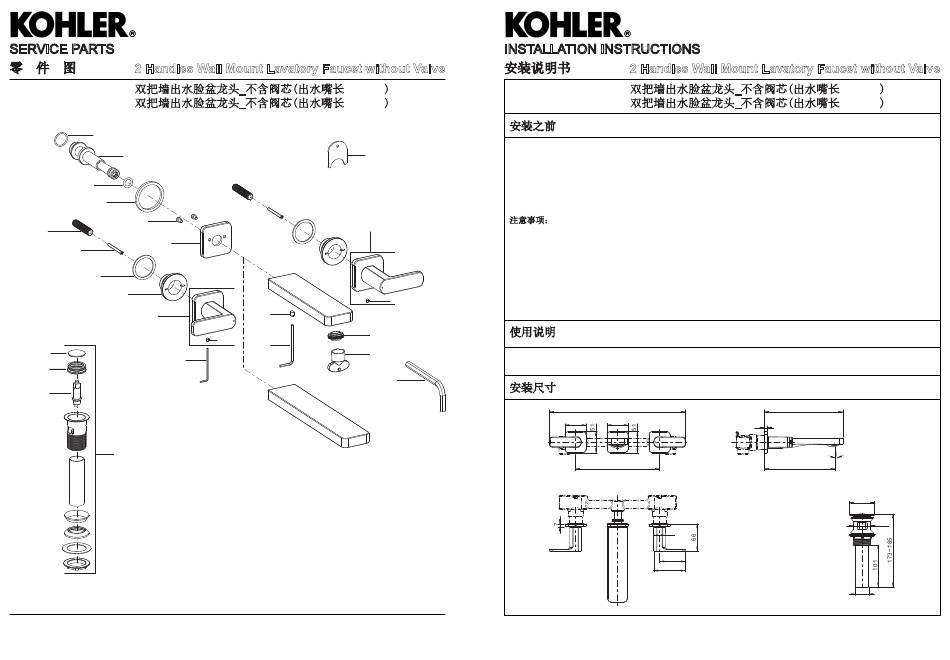

SERVICE PARTS
2 Handles Wall Mount Lavatory Faucet without Valve
零 件 图
22569T-B4
双把墙出水脸盆龙头_不含阀芯(出水嘴长168mm)
22570T-B4
双把墙出水脸盆龙头_不含阀芯(出水嘴长218mm)
870721
1333024
34263
870205
3008520
1333022
1333025**
1040731
871021
1333023
1331677**
1102888**
1046290
1102889
1102892
1095926**
**订购时请说明颜色编号
**Color code must be specified when ordering
1481983-T2-A
若方
PARALLEL
1113469
1331682**
832751
834404
1231664
832751
834638
3006148
1490520
INSTALLATION INSTRUCTIONS
安装说明书
22569T-B4
22570T-B4
安装之前
所有的资料是按最新出版的产品资料编写而成。科勒
公司保留任何时候不经通知即可改变产品特性、包装
或产品可供类型的权利。
说明书包括重要的安装、保养及清洁方面的内容，请
把这些资料交给用户阅读。
注意事项：
1. 一定要先彻底冲洗供水管以清除管道中的杂质。
2. 检查供水管有无损坏和漏水。如需要，进行替换和
维修。
3. 遵守当地管路安装条例。
4. 本产品需与双把墙出水脸盆龙头阀芯31141T-NA搭
配使用。
5. 确保安装此产品之前，双把墙出水脸盆龙头阀芯
31141T-NA已安装完毕。
使用说明
逆时针旋转左把手为热水，顺时针旋转右把手为冷
水。
安装尺寸
51
4
1481983-T2-A
2 Handles Wall Mount Lavatory Faucet without Valve
双把墙出水脸盆龙头_不含阀芯(出水嘴长168mm)
双把墙出水脸盆龙头_不含阀芯(出水嘴长218mm)
BEFORE YOU BEGIN
All information is based on the latest product
information available at the time of publication.
Kohler Co. reserves the right to make changes in
product characteristics, packaging, or availability at
any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove
debris.
2. Inspect the supply tubing for damage and leakage.
Replace and maintain as necessary.
3. Observe local plumbing codes.
4. These products should match with the wall mount
lavatory faucet valve 31141T-NA.
5. Install the wall mount lavatory faucet valve
31141T-NA before installing these products.
HANDLE OPERATION
Turn the left handle counter-clockwise for hot water,
turn the right handle clockwise for cold water.
ROUGH-IN DIMENSIONS
324 22569T-B4: 187
22570T-B4: 237
51
7
200 22569T-B4: 168
22570T-B4: 218
28
62
76
若方
PARALLEL
10°
Ø56
Ø42
Ø31.75
1
