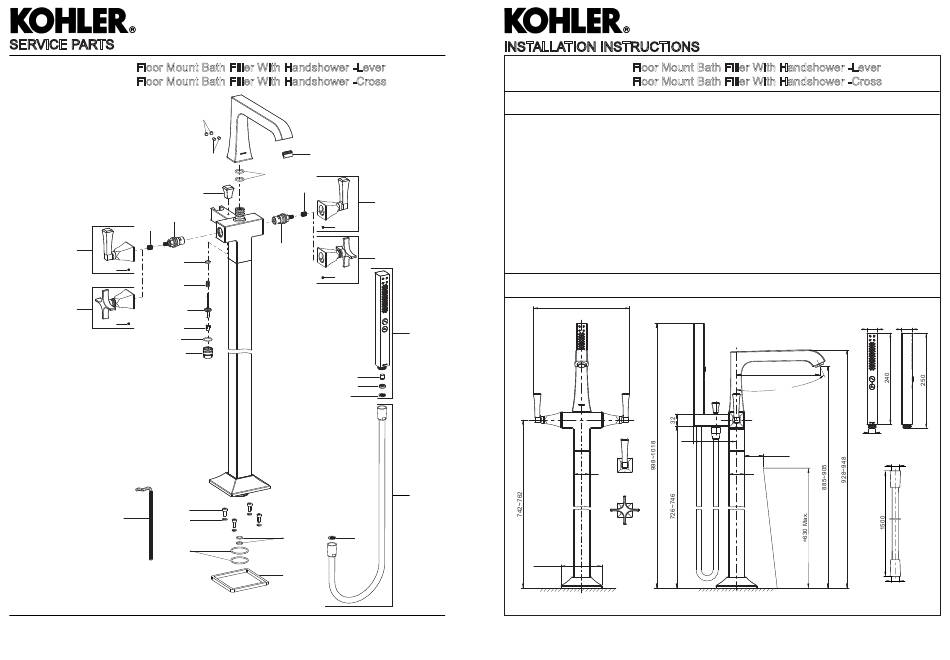

SERVICE PARTS
22559T-4V
Floor Mount Bath Filler With Handshower -Lever
22559T-3S
Floor Mount Bath Filler With Handshower -Cross
1093763**
837207
78125
22559T-4V:1391016**
835016
832751
835018
22559T-3S:1372650**
1383661
832751
835015
74463
835014**
1082901
1177225
65218
1010167
**Color code must be specified when ordering.
1372307-2A-A
MEMOIRS
3008523
834562**
834404
40933
78125
832751
837206
832751
1240266
1030624
77420
77955
77420
1372306
Installation INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Inspect the supply tubing for damage. Replace as necessary.
22559T-4V:1391017**
3. Observe local plumbing codes.
4. The minimum working pressure for the diverter is 0.05MPa(0.5bar).
5. Check for leaks before covering the pipes, repairs as needed.
6. The highest working pressure for handshower is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a pressure reducer is
needed. The highest water and environment temperature is 60ºC. Please keep handshower and shower arm away
from heater, or it may become damaged and cause injury to the user.
22559T-3S:1372651**
7. Please purchase the matched mounting base 97905T when install the faucet.
ROUGH-IN DIMENSIONS
256(For 22559T-4V)
265(For 22559T-3S)
1297484**
1248781**
110×110
* Please purchase the appropriate bathtub according to the dimension.
4
1372307-2A-A
22559T-4V
Floor Mount Bath Filler With Handshower -Lever
22559T-3S
Floor Mount Bath Filler With Handshower -Cross
115
43
22559T-4V
22559T-3S
MEMOIRS
28
28
*221
24.6º
G1/2˝
*70 Min.
G1/2˝
43
Bathtub
G1/2˝
1
