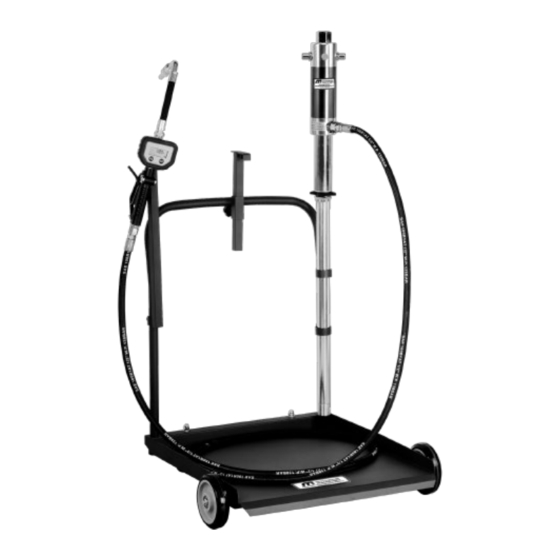

High flow mobile oil dispensing kit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
High Flow Mobile Oil Dispensing Kit
Instruction Manual
OKT583-1-001
OKT585-1-001
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.
REV 03/03/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OKT583-1-001 and is the answer not in the manual?

Questions and answers

Related Manuals for Macnaught OKT583-1-001

Summary of Contents for Macnaught OKT583-1-001

  • Page 1 High Flow Mobile Oil Dispensing Kit Instruction Manual OKT583-1-001 OKT585-1-001 WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required.

  • Page 2: General Safety Regulations

    GENERAL SAFETY REGULATIONS WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product, but must be supplied by the operator.
  • Page 3 1. Installation steps (Note: before connecting and assembling each component, please assemble each component according to the component instructions). Step 1 Step 2 1. Assemble trolley parts 1 according to 1. Install the oil pump assembly 2 into the two 1708002 trolley instructions.

  • Page 4: Limited Warranty

    3 years from date of purchase, but not including wearing parts. 2. Macnaught’s liability is limited to replacement or repair of defective material within the warranty period, when returned freight prepaid to the distributor or their designated service depot.
  • Page 5 TECHNICAL DETAILS - TROLLEY ASSEMBLY Item No. Drums Weight Drums Diameter 1708002 600mm 180-220kgs EXPLODED AND PARTS LIST Part No. Description Q’ty Part No. Description Q’ty Accessories A Swivelling Wheel Drum Holder Support Hexagon Bolt Handle Washer Pump Support Wheel Hexagon Screw Set Axle Stopper...

  • Page 6: Safety Instructions

    TECHNICAL DETAILS - OIL PUMP ASSEMBLY Item No. 1701036 1701056 Drum application 180-220L / 48-58gallon 180-220L / 48-58gallon Pressure ratio Air inlet pressure 5-8bar / 70-115psi 5-8bar / 70-115psi Max. fluid pressure 24bar / 350psi 40bar / 580psi Air motor effective diameter 63mm / 2.5"...

  • Page 7: Troubleshooting

    TROUBLE SHOOTING Problem Cause Solution The pump continues to operate 1. The is a oil leak at some point of 1. Check and tighten unions. Repair after the gun trigger has been the circuit. the leak. released. 2. Valve sets (part No.39, 40, 41) 2.

  • Page 8: How To Use

    HOW TO USE Directly Fitted Pump into the Drum 1. Insert the suction tube of pump into the drum and secure with ring nut, suitable for commercial drums with 57 diameter hole and threading 2” BSP. 2. Fit a oil delivery tube for oil outlet of the air operated pump using only high quality tubes (normally 3/4”, according to DIN-SAE norms(), by means of 3/4”...
  • Page 9 EXPLODED AND PARTS LIST - 3:1 OIL PUMP...
  • Page 10 Part No. Description Description Part No. Air motor cover Piston connect cover O-ring Suction tube Air motor shell inside Piston shaft Connector Slider O-ring Press piece Screw Spring circlip Small circlip Ball Valve seat Quick coupling Filter Air center cover Silencer Circlip U seal...
  • Page 11 EXPLODED AND PARTS LIST - 5:1 OIL PUMP...
  • Page 12 Part No. Description Part No. Description Side cover Air motor cover Outlet Air motor shell inside Suction tube Slider Spring circlip Bracket Air center cover Valve seat Press piece Filter Slider Quick coupling Securing washer 102* Silencer Goasket Small circlip Screw Soft gasket Silence...

  • Page 13: Safety Precautions

    TECHNICAL DETAILS - OIL CONTROL VALVE 18123522 Item No. 1/2" NPT Inlet Flexible nozzle, auto tip Configure 1-35L/min Flow rate 0.5-100bar Operating pressure range Max operation temperature 60°C Accuracy ±0.5% Battery ER14250 3.6V This manual contains important warnings and information. Read and keep for reference.

  • Page 14: New Installation

    INSTALLATION Typical Installation Fig. 1 shows a typical installation. The installation shown in Fig. 1 is only a guide. The components shown are typical; however, it is not a complete system design. Contact your distributor for assistance in designing a system to suit your particular needs.

  • Page 15: Operation

    1: Trigger 2: Nozzle 3: Tip 4: Swivel nut Fig. 2 Remark: If you want to adjust the angle of the nozzle, you can loosen the #4 swivel nut, then turn the nozzle to your desired position and tighten the nut. Existing Installation 1.
  • Page 16 Display and Button Usage AREA 1: FOR LAST DISPENSE CYCLE AREA 2: FOR MEASUREMENT UNITS AREA 4: FOR BATTERY AREA 3: FOR ACCUMULATED CAPACITY TOTAL Notes: It will flashing when battery voltage less than 3.3V; Menu: MOVING THE NUMBERS FOR Reset: CHOOSING THE UNITS AND SETTING ADJUSTING THE CALIBRATION AND CORRECTION FACTOR...
  • Page 17 Pressure Relief Procedure Pressurized Equipment Hazard: The equipment stays pressurized Fluid under high pressure can be injected through the skin and cause serious injury. To reduce the risk of an injury from injection, splashing fluid, or moving parts, follow the pressure relief procedure whenever you: 1.

  • Page 18: Troubleshooting Guide

    TROUBLE SHOOTING GUIDE Relieve the pressure before you check or repair the dispensing valve. Be sure all other valves and controls and the pump are operating properly. To reduce the risk of serious injury whenever you are instructed to relieve pressure, always follow the pressure relief procedure.
  • Page 19 EXPLODED AND PARTS LIST 1-13 1-12 3-19 1-11 1-10 3-21 3-20 3-18 3-14 3-17 3-15 Wearing parts: 3-10 Q’ty Part No. Description 3-16 3-9* O-ring 3-13* Battery 3-13 3-19* waterproof protector 3-12 3-20* Seal washer 3-11 Part No. Description Q’ty Part No.
  • Page 20 Macnaught Americas (813) 628-5506 | info@macnaughtusa.com * Read Manual Before Use! Size: 145x210mm 157克铜版纸 REV 03/11/22 2.09.05.30.1078...
