Maintenance (Pump) - MULTIQUIP MAYCO LS400 Operation And Parts Manual

Engine Oil
Engine Air Filter
Fuel Filter
Hydraulic Oil Level
Lubrication Box
Replace Hydraulic Oil
Clean Hydraulic Filters
Axle Crank
Grease Shuttle Tube and Hopper
Outlet Zerk Points
Check System Pressure
Check Hardware for Tightness
Check Cutting Ware Ring and Plate
Check Trailer Brakes Function
Check Brake Lights
Check Tire Conditions
Inspect Saftey Devices / Decals
Check Wheel Bearings
Check Battery
Inspect Brake Lining
Visually Check for Oil Leaks
DANGER - AMPUTATION RISK
During routine maintenance or removing material
blockage, you will be required to put your hand in the
concrete cylinders or near the shuttle tube. You are at
EXTREME RISK of injury or AMPUTATION if the
engine is running or if pressure is in the hydraulic
system.
Prior to performing any maintenance on the pump,
follow described lock out-tag out procedures. Stop the
engine by turning off the ignition switch and remove
the starter key. Place a "DO NOT OPERATE" tag
over the switch and disconnect the battery. The
pressure reading on the
accumulator pressure
gauge MUST read
ZERO. ALWAYS make
sure the accumulator
circuit pressure reads
zero prior to performing any maintenance on the pump.
PAGE 36 — MAYCO LS400/LS500 PUMP — OPERATION AND PARTS MANUAL — REV. #6 (09/19/11)
LS400/LS500 PUMP — MAINTENANCE (PUMP)

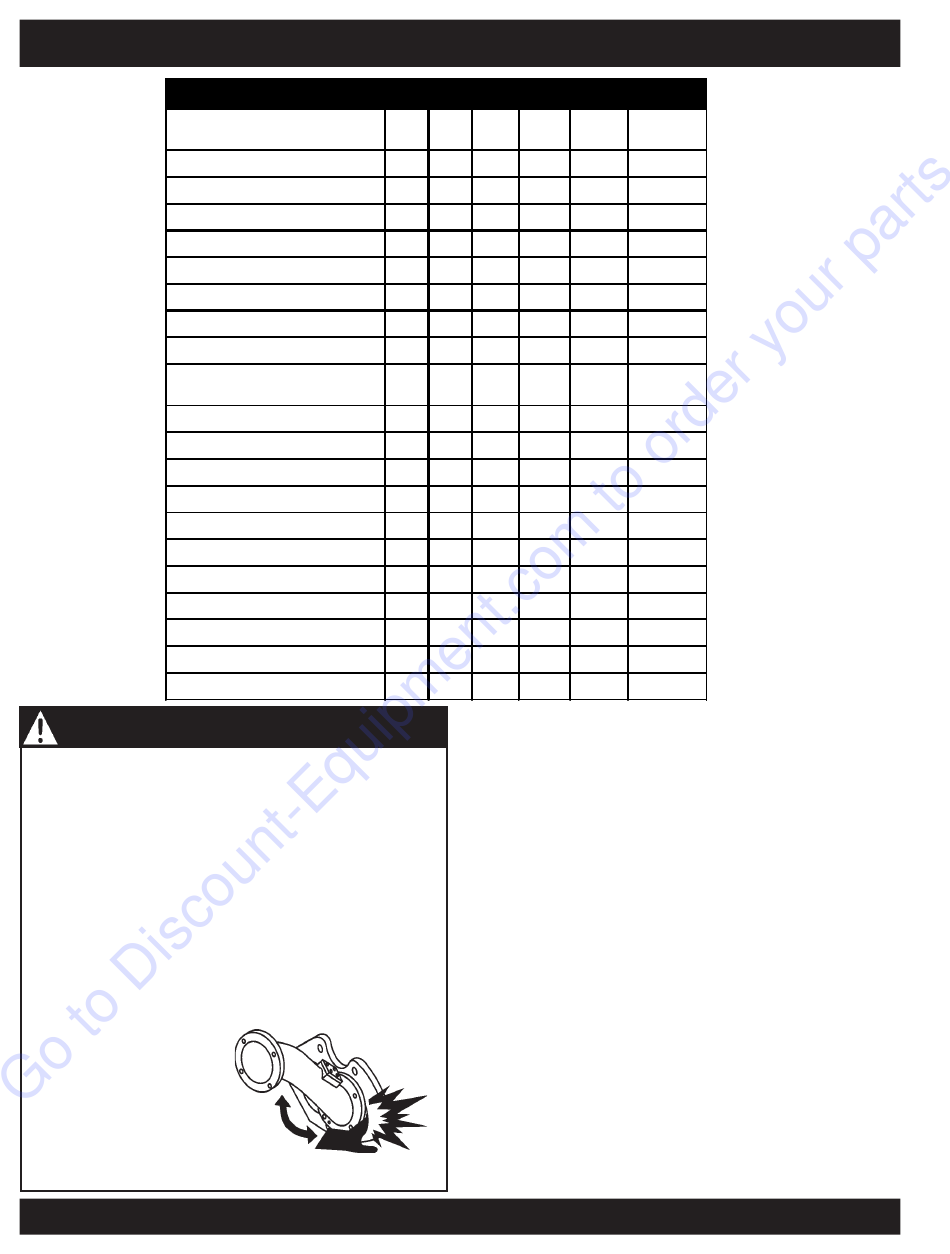

TABLE 5. MAINTENANCE CHECK SCHEDULE
Daily Hour-
ly
X
X
X
X
X
X
X
X
X
Wee- Month- 6-Mont- Operational
kly ly hs Hours
X
X
X
500 hrs.
1000 hrs.
X 500 hrs.
X 40 hrs.
X 40 hrs.
X
X
X
X
CLEANING THE PUMP AND DELIVERY SYSTEM
Cleaning the pump is a very important operation as it
determines how the machine will pump the next time it is
used.
At the end of every pour, or because of long delays during a
pour, the pump and delivery system must be thoroughly
cleaned by removing all concrete material.
1. Following the Clearing Concrete Blockage operating
procedure, ensure that there is no blockage in the hose
and line or in the shuttle tube. If a blockage exists, clear
it.
2. Pump concrete until the opening of the concrete cylinder
intake in the hopper is visible.
3. Stop the pump.
4. Carefully disconnect the first hose joint at the shuttle
tube discharge elbow.
2 hrs
2 hrs
