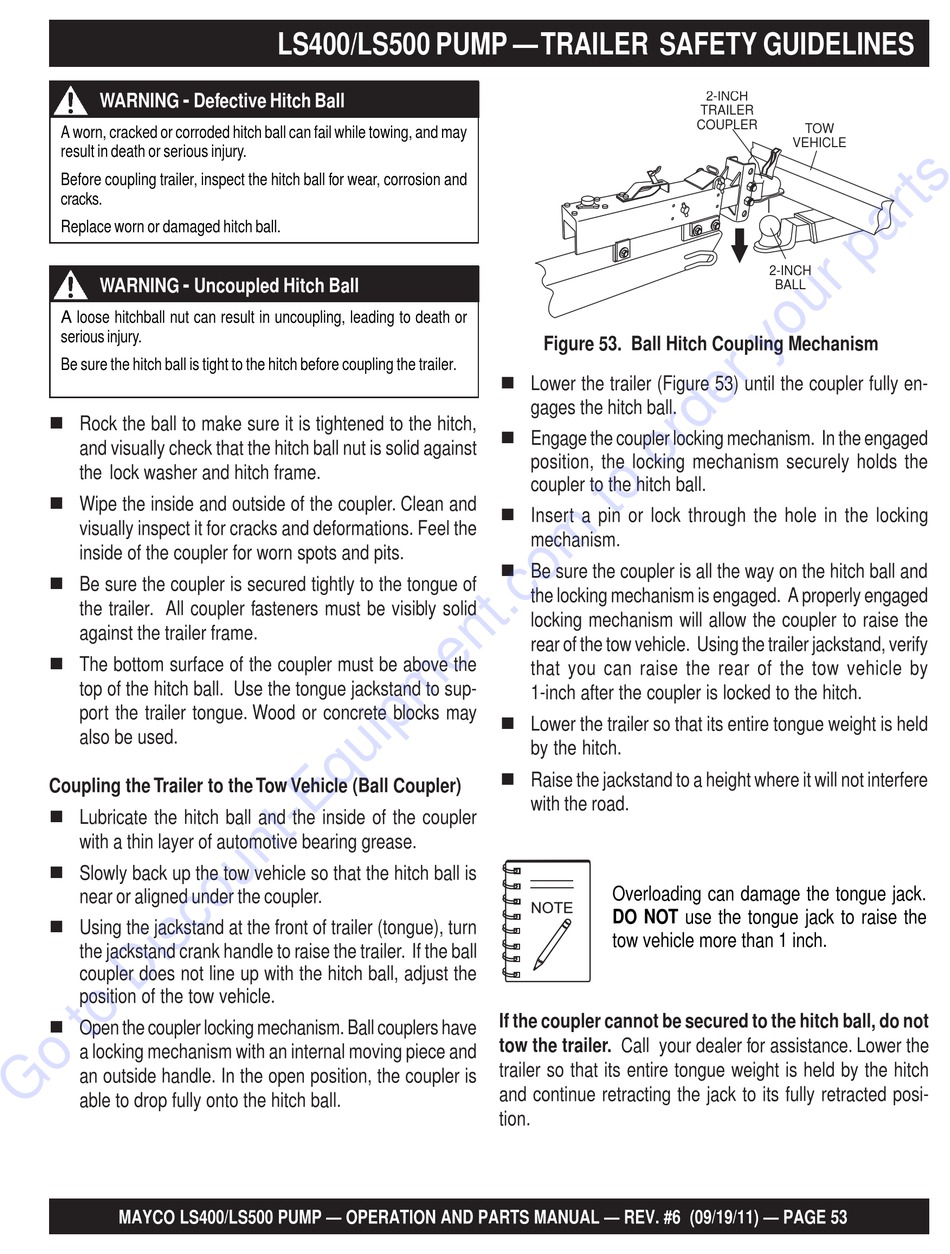

MULTIQUIP MAYCO LS400 Operation And Parts Manual page 53

-
WARNING Defective Hitch Ball
A worn, cracked or corroded hitch ball can fail while towing, and may
result in death or serious injury.
Before coupling trailer, inspect the hitch ball for wear, corrosion and
cracks.
Replace worn or damaged hitch ball.
-
WARNING Uncoupled Hitch Ball
A loose hitchball nut can result in uncoupling, leading to death or
serious injury.
Be sure the hitch ball is tight to the hitch before coupling the trailer.
 Rock the ball to make sure it is tightened to the hitch,
and visually check that the hitch ball nut is solid against
the lock washer and hitch frame.
 Wipe the inside and outside of the coupler. Clean and
visually inspect it for cracks and deformations. Feel the
inside of the coupler for worn spots and pits.
 Be sure the coupler is secured tightly to the tongue of
the trailer. All coupler fasteners must be visibly solid
against the trailer frame.
 The bottom surface of the coupler must be above the
top of the hitch ball. Use the tongue jackstand to sup-
port the trailer tongue. Wood or concrete blocks may
also be used.
Coupling the Trailer to the Tow Vehicle (Ball Coupler)
 Lubricate the hitch ball and the inside of the coupler
with a thin layer of automotive bearing grease.
 Slowly back up the tow vehicle so that the hitch ball is
near or aligned under the coupler.
 Using the jackstand at the front of trailer (tongue), turn
the jackstand crank handle to raise the trailer. If the ball
coupler does not line up with the hitch ball, adjust the
position of the tow vehicle.
 Open the coupler locking mechanism. Ball couplers have
a locking mechanism with an internal moving piece and
an outside handle. In the open position, the coupler is
able to drop fully onto the hitch ball.
MAYCO LS400/LS500 PUMP — OPERATION AND PARTS MANUAL — REV. #6 (09/19/11) — PAGE 53
LS400/LS500 PUMP — TRAILER SAFETY GUIDELINES
Figure 53. Ball Hitch Coupling Mechanism
 Lower the trailer (Figure 53) until the coupler fully en-
gages the hitch ball.
 Engage the coupler locking mechanism. In the engaged
position, the locking mechanism securely holds the
coupler to the hitch ball.
 Insert a pin or lock through the hole in the locking
mechanism.
 Be sure the coupler is all the way on the hitch ball and
the locking mechanism is engaged. A properly engaged
locking mechanism will allow the coupler to raise the
rear of the tow vehicle. Using the trailer jackstand, verify
that you can raise the rear of the tow vehicle by
1-inch after the coupler is locked to the hitch.
 Lower the trailer so that its entire tongue weight is held
by the hitch.
 Raise the jackstand to a height where it will not interfere
with the road.
Overloading can damage the tongue jack.
DO NOT use the tongue jack to raise the
tow vehicle more than 1 inch.
If the coupler cannot be secured to the hitch ball, do not
tow the trailer. Call your dealer for assistance. Lower the
trailer so that its entire tongue weight is held by the hitch
and continue retracting the jack to its fully retracted posi-
tion.
2-INCH
TRAILER
COUPLER
TOW
VEHICLE
2-INCH
BALL
