STARTING PROCEDURE
WARNING - GENERAL SAFETY GUIDELINES
DO NOT attempt to operate this concrete pump until
the Safety, General Information and Inspection
sections have been read and understood.

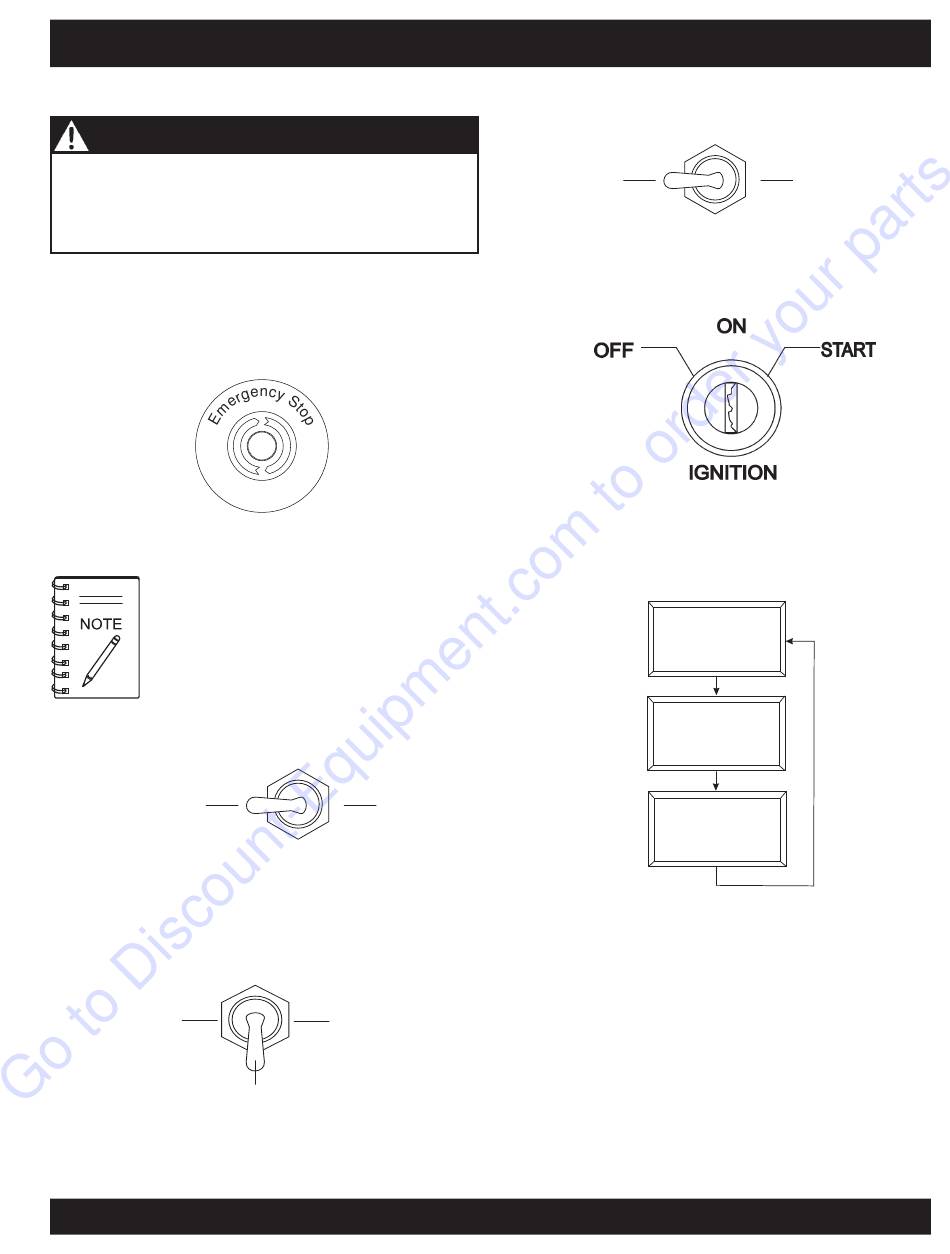

1. Locate the Emergency Stop Switch (Figure 19) on the
Hydraulic Pump Control Box. Turn the Emergency Stop
switch clockwise and release (open). This will allow the
engine to start.
Figure 19. Emergency Stop Switch
If the Emergency Stop switch is in the
CLOSED position (stop), engine will not start.
To star t the engine, make sure the
Emergency Stop switch is in the OPEN
position (fully extended).
2. Turn the Cylinder Stroke Control Switch to the
AUTOMATIC position (Figure 20).
AUTOMATIC
Figure 20. Cylinder Stroke
Control Switch (Automatic)
3. Place the Pumping Control Switch to the CENTER
OFF position (Figure 21) for normal pumping operation.
LOCAL
CENTER
Figure 21. Pumping Control Switch (OFF)
MAYCO LS400/LS500 PUMP — OPERATION AND PARTS MANUAL — REV. #6 (09/19/11) — PAGE 27
LS400/LS500 PUMP — START-UP PROCEDURE
JOG
REMOTE
OFF
4. Place the Direction Control Switch to the FORWARD
position (Figure 22).
FORWARD
Figure 22. Direction Control Switch (FORWARD)
5. To start the engine, insert the key (Figure 23) into the
ignition switch and turn the key to the ON position.
Figure 23. Ignition Switch
6. When the ignition key is in the ON position, the Digital
Readout Screen (primary) will cycle through 3 displays
as shown in Figure 24.
LS 400 OFF
0000 ENG RPM
BATTERY 12.5 V
LOW OIL PSI
LS 400 OFF
0000 ENG RPM
BATTERY 12.5 V
LOW RPM FAULT
LS 400 OFF
0000 ENG RPM
BATTERY 12.5 V
END OF MESSAGE
Figure 24. Primary Screen (Ignition Key ON)
7. Turn the key to the START position and listen for the
engine to start. In warm weather let engine warm up for
5 minutes. In cold weather let engine warm up for 10
minutes.
