Summary of Contents for Viper SL1610SE

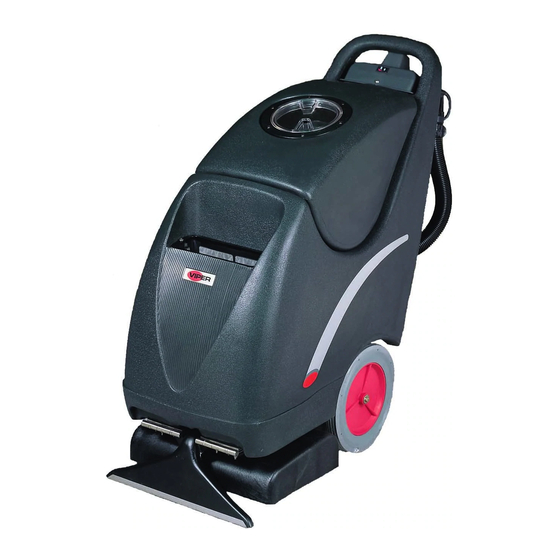

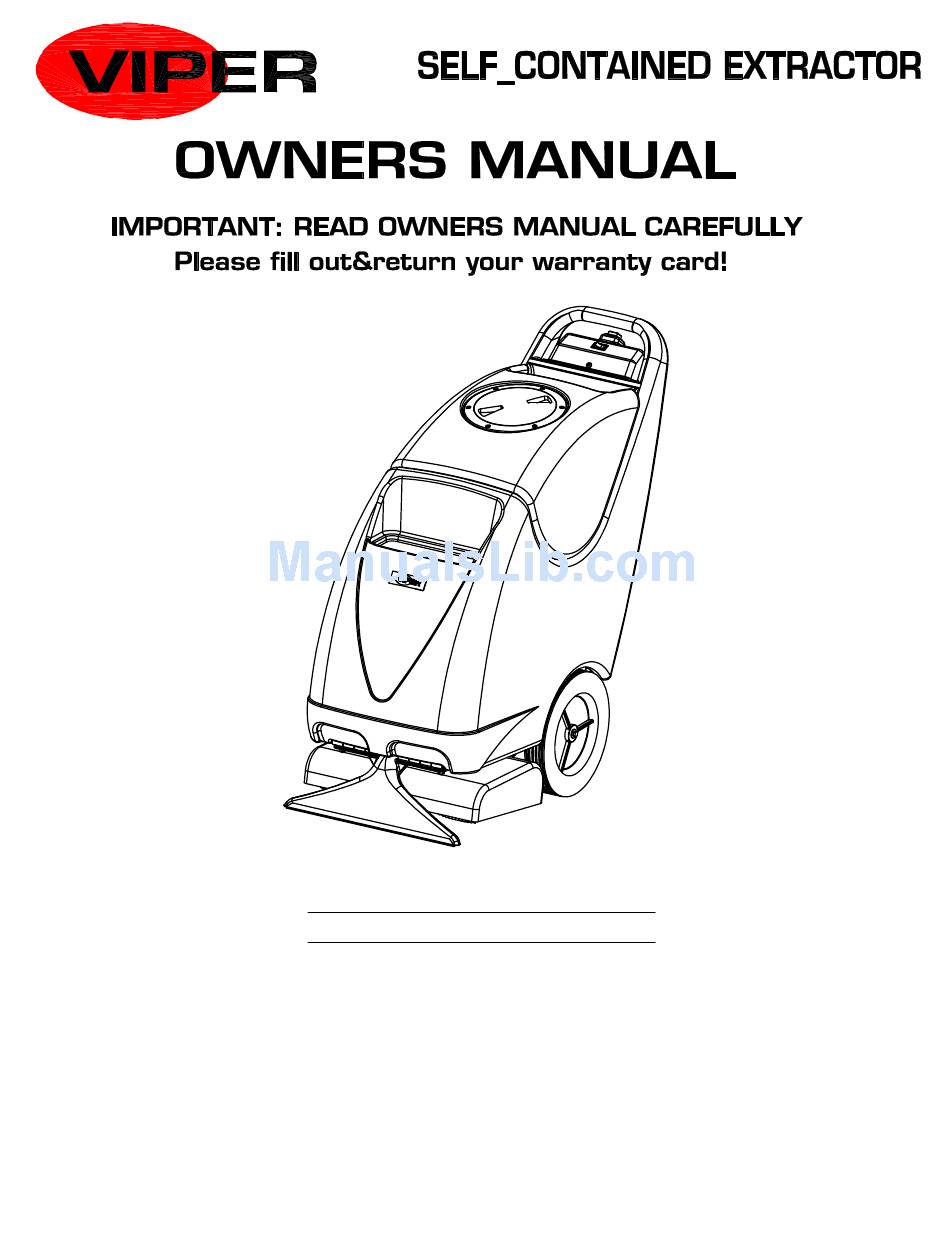

- Page 1 MODEL # SL1610SE SERIAL # VIPER INDUSTRIAL PRODUCTS VIPER...exceptional P.O. BOX 104 HAMILTON,MI 49419 value [866] 418-4737 Rev.00(05-06) [866] 41-VIPER VV67149U...
-
Page 2: Table Of Contents
CONGRATULATIONS on your purchase of a Viper product, and welcome to the V.I.P. family. We appreciate your business and will do everything in our power to keep you happy with your purchase for many years to come. As part of the V.I.P. family, you are entitled to the best protection by one of the most comprehensive warranties in the industry. -
Page 3: Machine Components
MACHINE COMPONENTS 1) Vacuum / pump on/off switch 7) Spray jets 2) Brush circuit breaker 8) Brush assembly 3) Brush / spray on/off button 9) Pickup head 4) Drain hose 10) Solution tank fill port 5) Accessory tool solution hookup 11) Recovery tank lid 6) Br ush raise and lower foot pedal... -
Page 4: Safety Precautions
1) Do not operate machine: - Unless trained and authorized - Unless you have read and SAFETY PRECAUTIONS understand operators manual - In flammable or explosive areas. - With damaged or modified cord or GROUNDING INSTRUCTIONS General – This carped extraction machine plug. -
Page 5: Machine Set Up
Report any carton to extracting carpet. damage to carrier immediately. CARPET EXTRACTING Check carton contents to ensure carton is complete. Contact your Viper distributor if 1) Turn on vacuum / pump switch. anything is missing. NOTE: Solution will only spray when Contents: the brush / spray button is pushed. -
Page 6: Machine Maintenance & Storage
3) Continually check for foam buildup in 2) Remove the solution tank filter at the fill area and place end of “bleeder” recovery tank. Use a distributor recommended foam control solution. hose into the bottom of the tank. NOTE: Excessive foam buildup will not 3) Turn on vacuum / pump switch &... - Page 7 system again with 3 gallons of clean water. 2) Inspect machine for water leaks. 3) Lubricate wheels with a water resistance lubricant. 4) Check machine for loose or missing nuts, screw and bolts and replace as necessary. MACHINE STORAGE 4) Remove and inspect brass spray jets. If 1) Prior to storing the machine, ensure the necessary, clean jets in acetic acid solution and recovery tanks are clean...
-
Page 8: Basic Troubleshooting
Machine doesn't Not plugged in to power source Plug into a grounded outlet work Faulty power cable Contact Viper Distributor Faulty extension power cable Replace with new extension power cable Building circuit breaker tripped Reset circuit breaker Solution pump not... -
Page 10: Parts Lists
PARTS LIST PART DIA NO DESCRIPTION NUMBER REQ'D VV96001S CLEAR DOME VV60287A GASKET,CLEAR DOME VF13491 SCREW RHM M4X12 SST VV67109 BEND,TUBE VV67301 COUPLER VV67302 GASKET,COUPLER VV67108 ELBOW VF81226 COUPLER VAC HOSE VV67705 DRAIN HOSE VV67113-1 VAC HOSE VV10113 CLAMP,HOSE 2" VV20509 SCREW,RHM M5X10 SST VV13601... - Page 11 PARTS LIST PART DIA NO DESCRIPTION NUMBER REQ'D VV60509 GASKET,SOLUTION,INTAKE VV20276 WASHER,PLAIN VV80125 COUPLING VV10411 STRAINER,LINE VV67101 SOLUTION TANK VV67035A LOGO VV67107 FILTER VA13471 SCREW,ST5X10 VV67102 RECOVERY TANK VF81504 FLOAT, SHUT-OFF VV67305 BEND VV96002 BASEMENT,CLEAR DOME...
- Page 13 PARTS LIST PART DIA NO DESCRIPTION NUMBER REQ'D VV80208 COUPLER,QUICK CONNECT VV20274 WASHER,PLAIN,Ø13.5XØ32X1.5 VV20274A WASHER,PLAIN,Ø14XØ32X1.5 VV80115 ELBOW,STRECT,45° VV80128 BARB,HOSE VV10114 CLAMP,HOSE,3/8" VV67114 HOSE,HIGH PRESSURE VV67607 BARB,PUMP VV67604 SOLUTION SOLENOID,110V/60HZ VV67606 CONNECTOR,THREE-WAY VV67603 CONNECTOR VV67602 BARB,PUMP VV67601 MOUNTING FRAME,PUMP VV67605 PUMP,115V,100PSI VF81503 GASKET,VAC MOTOR VV67154...
- Page 14 PARTS LIST PART DIA NO DESCRIPTION NUMBER REQ'D VV67115 HOSE,SPRAYING VV67120 CLAMP VA13473 SCREW,RHM,M4X16,SST VV67405 STRAINER VV13635 SCREW,RHM,M5X20,SST GT13014 NUT,NYLON,INSERT,M4 VV67106 SPACER VA13478 SCREW,M6X35,HEX VV67103A FOOT STEP VF14127 SCREW,RHM,M6X20,SST VV67121 ANTISKID PLATE VV60113S WASHER,WHEEL,AL VA75004 WHEEL,10" VF13604 WASHER,Ø5 VV13634 SCREW,RHM,M5X30,SST VV67200 BOTTOM PLATE,ASSY VV67505...
- Page 16 PARTS LIST PART DIA NO DESCRIPTION NUMBER REQ'D VV67403-2A LIFT BAR VV99926-1 RECTIFIER VV13601 WASHER,LOCK,SST,Ø5 VV13633 NUT,SST,M5 VV13634 SCREW,SST,PH,M5X30 VA13475 SCREW,PH,SST,M5X25 VV67407 SPRING VV20501 SCREW,PH,SST,M5X14 VV13662 WASHER,PLAIN,Ø5XØ12X1 VV67401 MOUTING BASE,BRUSH VV80128 BARB,HOSE VV67423 INSERT,SPRAYER BODY VV67421 SPRAYER BODY VV67422 SPRAY TIP VV67435 MOTOR,110V VV67433...
