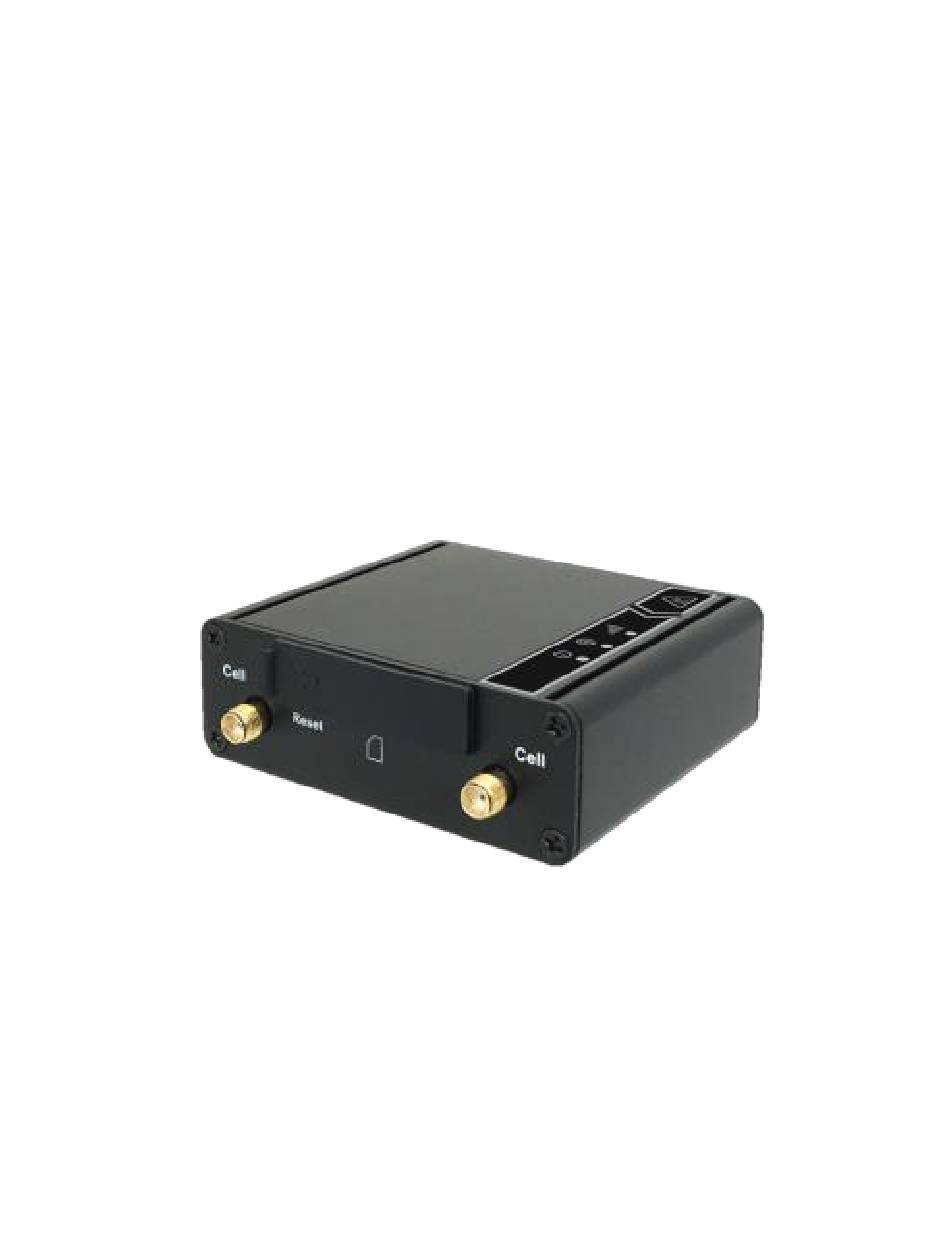

5G Ethernet Modem
IDG450-0GE0C (5G NR)
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDG450-0GE0C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amit IDG450-0GE0C

Summary of Contents for Amit IDG450-0GE0C

  • Page 1 5G Ethernet Modem IDG450-0GE0C (5G NR) User Manual...

  • Page 2: Table Of Contents

    5G Ethernet Modem Chapter 1 Introduction ............................4 1.1 Introduction ............................. 4 1.2 Contents List ........................... 5 1.2.1 Package Contents ........................5 1.3 Hardware Configuration........................7 1.4 LED Indication ..........................8 1.5 Installation & Maintenance Notice ....................8 1.5.1 SYSTEM REQUIREMENTS ....................8 1.5.2 WARNING ...........................
  • Page 3 5G Ethernet Modem 3.1.4 SSH ............................ 32 3.1.5 Remote Administrator ......................32...

  • Page 4: Chapter 1Introduction

    Chapter 1Introduction 1.1 Introduction Congratulations on your purchase of AMIT IDG450 M2M 5G Modem. With this AMIT 5G modem you have made a great first step in the world of connected Internet of things (IOT) by simply inserting a SIM card from the local mobile carrier into this device to get things connected.

  • Page 5: Contents List

    5G Ethernet Modem 1.2 Contents List 1.2.1 Package Contents #Standard Package Items Description Contents Quantity IDG450-0GE0C 5G Ethernet Modem Cellular Antenna-Japan 4pcs Cellular Antenna-Taiwan 4pcs RJ45 Cable USB Type C Cable(1M) #Optional Package Items Description Contents Quantity SB310-0520 ●AC INPUT: 100-240V ●DC OUTPUT: 5V 2A...
  • Page 6 5G Ethernet Modem PS1010-050HIB200 ●AC INPUT: 100-240V ●DC OUTPUT: 5V 2A USB AC Power ●DC PLUG: USB Adapter with Core ●Dimension:67*42.5*49.4mm for TW, USA, EU ●SAFETY: UL, CE, FCC ●Working Temperature： 0°C~ -40°C left 1 set Wall mount kit (L-shaped iron piece: screw x 4 IDG450 housing: screw x4) right 1 set...

  • Page 7: Hardware Configuration

    5G Ethernet Modem 1.3 Hardware Configuration  Right View Power Antenna (USB-C) Antenna Ethernet  RightView Reset Antenna Button Slot Antenna ※Reset Button RESET button provides user a quick and easy way to resort the default setting. Press the RESET button continuously for 6 seconds, and then release it.

  • Page 8: Led Indication

    5G Ethernet Modem 1.4 LED Indication LED Color Indication Description Steady On: Device power is on Blue Off: Device power is off Power Red and Steady On: Cellular is not registered to network. Blue Red and Flash: Cellular is registering to network. Blue and Steady On: The device registers to 5G network.

  • Page 9: Warning

    5G Ethernet Modem 1.5.2 WARNING Only use the power adapter that comes with the  package. Using a different voltage rating power adaptor is dangerous and may damage the product. Do not open or repair the case yourself. If the ...
  • Page 10 5G Ethernet Modem Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 11: Hot Surface Caution

    5G Ethernet Modem 1.5.3 HOT SURFACE CAUTION CAUTION: The surface temperature for the metallic enclosure can be very high! Especially after operating for a long time, installed at a closed cabinet without air conditioning support, or in a high ambient temperature space.

  • Page 12: Product Information For Ce Red Requirements

    5G Ethernet Modem 1.5.4 Product Information for CE RED Requirements The following product information is required to be presented in product User Manual for latest CE RED requirements. (1) Frequency Band & Maximum Power 1.a Frequency Band for 5G NR /4G LTEConnection (for RM520N-GL version) Band number Operating Frequency Max output power...
  • Page 13 5G Ethernet Modem N66 Uplink: 1710-1780MHz Downlink: 2110-2200MHz N71 Uplink: 663-698MHz Downlink: 617-652MHz N75 Downlink: 1432-1517MHz N76 Downlink: 1427-1432MHz LTE & 5G NR HUPE Bands N38 Uplink: 2570-2620MHz (n38/n40/n41/n77/n78/n79) Downlink:2570-2620MHz N40 Uplink: 2300-2400MHz Downlink: 2300-2400MHz N41 Uplink: 2496-2690MHz Downlink: 2496-2690MHz 26+2/-3 dBm N77 Uplink: 3300-4200MHz Downlink: 3300-4200MHz...
  • Page 14 5G Ethernet Modem Downlink: 791-821 MHz B25 Uplink: 1850-1915 MHz Downlink: 1930-1995 MHz B26 Uplink: 814-849 MHz Downlink: 859-894 MHz B28 Uplink: 703-748 MHz Downlink: 758-803 MHz B29 Downlink: 711-728 MHz B30 Uplink: 2305-2315 MHz Downlink: 2350-2360 MHz B32 Downlink: 1452-1496 MHz B48 Uplink: 3550-3700MHz Downlink: 3550-3700MHz B66 Uplink: 1710-1780MHz...
  • Page 15 Ensure the unit is fixed tightly to reduce the likelihood of injury due to exposure to mechanical hazards if dropped. (5) Manufacture Information Manufacture Name: AMIT Wireless Inc. Manufacture Address: No. 28, Lane 31, Sec. 1, Huandong Rd., Sinshih Dist., Tainan 74146, Taiwan...

  • Page 16: Hardware Installation

    5G Ethernet Modem 1.6 Hardware Installation This chapter describes how to install and configure the hardware 1.6.1 Mount the Unit The IDG450 series can be placed on a desktop, or use extender to place on DIN-Rail bracket or mount on the wall.

  • Page 17: Connecting To The Network Or A Host

    5G Ethernet Modem 1.6.3 Connecting to the Network or a Host The IDG450 series provides one RJ45 port to connect to 10/100/1000/2500Mbps Ethernet. It can auto detect the transmission speed on the network and configure itself automatically. Connect one Ethernet cable to the RJ45 port (LAN) of the device and plug another end of the Ethernet cable into your computer’s network port to connect this device to the host PC for device configuration.

  • Page 18: Chapter 2 Setup

    5G Ethernet Modem Chapter 2 Set up The IDG450 series connect to a machine via the Ethernet interface for 3G/4G/5G network connection. IDG450 series also provides another function with NAT router. It can help the network application more flexible. 2.1 Network Network Page Item Description...

  • Page 19: Cellular

    5G Ethernet Modem 2.1.2 Cellular Device Mode Item Value setting Description Auto 1. A Must filled setting The unit will detect the SIM and set an APN from internal database. 2. By default Auto is Manual selected User must set APN manually. 1.
  • Page 20 5G Ethernet Modem protocol to be authenticated with the carrier’s server. When Auto is selected, it means it will authenticate with the server either PAP or CHAP. 1. A Must filled setting Specify the IP type of the network service provided by your 3G/4G network. IP Type 2.

  • Page 21: Ethernet

    5G Ethernet Modem 1. IPv4 format. Default Gateway Thegateway setting ofthis configed static IP. AnOptional setting 1. IPv4 format. Primary DNS Assigned DNS server of this configed static IP. AnOptional setting 1. IPv4 format. Secondary DNS Assigned DNS server of this configed static IP. AnOptional setting 2.1.3 Ethernet Ethernet IP...

  • Page 22: Port Forwarding

    5G Ethernet Modem DHCP Setting Item Value setting Description 1. Numberic string IP Pool Start format. The IP Pool of this DHCP Server. It is Starting Address entered in this field. 2. A Must filled setting 1. Numberic string IP Pool End format.
  • Page 23 5G Ethernet Modem Virtual Server Rule Configuration Item Value setting Description 1. String format can be Name any text The name of current rule 2. A Must filled setting This field is to specify the IP address of the interface selected in the WAN Server IP A Must filled setting Interface setting above.
  • Page 24 5G Ethernet Modem It means the option “Protocol” of packet filter rule is UDP. Public Port selected a predefined port from Well-known Service, and Private Port is the same with Public Port number. Public Port is selected Single Port and specify a port number, and Private Port can be set a Single Port number.

  • Page 25: Ddns

    5G Ethernet Modem 2.1.5 DDNS DDNS Item Value setting Description The box is unchecked by DDNS Check the Enable box to activate this function. default DynDNS.org is set by Select your DDNS provider of Dynamic DNS. It can be DynDNS.org, NO- Provider default IP.com,TZO.com etc...
  • Page 26 5G Ethernet Modem Device Mode Item Value setting Description Show the current time of the unit. Current Time When select Auto, unit will sync the time via cellular cell,and then try to use 1. A Must-filled item. Sync Time 2. Atuo is selected by NTP if cellular cell doesn’t provide time information.

  • Page 27: Language

    5G Ethernet Modem 2.2.2Language Language Item Value setting Description Language setiing of the WebGUI. 1. A Must-filled item. Language List 2. English is selected by default. 2.2.3System Information System Information Item Value setting Description Show the model name of the device Model Name 2.2.4Scheduling Scheduling...
  • Page 28 5G Ethernet Modem Press Add to create a schedule rule for system. Time Schedule Time Schedule Configuration Item Value Setting Description Rule Name String: any text Set rule name Rule Policy Default Inactivate Inactivate/activate the function been applied to in the time period below Time Period Definition Item Value Setting...

  • Page 29: Chapter 3Administrator

    5G Ethernet Modem Chapter 3Administrator 3.1 Manager 3.1.1 FW Upgrade Firmware Information Item Value setting Description FW Version It displays the firmware version of the product FW Date It displays the build time of the firmware Firmware Upgrade Item Value setting Description Select firmware file to be upgraded FW Path...

  • Page 30: Password & Mmi

    5G Ethernet Modem 3.1.2Password & MMI Username Item Value setting Description 1. The default username Username Display the current username for the administrator is ‘admin’. New Username String: any text Enter the new username Save Click Save button to save the settings...

  • Page 31: Reboot & Reset

    5G Ethernet Modem Password Item Value setting Description 1. String: any text 2. The default password Old Password Enter the current password to enable you unlock to change password. for web-based MMI is ‘admin’. New Password String: any text Enter new password New Password String: any text Enter new password again to confirm...
  • Page 32 5G Ethernet Modem 3.1.4SSH Item Value setting Description 1. Default value is Check the Enable box to activate the SSH Telnet function for connecting from LAN or WAN interfaces. disable such service You can set which number of Service Port you want to provide for the corresponding 1.
  • Page 33 5G Ethernet Modem Rule Configuration Item Value setting Description Name String: any text Set rule name Protocol HTTP is set by default Select HTTP or HTTPS method for router access. This field is to specify the remote host to assign access right for remote access. Remote IP A Must filled setting Select Any IP to allow any remote hosts...
