- Page 1 4G Modem IDG400-0TE0C (LTE cat. 4) User Manual...
-
Page 2: Table Of Contents
4G Modem Chapter 1 Introduction ............................4 1.1 Introduction ............................. 4 1.2 Contents List ........................... 5 1.2.1 Package Contents ........................5 1.3 Hardware Configuration ........................6 1.4 LED Indication ..........................7 1.5 Installation & Maintenance Notice ....................7 1.5.1 SYSTEM REQUIREMENTS ....................7 1.5.2 WARNING ........................... - Page 3 4G Modem 3.1.4 Telnet & SSH ........................27 3.1.5 Remote Administrator ......................28 3.2 Utility ............................29 3.2.1 SMS ........................... 29...
-
Page 4: Chapter 1 Introduction
Chapter 1 Introduction 1.1 Introduction Congratulations on your purchase of AMIT’s IDG400 M2M Cellular Modem. With this AMIT cellular modem you have made a great first step in the world of connected Internet of things (IOT) by simply inserting a SIM card from the local mobile carrier into this device to get things connected. -
Page 5: Contents List
4G Modem 1.2 Contents List 1.2.1 Package Contents #Standard Package Items Description Contents Quantity IDG400-0TE01 1pcs 4G Modem Cellular Antenna 2pcs MicroUSB Cable 1pcs RJ45 Cable 1pcs #Optional Package Items Description Contents Quantity 1pcs or 2 pcs Extender (1 pcs needed for din-rail and 2 pcs needed for wall-mount) DIN-Rail Bracket 1pcs... -
Page 6: Hardware Configuration

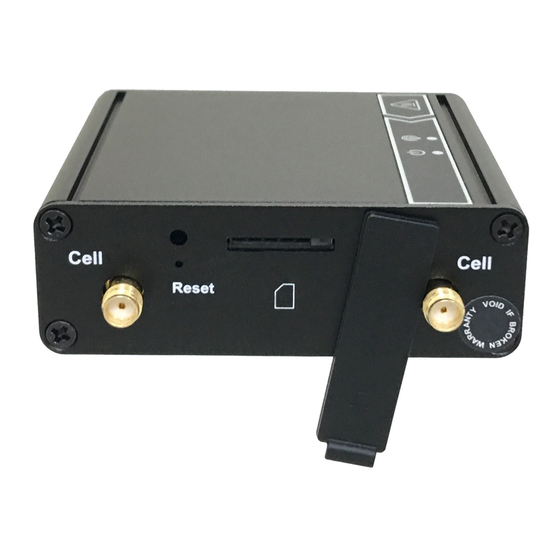

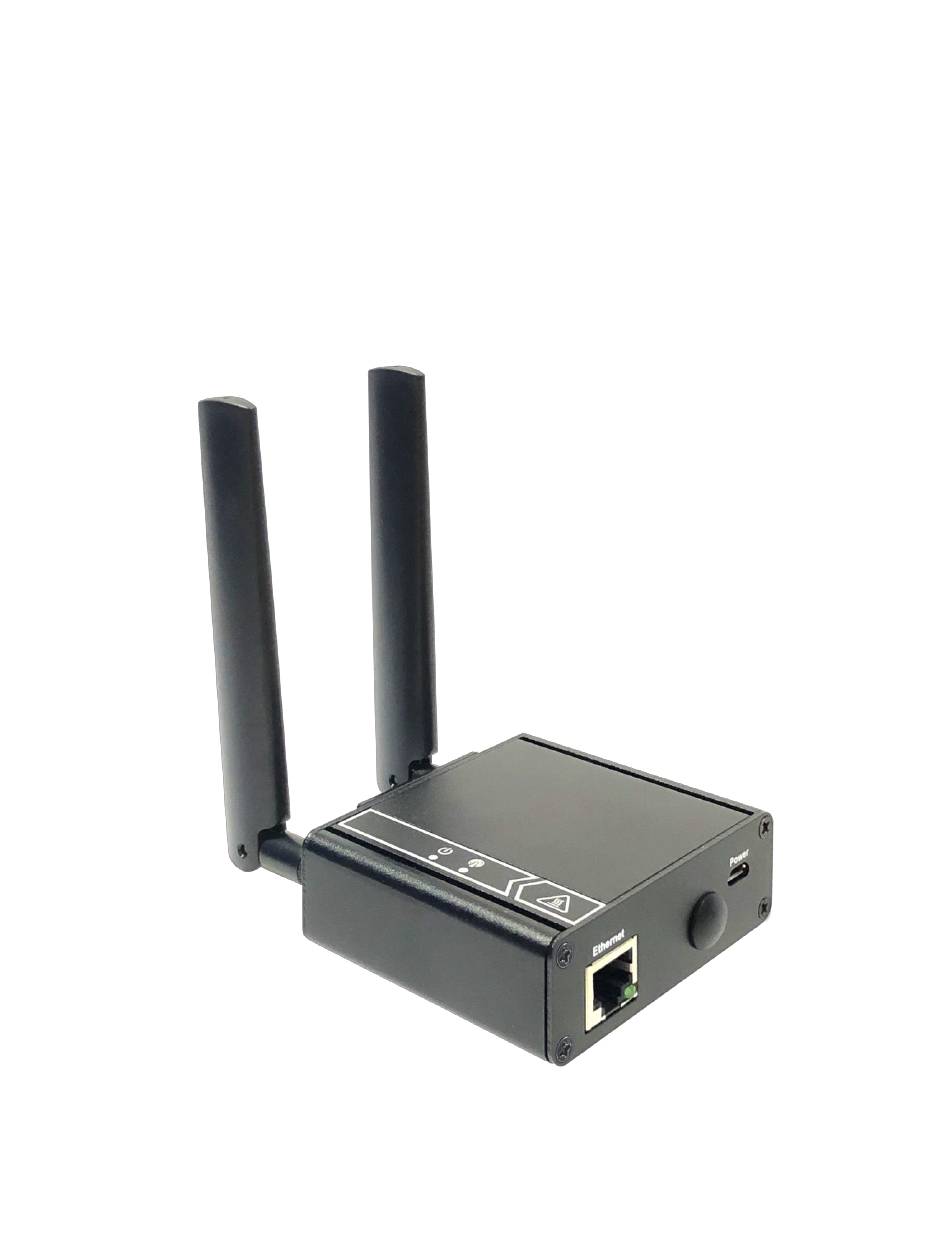

4G Modem Power Adapter 1pcs Plug(US/EU/AU/UK) 1PCS 1.3 Hardware Configuration Left View Ethernet Power Right View 3G/4G Reset 3G/4G Antenna Button Slot Antenna ※Reset Button RESET button provides user a quick and easy way to resort the default setting. Press the RESET button continuously for 6 seconds, and then release it. -
Page 7: Led Indication
4G Modem 1.4 LED Indication LED Color Indication Description Steady On: Device power is on Blue Off: Device power is off Power Red Steady on: Cellular is not ready or no cellular signal. Red Flash: Cellular is ready but regiister status is not ready. Blue Blue Steady On: The signal is ready and regists to operator. -
Page 8: Warning
4G Modem 1.5.2 WARNING Only use the power cable that comes with the package. Over voltage rating is dangerous and may damage the product. Do not open or repair the case yourself. If the Attention product is too hot, turn off the power immediately and have it repaired at a qualified service center. - Page 9 4G Modem Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 10: Hot Surface Caution
4G Modem 1.5.3 HOT SURFACE CAUTION CAUTION: The surface temperature for the metallic enclosure can be very high! Especially after operating for a long time, installed at a closed cabinet without air conditioning support, or in a high ambient temperature space. -
Page 11: Product Information For Ce Red Requirements
4G Modem 1.5.4 Product Information for CE RED Requirements The following product information is required to be presented in product User Manual for latest CE RED requirements. (1) Frequency Band & Maximum Power 1.a Frequency Band for Cellular Connection (for EC25-EU version) Band number Operating Frequency Max output power... - Page 12 Ensure the unit is fixed tightly to reduce the likelihood of injury due to exposure to mechanical hazards if dropped. (5) Manufacture Information Manufacture Name: AMIT Wireless Inc. Manufacture Address: No. 28, Lane 31, Sec. 1, Huandong Rd., Sinshih Dist., Tainan 74146, Taiwan...
-
Page 13: Hardware Installation
4G Modem 1.6 Hardware Installation This chapter describes how to install and configure the hardware 1.6.1 Mount the Unit The IDG400 series can be placed on a desktop, or use extender to place on DIN-Rail bracket or mount on the wall. -
Page 14: Connecting To The Network Or A Host
4G Modem 1.6.3 Connecting to the Network or a Host The IDG400 series provides one RJ45 port to connect to Giga-Ethernet. It can auto detect the transmission speed on the network and configure itself automatically. Connect one Ethernet cable to the RJ45 port (LAN) of the device and plug another end of the Ethernet cable into your computer’s network port to connect this device to the host PC for device configuration. -
Page 15: Chapter 2 Setup
4G Modem Chapter 2 Setup The IDG400 series connect to a machine via giga ethernet interface for 3G/4G network connection. IDG400 series also provides another function with NAT router. It can help the network application more flexible. 2.1 Network Network Page Item Description Device Mode... -
Page 16: Cellular
4G Modem 2.1.2 Cellular Device Mode Item Value setting Description Auto 1. A Must filled setting The unit will detect the SIM and set an APN from internal database. 2. By default Auto is Manual selected User must set APN manually. 1. - Page 17 4G Modem Dynamic IP 1. A Must filled setting The unit will get IP from cellular service.. IP Mode 2. By default Dynamic IP Static IP is selected The unit will set IP according Static IP Config. 1. An Optional setting Enter the PIN (Personal Identification Number) code if it needs to unlock your PIN Code 2.
-
Page 18: Ethernet
4G Modem 2.1.3 Ethernet Ethernet IP Item Value setting Description 1. IPv4 format. The LAN IP Address of this unit. 2. A Must filled setting 255.255.255.0 (/24) is Netmask The Subnet Mask of this unit. set by default The box is unchecked by DHCP Server Click Enable box to activate DHCP Server. -
Page 19: Port Forwarding
4G Modem 1. Numberic string IP Pool End format. The IP Pool of this DHCP Server. It is Ending Address entered in this field. 2. A Must filled setting 1. Numberic string The Lease Time of this DHCP Server. Lease Time format. - Page 20 4G Modem Virtual Server Rule Configuration Item Value setting Description 1. String format can be Name any text The name of current rule 2. A Must filled setting This field is to specify the IP address of the interface selected in the WAN Server IP A Must filled setting Interface setting above.
-
Page 21: Ddns
4G Modem setting 2.The box is unchecked by default. Virtual Server – Rule Name Item Value setting Description Clicl “Edit” button to pop-up Virtual Server Rule Configuration page to edit Rule name the rule. Click “Delete” button to delete this rule 2.1.5 DDNS DDNS Item... -
Page 22: System
4G Modem 2. A Must filled setting 2.2 System This section provides the configuration of system features. 2.2.1 System Time Device Mode Item Value setting Description Show the current time of the unit. Current Time When select Auto, unit will sync the time via cellular cell, and then try to use 1. -
Page 23: Language
4G Modem 2.2.2 Language Language Item Value setting Description Language setiing of the WebGUI. 1. A Must-filled item. Language List 2. English is selected by default. 2.2.3 System Information System Information Item Value setting Description Show the model name of the device Model Name Serial Number Show the serial number of the device... - Page 24 4G Modem Scheduling Item Value setting Description Press Add to create a schedule rule for system. Time Schedule Time Schedule Configuration Item Value Setting Description Rule Name String: any text Set rule name Rule Policy Default Inactivate Inactivate/activate the function been applied to in the time period below Time Period Definition Item Value Setting...
-
Page 25: Chapter 3 Administrator
4G Modem Chapter 3 Administrator 3.1 Manager 3.1.1 FW Upgrade Firmware Information Item Value setting Description FW Version It displays the firmware version of the product FW Date It displays the build time of the firmware Firmware Upgrade Item Value setting Description Select firmware file to be upgraded FW Path... -
Page 26: Password & Mmi
4G Modem 3.1.2 Password & MMI Password Item Value setting Description 1. String: any text 2. The default password Old Password Enter the current password to enable you unlock to change password. for web-based MMI is ‘admin’. New Password String: any text Enter new password New Password String: any text... -
Page 27: Reboot & Reset
4G Modem 3.1.3 Reboot & Reset Device Mode Item Value setting Description Chick the Reboot button to reboot the unit immediately Reboot Reset to Default Click the Reset button to reset the device configuration to its default value. 3.1.4 Telnet & SSH Telnet &... -
Page 28: Remote Administrator
4G Modem 3.1.5 Remote Administrator Remote Administrator Host Definition Item Value setting Description Remote Administrator Press “Add” to set a remote administrator rule Host Definition Rule Configuration Item Value setting Description Name String: any text Set rule name Protocol HTTP is set by default Select HTTP or HTTPS method for router access. -
Page 29: Utility
4G Modem 2. 443 for HTTPS by Value Range: 1 ~ 65535. default The box is unchecked by Rule Click Enable box to activate this rule. default. 3.2 Utility 3.2.1 SMS SMS – SMS Service Item Value setting Description The box is unchecked by This is the SMS switch. - Page 30 4G Modem SMS – SMS Summary Item Value setting Description If SIM card inserts to unit first time, New SMS value is zero. When received a New SMS new SMS but didn’t read, this value will plus one. This value records the existing SMS numbers. When received the new SMS, Received SMS this value will plus one.
- Page 31 4G Modem Account Configuration Item Value setting Description 1. Mobile phone number Fill the specify Phone number to activate the Event Management function. Phone Number#1 / #2 format User just can handle Event Management function on these phone numbers. 2. A Must filled setting Activate the phone tto have Managing / Notifying or both functions.
- Page 32 4G Modem New SMS Item Value setting Description Write the receivers to send SMS. User need to add the semicolon and Receiver compose multiple receivers that can group send SMS Write the SMS context to send SMS. The router supports up to a maximum of Text Message 512 characters for SMS context length.
- Page 33 4G Modem Detail: Click this button will pop-up the SMS Inbox to show the content. Delete: Click this button will delete the SMS. SMS Inbox Item Value setting Description Show the phone number and timestamp of the SMS Sender Show the content of the SMS SMS Content...
