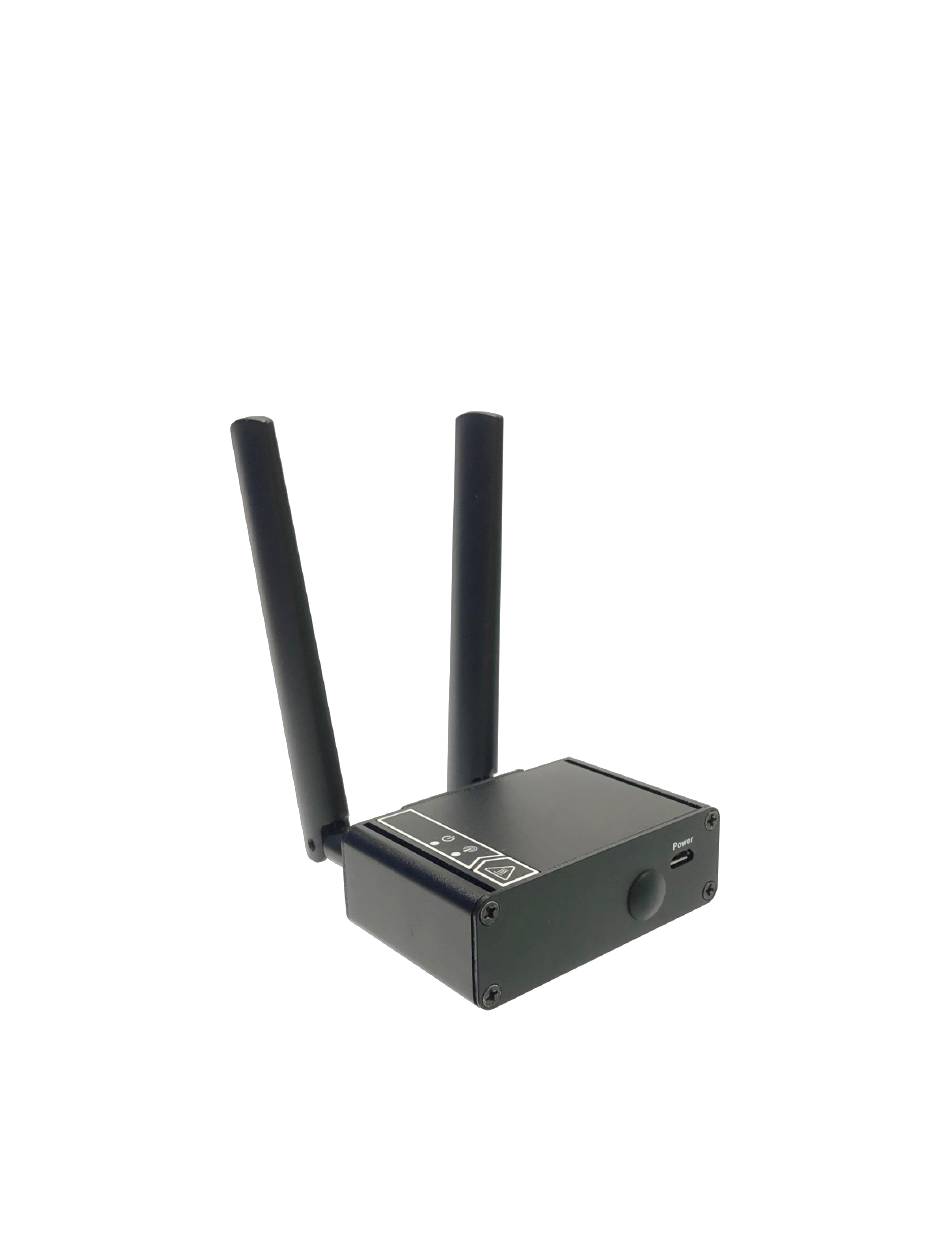

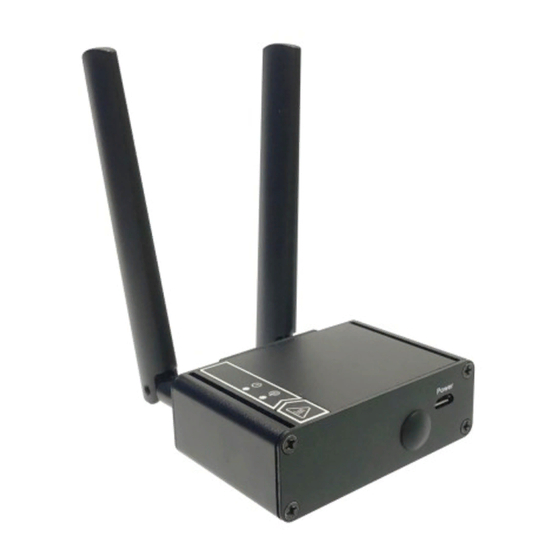

- Page 1 4G USB Modem IDG400-0TU02 (LTE cat. 4) User Manual...
-
Page 2: Table Of Contents
4G USB Modem Chapter 1 Introduction ............................4 1.1 Introduction ............................. 4 1.2 Contents List ........................... 5 1.2.1 Package Contents ........................5 1.3 Hardware Configuration ........................5 1.4 LED Indication ..........................6 1.5 Installation & Maintenance Notice ....................7 1.5.1 SYSTEM REQUIREMENTS ....................7 1.5.2 WARNING ........................... - Page 3 4G USB Modem 3.1.3 Reboot & Reset ........................26 3.1.4 Telnet & SSH ........................26 3.1.5 Remote Administrator ......................27 3.2 Utility ............................28 3.2.1 SMS ........................... 28...
-
Page 4: Chapter 1 Introduction
Chapter 1 Introduction 1.1 Introduction Congratulations on your purchase of AMIT’s IDG400 M2M Cellular Modem. With this AMIT cellular modem you have made a great first step in the world of connected Internet of things (IOT) by simply inserting a SIM card from the local mobile carrier into this device to get things connected. -
Page 5: Contents List
4G USB Modem 1.2 Contents List 1.2.1 Package Contents #Standard Package Items Description Contents Quantity IDG400-0TU02 1pcs 4G USB Modem Cellular Antenna 2pcs MicroUSB Cable 1pcs #Optional Package Items Description Contents Quantity 1pcs or 2 pcs Extender (1 pcs needed for din-rail and 2 pcs... -
Page 6: Led Indication
4G USB Modem USB & Power Right View 3G/4G Reset 3G/4G Antenna Button Slot Antenna ※Reset Button RESET button provides user a quick and easy way to resort the default setting. Press the RESET button continuously for 6 seconds, and then release it. The device will restore to factory default settings. 1.4 LED Indication Indication LED Color... -
Page 7: Installation & Maintenance Notice
4G USB Modem Blue Slow Flash: State on 3G. 1.5 Installation & Maintenance Notice 1.5.1 SYSTEM REQUIREMENTS USB 2.0 Host Port Network Requirements 3G/4G cellular service subscription Computer with the following: Windows®, Macintosh, or Linux-based operating system ... - Page 8 4G USB Modem Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 9: Hot Surface Caution
4G USB Modem 1.5.3 HOT SURFACE CAUTION CAUTION: The surface temperature for the metallic enclosure can be very high! Especially after operating for a long time, installed at a closed cabinet without air conditioning support, or in a high ambient temperature space. -
Page 10: Product Information For Ce Red Requirements
4G USB Modem 1.5.4 Product Information for CE RED Requirements The following product information is required to be presented in product User Manual for latest CE RED requirements. (1) Frequency Band & Maximum Power 1.a Frequency Band for Cellular Connection (for EC25-EU version) Band number Operating Frequency Max output power... - Page 11 Ensure the unit is fixed tightly to reduce the likelihood of injury due to exposure to mechanical hazards if dropped. (5) Manufacture Information Manufacture Name: AMIT Wireless Inc. Manufacture Address: No. 28, Lane 31, Sec. 1, Huandong Rd., Sinshih Dist., Tainan 74146, Taiwan...
-
Page 12: Hardware Installation
4G USB Modem 1.6 Hardware Installation This chapter describes how to install and configure the hardware 1.6.1 Mount the Unit The IDG400 series can be placed on a desktop, or use extender to place on DIN-Rail bracket or mount on the wall. -
Page 13: Connecting To Usb Host
4G USB Modem 1.6.3 Connecting to USB Host This product provides one Micro-USB port to be data interface and power path. When the device is connected to USB host port, it will be identified a RNDIS interface as a network adapter. RNDIS class is driver- ready in Linux, FreeBSD and Windows. -
Page 14: Chapter 2 Setup
4G USB Modem Chapter 2 Setup The product connects to a machine viaUSB port for 3G/4G network connection. This device provides alternative functions between NAT router and Modem mode. It can help the network application more flexible. 2.1 Network Network Page Item Description Device Mode... -
Page 15: Cellular
4G USB Modem 2.1.2 Cellular Device Mode Item Value setting Description Auto 1. A Must filled setting The unit will detect the SIM and set an APN from internal database. 2. By default Auto is Manual selected User must set APN manually. 1. - Page 16 4G USB Modem Dynamic IP 1. A Must filled setting The unit will get IP from cellular service.. IP Mode 2. By default Dynamic IP Static IP is selected The unit will set IP according Static IP Config. 1. An Optional setting Enter the PIN (Personal Identification Number) code if it needs to unlock your PIN Code 2.
-
Page 17: Ethernet
4G USB Modem 2.1.3 Ethernet Ethernet IP Item Value setting Description 1. IPv4 format. The LAN IP Address of this unit. 2. A Must filled setting 255.255.255.0 (/24) is Netmask The Subnet Mask of this unit. set by default The box is unchecked by DHCP Server Click Enable box to activate DHCP Server. -
Page 18: Port Forwarding
4G USB Modem format. 2. A Must filled setting 1. Numberic string The Lease Time of this DHCP Server. Lease Time format. Value Range: 300 ~ 604800 seconds. 2. A Must filled setting 2.1.4 Port Forwarding Virtual Server Item Value setting Description The box is unchecked by Check the Enable box to activate this port forwarding function... - Page 19 4G USB Modem Virtual Server Rule Configuration Item Value setting Description 1. String format can be Name any text The name of current rule 2. A Must filled setting This field is to specify the IP address of the interface selected in the WAN Server IP A Must filled setting Interface setting above.
-
Page 20: Ddns
4G USB Modem 2.The box is unchecked by default. Virtual Server – Rule Name Item Value setting Description Clicl “Edit” button to pop-up Virtual Server Rule Configuration page to edit Rule name the rule. Click “Delete” button to delete this rule 2.1.5 DDNS DDNS Item... -
Page 21: Usb Mode
4G USB Modem 2.1.6 USB Mode USB Mode Item Value setting Description Rndis Mode This mode is a driver-ready class in Linux and Windows. In this mode, the This section is default as device will be identified a RNDIS network adapter in OS. USB Mode Rndis Mode. -
Page 22: Language
4G USB Modem Device Mode Item Value setting Description Show the current time of the unit. Current Time When select Auto, unit will sync the time via cellular cell, and then try to use 1. A Must-filled item. Sync Time 2. -
Page 23: Scheduling
4G USB Modem System Information Item Value setting Description Show the model name of the device Model Name Serial Number Show the serial number of the device Manufacturing Datte Show the manufacturing date of the device. 2.2.4 Scheduling Scheduling Item Value setting Description Press Add to create a schedule rule for system. -
Page 24: Chapter 3 Administrator
4G USB Modem Time Schedule Configuration Item Value Setting Description Rule Name String: any text Set rule name Rule Policy Default Inactivate Inactivate/activate the function been applied to in the time period below Time Period Definition Item Value Setting Description Week Day Select from menu Select everyday or one of weekday... -
Page 25: Password & Mmi
4G USB Modem Select firmware file to be upgraded FW Path Upgrade Action Click Upgrade button to start upgrade process with selected FW Backup Configuration Settings Item Value setting Description Backup Configuration Select “Download” to backup current configuration to a file. Settings Select “Upload”... -
Page 26: Reboot & Reset
4G USB Modem Enter the login trial counting value. Value Range: 3 ~ 10. If someone tried to login the web GUI with incorrect password for more than Login 3 times is set by default the counting value, an warning message “Already reaching maximum Password-Guessing times, please wait a few seconds!”... -
Page 27: Remote Administrator
4G USB Modem disable such service You can set which number of Service Port you want to provide for the corresponding service. 2. By default Service Value Range: 1 ~65535. Port is 23. 3. Default value is Check the Enable box to activate the SSH Telnet function for connecting from LAN or WAN interfaces. -
Page 28: Utility
4G USB Modem Name String: any text Set rule name Protocol HTTP is set by default Select HTTP or HTTPS method for router access. This field is to specify the remote host to assign access right for remote access. Remote IP A Must filled setting Select Any IP to allow any remote hosts Select Specific IP to allow the remote host coming from a specific subnet. - Page 29 4G USB Modem unit. Specify a number (1-10) for message count to reserve some available storage The oldest message(s) will be space and prevent it from run out of storage. Free Space deleted when the SMS storage is going to full.0 means the function is ignored.
- Page 30 4G USB Modem Account Configuration Item Value setting Description 1. Mobile phone number Fill the specify Phone number to activate the Event Management function. Phone Number#1 / #2 format User just can handle Event Management function on these phone numbers. 2.
- Page 31 4G USB Modem Managing Events Item Value setting Description Enable the option and user can query the current connection status via Cellular Status sending SMS “status” from specify phone number which enables managing function. Enable the option and user can force the current connection re-econnect Cellular Reconnect once via sending SMS “reconnect”...
- Page 32 4G USB Modem New SMS Item Value setting Description Write the receivers to send SMS. User need to add the semicolon and Receiver compose multiple receivers that can group send SMS Write the SMS context to send SMS. The router supports up to a maximum of Text Message 512 characters for SMS context length.
