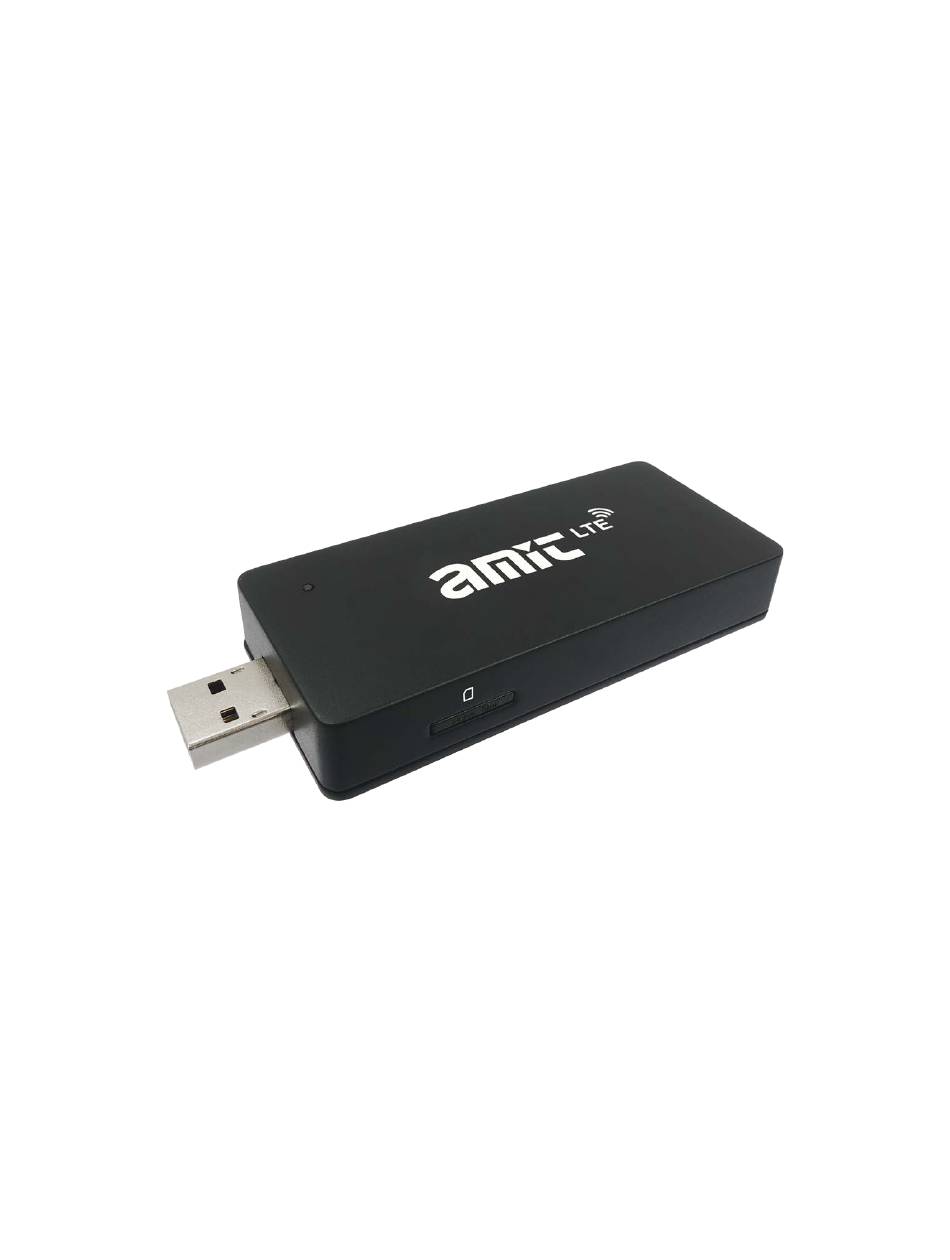

4G CBRS USB Dongle
IDG120-C6U01 (LTE cat. 6)
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDG120-C6U01 and is the answer not in the manual?

Questions and answers

Related Manuals for Amit IDG120-C6U01

Summary of Contents for Amit IDG120-C6U01

  • Page 1 4G CBRS USB Dongle IDG120-C6U01 (LTE cat. 6) Installation Guide...

  • Page 2: Table Of Contents

    4G CBRS USB Dongle Chapter 1 Introduction ............................3 1.1 Hardware Configuration .......................... 3 1.2 LED Indication ............................3 1.3 WARNING ............................... 3 Chapter 2 Installation .............................. 4 2.1 Hardware Installation ..........................4 2.1.1 Insert the SIM Card ........................4 Chapter 3 Configuration ............................

  • Page 3: Chapter 1 Introduction

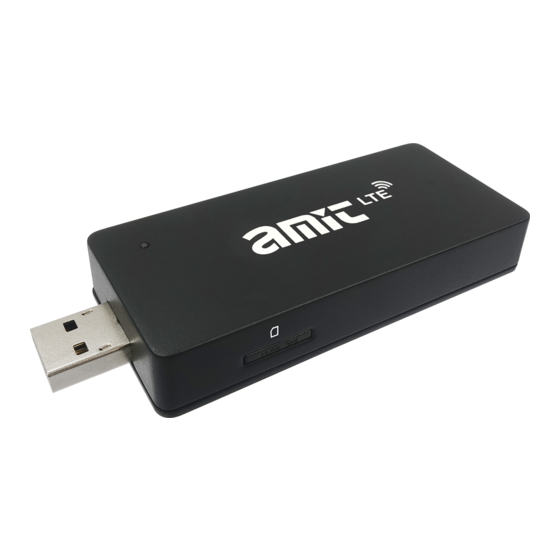

    4G CBRS USB Dongle Chapter 1 Introduction 1.1 Hardware Configuration  Right and Top View USB Type A NanoSIM Connector Slot (4FF) 1.2 LED Indication LED Color Description Blue The USB dongle is powered on Violet Data packet is transmitting or receiving over the LTE network 1.3 WARNING Do not open or repair the device by yourself.

  • Page 4: Chapter 2 Installation

    4G CBRS USB Dongle Chapter 2 Installation 2.1 Hardware Installation 2.1.1 Insert the SIM Card WARNING: BEFORE INSERTING OR REMOVING THE SIM CARD, PLEASE MAKE SURE THE USB DONGLE IS POWERED OFF. SIM card slot is located in the middle area of IDG400 series. You need to remove the outer SIM card cover before installing or removing an inserted SIM card.

  • Page 5: Chapter 3 Configuration

    4G CBRS USB Dongle Chapter 3 Configuration If you are a Windows user, go to section 3.1. If you are a Linux user, go to section 3.2. If you are a Macbook user, go to section 3.3. If you are a Chromebook user, goto section 3.4.

  • Page 6: Set Up Connection Manager On Windows

    Download AMIT Connection Manager http://www.amitwireless.com/productDetail.php?cate=986&product_id=1278&pid=1232&pid1=1231& pid2=986. The AMIT Connection Manager already includes the installer of Windows driver, so you don’t need to download the Windows driver separately. After you download the Connection Manager, please execute the file on your Windows PC and follow the instructions to install Driver and Connection Manager.

  • Page 7: Use Connection Manager

    4G CBRS USB Dongle 3.1.2 Use Connection Manager The Connection Manager is designed for end users to get on CBRS network with the minimum effort. End users can finish the connection settings and monitor the connection information through this GUI-based software utility.
  • Page 8 4G CBRS USB Dongle Item Value / Setting Description No Device USB dongle is not detected Network Manager is detecting USB dongle Searching Network Manager is connecting to CBRS network Connecting Connection Status CBRS connection is connected Connected Disconnecting Network Manager is disconnecting to CBRS network Disconnected CBRS connection is disconnected RSSI...
  • Page 9 4G CBRS USB Dongle Item Value / Setting Description Model Name CB610L The model name of the embedded LTE module The firmware version of the embedded LTE module Model Version The IMEI code of the device IMEI A 15-digit number The IMSI code of the device IMSI A 15-digit number...
  • Page 10 4G CBRS USB Dongle PIN code for the SIM card. Leave it blank if no PIN code setting on PIN Code the SIM card Enable Enable or disable Network Monitoring function IP address of the host that Network Monitoring function is using ICMP Destination IP for connection keep-alive detection.

  • Page 11: Set Up On Linux

    4G CBRS USB Dongle 3.2 Set Up on Linux PLEASE FOLLOW THE INSTRUCIONS IN APPENDIX A TO CONFIGURE THE IDG120 DONGLE AT “Windows” MODE BEFORE YOU USE IT WITH A LINUX DEVICE. Windows MODE ALSO WORKS FOR A LINUX DEVICE. THE IDG120 DONGLE IS AT Windows MODE BY DEFAULT.

  • Page 12: Set Up On Macbook

    4G CBRS USB Dongle 3.3 Set Up on Macbook PLEASE FOLLOW THE INSTRUCIONS IN APPENDIX A TO CONFIGURE THE IDG120 DONGLE AT “Macbook” MODE BEFORE YOU USE IT WITH A Macbook DEVICE. Switch to Macbook Mode After you plug IDG120 to your Macbook, the Macbook will detect it and get an IP address automatically.

  • Page 13: Set Up On Chromebook

    4G CBRS USB Dongle 3.4 Set Up on Chromebook PLEASE FOLLOW THE INSTRUCIONS IN APPENDIX A TO CONFIGURE THE IDG120 DONGLE AT “Chromebook” MODE BEFORE YOU USE IT WITH A Chromebook DEVICE. Switch to Chromebook Mode After you plug IDG120 to your Chromebook, the Chromebook will detect it and get an IP address automatically when it connects on the CBRS nework.

  • Page 14: Appendix A Mode Switch Tool

    Please make sure the IDG120 dongle is in the correct mode before you connect it to a Windows, Linux, Chromebook, or Macbook device. Download AMIT Mode Switch Tool http://www.amitwireless.com/productDetail.php?cate=986&product_id=1278&pid=1232&pid1=1231& pid2=986.

  • Page 15: Install Mode Switch Tool On Windows

    4G CBRS USB Dongle Install Mode Switch Tool on Windows 1. Press “Next” at the welcome page. 2. Select the installation folder of the tool. You can keep the default setting and press “Next” to continue.
  • Page 16 4G CBRS USB Dongle 3. Press “Next” to start the installation.
  • Page 17 4G CBRS USB Dongle 4. Installation is in progress and wait until moving to next page. 5. Installation completes. Press “Close” button to end the installation.
  • Page 18 4G CBRS USB Dongle 6. After installation is completed, you can see an icon of Mode Switch Tool at desktop of Windows.

  • Page 19: How To Use Mode Switch Tool

    4G CBRS USB Dongle How to Use Mode Switch Tool The Mode Switch Tool is designed for users to configure the IDG120 dongle correctly for Windows, Linux, Chromebook, and Macbook. Your device may not detect IDG120 dongle if the IDG120 is in an incorrect mode to your device.
  • Page 20 4G CBRS USB Dongle Please plug IDG120 dongle to your Windows PC. Then the tool will detect the dongle and show the mode information. Please note that it may take a few seconds for the tool to detect the IDG120 dongle. As the example in the snapshot below, the IDG120 dongle is in Windows mode which is set by default.

  • Page 21: Switch To Chromebook Mode

    4G CBRS USB Dongle Switch to Chromebook Mode THE SIM CARD NEEDS TO BE REMOVED FROM THE IDG120 DONGLE BEFORE YOU USE THIS TOOL. Press “Switch to Google Chrome mode” button. Then the transition process will start automatically.

  • Page 22: Switch To Macbook Mode

    4G CBRS USB Dongle Finally you will see the dongle has been switched to Google Chrome mode after the process is completed. Switch to Macbook Mode THE SIM CARD NEEDS TO BE REMOVED FROM THE IDG120 DONGLE BEFORE YOU USE THIS TOOL. Press “Switch to Apple Mac mode”...
  • Page 23 4G CBRS USB Dongle Then the transition process will start automatically. Finally you will see the dongle has been switched to Apple Mac mode after the process is completed.

  • Page 24: Switch To Windows Mode

    4G CBRS USB Dongle Switch to Windows Mode THE SIM CARD NEEDS TO BE REMOVED FROM THE IDG120 DONGLE BEFORE YOU USE THIS TOOL. If you want to continue to use IDG120 on the same PC after the mode switch, please check the “Reboot” checkbox to take the change effective righ away.
  • Page 25 4G CBRS USB Dongle Then the transition process will start automatically. Finally you will see the dongle has been switched to Windows mode after the process is completed.
