  • Page 1 5G Modem IDG450-WG001 (5G NR) User Manual...

  • Page 2: Table Of Contents

    5G Modem Chapter 1 Introduction ............................4 1.1 Introduction .............................. 4 1.2 Contents List ............................. 5 1.2.1 Package Contents ........................... 5 1.3 Hardware Configuration ........................... 6 1.4 LED Indication ............................7 1.5 Installation& MaintenanceNotice ......................7 1.5.1 SYSTEM REQUIREMENTS ....................... 7 1.5.2 WARNING ............................
  • Page 3 5G Modem 3.2 Routing ..............................31 3.2.1 Static Routing ..........................32 3.2.2 Routing Information ........................33 3.3 System ..............................34 3.3.1 System Time ..........................34 3.3.2 Language ............................35 3.3.3 System Information ........................35 3.3.4 Scheduling ............................ 36 3.3.5 Data Cap ............................37 Chapter 4 Security ..............................

  • Page 4: Chapter 1 Introduction

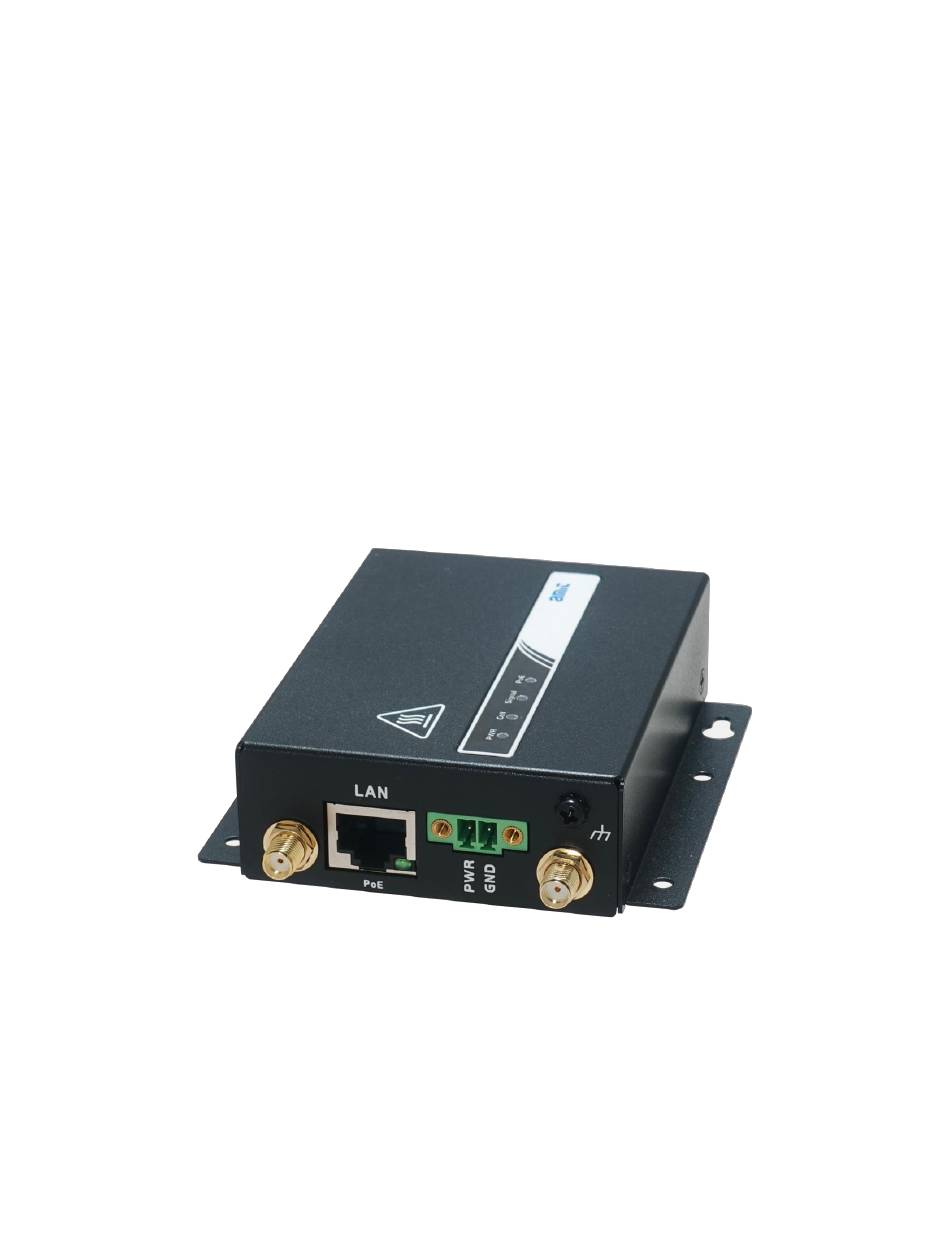

    Chapter 1 Introduction 1.1 Introduction Congratulations on your purchase of AMIT’s IDG450 M2M 5G Modem. With this AMIT 5G modem you have made a great first step in the world of connected Internet of things (IOT) by simply inserting a SIM card from the local mobile carrier into this device to get things connected.

  • Page 5: Contents List

    5G Modem 1.2 Contents List 1.2.1 Package Contents #Standard Package Items Description Contents Quantity IDG450-WG001 5G Modem Cellular Antenna 4pcs RJ45 Cable 2 Pin Terminal Block #Optional Package Items Description Contents Quantity Power Adapter 1pcs (TB 54V/1.2A) 1 set DIN-Rail Bracket (DIN rail x2, screw x4)

  • Page 6: Hardware Configuration

    5G Modem 1.3 Hardware Configuration  Right View Antenna Slot Antenna Reset System Button Port  RightView Power (2pin TB) Antenna Antenna Ethernet with PoE ※Reset Button RESET button provides user a quick and easy way to resort the default setting. Press the RESET button continuously for more than 8 seconds when the 5G/LTE LED (blue and ) flashes alternately for 3~4 Flash...

  • Page 7: Led Indication

    5G Modem 1.4 LED Indication LEDColor Indication Description Steady On: Device power is on Blue Off: Device power is off Power Red and Steady On: Cellular is not registered to network. Red and Flash: Cellular is registering to network. Blue + Red Blue and Steady On: The device registers to 5G network.

  • Page 8: Warning

    5G Modem 1.5.2 WARNING Only use the power adapter that comes with the  package. Using a different voltage rating power adaptor is dangerous and may damage the product. Do not open or repair the case yourself. If the  product is too hot, turn off the power immediately Attention and have it repaired at a qualified service center.
  • Page 9 5G Modem Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 10: Hot Surface Caution

    5G Modem 1.5.3 HOT SURFACE CAUTION CAUTION: The surface temperature for the metallic enclosure can be very high! Especially after operating for a long time, installed at a closed cabinet without air conditioning support, or in a high ambient temperature space.

  • Page 11: Product Information For Ce Red Requirements

    5G Modem 1.5.4 Product Information for CE RED Requirements The following product information is required to be presented in product User Manual for latest CE RED requirements. (1) Frequency Band & Maximum Power 1.a Frequency Band for 5G NR /4G LTEConnection (for RM520N-GL version) Band number Operating Frequency Max output power...
  • Page 12 5G Modem N66 Uplink: 1710-1780MHz Downlink: 2110-2200MHz N71 Uplink: 663-698MHz Downlink: 617-652MHz N75 Downlink: 1432-1517MHz N76 Downlink: 1427-1432MHz LTE & 5G NR HUPE Bands N38 Uplink: 2570-2620MHz (n38/n40/n41/n77/n78/n79) Downlink:2570-2620MHz N40 Uplink: 2300-2400MHz Downlink: 2300-2400MHz N41 Uplink: 2496-2690MHz Downlink: 2496-2690MHz 26+2/-3 dBm N77 Uplink: 3300-4200MHz Downlink: 3300-4200MHz N78 Uplink: 3300-3800MHz...
  • Page 13 5G Modem Downlink: 791-821 MHz B25 Uplink: 1850-1915 MHz Downlink: 1930-1995 MHz B26 Uplink: 814-849 MHz Downlink: 859-894 MHz B28 Uplink: 703-748 MHz Downlink: 758-803 MHz B29 Downlink: 711-728 MHz B30 Uplink: 2305-2315 MHz Downlink: 2350-2360 MHz B32 Downlink: 1452-1496 MHz B48 Uplink: 3550-3700MHz Downlink: 3550-3700MHz B66 Uplink: 1710-1780MHz...
  • Page 14 Ensure the unit is fixed tightly to reduce the likelihood of injury due to exposure to mechanical hazards if dropped. (5) Manufacture Information Manufacture Name: AMIT Wireless Inc. Manufacture Address: No. 28, Lane 31, Sec. 1, Huandong Rd., Sinshih Dist., Tainan 74146, Taiwan...

  • Page 15: Hardware Installation

    5G Modem 1.6 Hardware Installation This chapter describes how to install and configure the hardware 1.6.1 Mount the Unit The IDG450 series can be placed on a desktop, or use extender to place on DIN-Rail bracket or mount on the wall.

  • Page 16: Connecting To The Network Or A Host

    5G Modem 1.6.3 Connecting to the Network or a Host The IDG450 series provides one RJ45 port to connect to 10/100/1000/2500Mbps Ethernet. It can auto detect the transmission speed on the network and configure itself automatically. Connect one Ethernet cable to the RJ45 port (LAN) of the device and plug another end of the Ethernet cable into your computer’s network port to connect this device to the host PC for device configuration.

  • Page 17: Chapter 2 Status

    5G Modem Chapter 2 Status 2.1 cellular Network Page Item Description Device Mode Set the unit operating mode Cellular Set the parameter for cellular network. Ethernet Set the IP of Ethernet and DHCP service Port Forwarding Enable specified port or protocol for service on connected device. Interface Traffic Statistics screen displays the Interface’s total transmitted packets.

  • Page 18: Modem

    5G Modem 2.1.2.Modem Modem Information Item Description IMEI Display modem IMEI information FW version Display modem fw version Advanced Information Click“advanced”button to show Advanced Information...
  • Page 19 5G Modem Advanced Information Item Description IMEI Display modem IMEI information Temperature Module temperature 4G Band capability 4G-supported band 5G Band capability 5G-supported band Service information Item Description Display card slot SIM status Display read sim status...
  • Page 20 5G Modem Register status Display base station registration status-registered or not registered Operator Operator name Service type Display LTE/5G Band Connected frequency band Advanced Information Click“advanced”button to show Advanced Information Advanced Information Item Description Display modem IMEI information Module temperature Roaming Roaming status-no or roaming Cell ID...

  • Page 21: Signal

    5G Modem 2.1.3.Signal Cellular Signal Item Description Service type Cellular service type LTE/5G Operator Operator name RSSI Display Received Signal Advanced Information Click“advanced”button to show Advanced Information Advanced Information Item Description RSSI Display Received Signal RSRP Display Signal Received Power RSRQ Display Signal Received Quality...

  • Page 22: Security

    5G Modem SINR Display Interference Strength RSCP Display Signal Received Power ECIO Display interference Ratio 2.2 Security 2.2.1.VPN OpenVPN Client Name Item Description OpenVPN client #1 Click“advanced”button to show advanced information Advanced Information Item Description OpenVPN client name VPN Client name...

  • Page 23: Chapter 3 Setup

    5G Modem Remote IP/FQDN VPN server IP or FQDN Remote Subnet VPN server remote subnet Virtual IP VPN virtual ip Conn.time Display connected time Conn.status Display connected or disconnected Chapter 3 Setup The IDG450 series connect to a machine via the Ethernet interface for 3G/4G/5G network connection. IDG450 series also provides another function with NAT router.

  • Page 24: Cellular

    5G Modem 3.1.2 Cellular Cellular access Item Value setting Description Auto 1. A must-fill setting The unit will detect the SIM and set an APN from internal database. 2. By default Auto is Manual selected User must set APN manually. 1.
  • Page 25 5G Modem you. 2. String format : any text Select PAP (Password Authentication Protocol) and use such protocol to be authenticated with the carrier’s server. 1. A Must-fill setting Select CHAP (Challenge Handshake Authentication Protocol) and use such Authentication 2. By default Auto is protocol to be authenticated with the carrier’s server.
  • Page 26 5G Modem Policy Setting Item Value setting Description Number of failed connections, After the number of times is reached, switch 1. 0 By default Failed Connection the SIM When the signal is less than the set value, the SIM will be switched 1.

  • Page 27: Ethernet

    5G Modem 3.1.3 Ethernet Ethernet IP Item Value setting Description 1. IPv4 format. The LAN IP Address of this unit. 2. A Must-fill setting 255.255.255.0 (/24) is Netmask The Subnet Mask of this unit. set by default The box is unchecked by DHCP Server Click Enable box to activate DHCP Server.

  • Page 28: Port Forwarding

    5G Modem 2. A must-fill setting 1. numberic string The Lease Time of this DHCP Server. Lease Time format. ValueRange: 300 ~ 604800 seconds. 2. A must-fill setting 3.1.4 Port Forwarding "Virtual Server"allows you to access servers with the global IP address of the gateway as if they are servers existed in the Internet.
  • Page 29 5G Modem Virtual Server Rule Configuration Item Value setting Description 1. String format can be Name any text The name of current rule 2. A must-fill setting This field is to specify the IP address of the interface selected in the WAN Server IP A must-fill setting Interface setting above.

  • Page 30: Ddns

    5G Modem Public Port is selected Port Range and specify a port range, and Private Port can be selected Single Port or Port Range. Value Range:1 ~ 65535 for Public Port, Private Port. When “TCP(6)& UDP(17)” is selected It means the option “Protocol” of packet filter rule is TCP and UDP. Public Port selected a predefined port from Well-known Service, and Private Port is the same with Public Port number.

  • Page 31: Poe

    5G Modem DDNS Item Value setting Description The box is unchecked by DDNS Check the Enable box to activate this function. default DynDNS.org is set by Select your DDNS provider of Dynamic DNS. It can be DynDNS.org, NO- Provider default IP.com,TZO.com etc...

  • Page 32: Static Routing

    5G Modem Routing Item Value setting Description The box is unchecked by Static Routing Check the Enable box to activate this function. default The routing information allows user to view the routing table and policy Routing Information routing information. Static Routing 3.2.1 Static Routing Item...

  • Page 33: Routing Information

    5G Modem 1. IPv4 Format Destination IP Specify the Destination IP of this static routing rule. 2. A must-fill setting 1.255.255.255.0 (/24) is Subnet Mask Specify the Subnet Mask of this static routing rule. set by default 1. IPv4 Format Gateway IP Specify the Gateway IP of this static routing rule.

  • Page 34: System

    5G Modem 3.3 System This section provides the configuration of system features. 3.3.1 System Time System time Item Value setting Description Show the current time of the unit. Current Time When select Auto, unit will sync the time via cellular cell, then try to use NTP 1.

  • Page 35: Language

    5G Modem selected by default. NTP Server 1. A must-fill item. Indicate which NTP server will be used of the time synchronization. Check the Enable button to activate the daylight saving function. 1. It is an optional item. Daylight Saving When user enabled this function, user has to specify the Start Date and End 2.

  • Page 36: Scheduling

    5G Modem 3.3.4 Scheduling Time Schedule Item Value setting Description Press Add to create a schedule rule for system. Time Schedule Time Schedule Configuration Item Value Setting Description Rule Name String: any text Set rule name Rule Policy Default Inactivate Inactivate/activate the function been applied to in the time period below Time Period Definition Item...

  • Page 37: Data Cap

    5G Modem End Time Time format (hh :mm) End time in selected weekday 3.3.5 Data Cap Configuration Item Value Setting Description Data Cap Un-checked by default. Check the Enable box to activate the Data cap function. SIM A by default. Specify SIMA or SIMB Amout 1.

  • Page 38: Vpn

    5G Modem 4.1 VPN VPN Page Item Value setting Description OpenVPN The OpenVPN setting allows user to create and configure OpenVPN tunnels. The WireGuard setting allows user to create and configure WireGuard WireGuard tunnels 4.1.1 OpenVPN OpenVPN client name Page Item Value setting Description...
  • Page 39 5G Modem default Click Add, OpenVPN Client Rule Configuration page will pop-up. OpenVPN Client Rule Configuration Page Item Value setting Description 1. String format can be Name any text The name of current rule 2. A must-fill setting Protocol Define the selected Protocol for connecting to the OpenVPN Server. 1.
  • Page 40 5G Modem  Select TCP , or UDP 2.By default TCP is -> The TCP protocol will be used to access the OpenVPN Server, and Port will selected. be set as 4430 automatically.  Select UDP -> The UDP protocol will be used to access the OpenVPN Server, and Port will be set as 1194 automatically.

  • Page 41: Wireguard

    5G Modem 4.1.2 WireGuard WireGuard Item Value setting Description The box is unchecked by Enable Check the Enable box to activate this wireguard function default The box is unchecked by Check the Enable box to activate this client function Client enable default Click Add will pop-up Interface page Interface...
  • Page 42 5G Modem Name A must-fill setting Specify a name as the identifier of the client. Rule Name Item Value setting Description Check the Edit box to activate this wireguard function Name Check the Delete box to delete Rule Interface Item Value setting Description The box is unchecked by...
  • Page 43 5G Modem Peer Item Value setting Description Remote IP: Port A must-fill setting. Specify the remote IP and port Remote Public key A must-fill setting. Specify the server public key The box is unchecked by Enable Preshared key Check the Enable box to activate this Preshared key function default...

  • Page 44: Firewall

    5G Modem 4.2 Firewall 4.2.1 Packet Filters Packet Filters Item Value setting Description The box is unchecked by Check the Enable box to activate this Packet Fliter function Packet Fliters default Click Add will pop-up Packet Filter Rule Configuration page...
  • Page 45 5G Modem Packet Filter Rule Configuration Item Value setting Description 1. String format can be Enter a packet filter rule name. Enter a name that is easy for you to Name any text remember. 2. A must-fill setting This field is to specify the Source IP address. 1.
  • Page 46 5G Modem 2. By default, Any is If the packets to be filtered are entering from LAN to WAN then select WAN selected for this field. Select Any to filter packets leaving the router from any interfaces. Source MAC 1. optional Specify the Source MAC address.

  • Page 47: Mac Control

    5G Modem 4.2.2 MAC Control When the administrator wants to reject the traffics from some client hosts with specific MAC addresses, he can use the "MAC Control" function to reject with the black list configuration. Mac control Scenario MAC Control Item Value setting Description...
  • Page 48 5G Modem Mac Control Rule Configuration Item Value setting Description 1. String format can be Name any text Enter a MAC rule name. Enter a name that is easy for you to remember. 2. A must-fill setting MAC address Blank is set by default Specify the Source MAC Address to filter rule.

  • Page 49: Ips

    5G Modem 4.2.3 IPS IPS Page Item Value setting Description The box is unchecked by Check the Enable box to activate this IPS function default The box is unchecked by Log enable Check the Enable box to activate to activate Event Log. default The box is unchecked by SYN Flood Defense...
  • Page 50 5G Modem be from 100 to 10000. The box is unchecked by UDP Flood Defence Check the Enable box to activate this UDP Flood Defence function default 1. A Must-fill setting 2. Traffic threshold is set UDP Flood Threshhold to 0 by default Specify the value range to block 3.

  • Page 51: Url Block

    5G Modem 4.2.4 URL Block "URL Blocking" function can let you define blocking rules for incoming and outgoing Web request packets. With defined rules, gateway can control the Web requests containing the complete URL. URL Scenario URL Block Item Value setting Description The box is unchecked by Check the Enable box to activate this...
  • Page 52 5G Modem URL Block Item Value setting Description 1. String format can be Specify an URL Blocking rule name. Enter a name that is easy for you to any text Name understand. 2. A must-fill setting Specify URL, Domain Name, or Keyword list for URL checking. Blank is set by default This field is to specify the Source IP address.

  • Page 53: Chapter 5 Administrator

    5G Modem Chapter 5 Administrator 5.1 Manager 5.1.1 FW Upgrade Firmware Information Item Value setting Description FW Version It displays the firmware version of the product FW Date It displays the build time of the firmware Firmware Upgrade Item Value setting Description Select firmware file to be upgraded FW Path...

  • Page 54: Password & Mmi

    5G Modem Item Value setting Description You can backup or restore the device configuration settings by clicking the Via Web UI button. Backup Configuration Download is selected by Download: for backup the device configuration to a config.bin file. Settings default Upload: for restore a designated configuration file to the device.

  • Page 55: Reboot & Reset

    5G Modem Item Value setting Description Enter the login trial counting value. Value Range: 3 ~ 10. If someone tried to login the web GUI with incorrect password for more than Login 3 times is set by default the counting value, an warning message “Already reaching maximum Password-Guessing times, please wait a few seconds!”...

  • Page 56: Remote Administrator

    5G Modem 5.1.5 Remote Administrator Remote Administrator Host Definition Item Value setting Description Remote Administrator Press “Add” to set a remote administrator rule Host Definition Rule Configuration Item Value setting Description Name String: any text Set rule name Protocol HTTP is set by default Select HTTP or HTTPS method for router access.

  • Page 57: Device Management

    5G Modem The box is unchecked by Rule Click Enable box to activate this rule. default. 5.1.6 Device management Configuration Item Value setting Description The box is unchecked by Check the Enable box to activate this Device management function Device management default Specify ANMS service domain name URL Input service URL...

  • Page 58: Sms

    5G Modem 5.2.1 SMS SMS service Item Value Setting Description Check the Enable box to activate this SMS function The box is unchecked by Click Add will pop-up MAC control rule configuration page default Select SIM or modem storage SMS storage SIM by default pecify a number (1-10) for message count to reserve some available storage 0 by default...
  • Page 59 5G Modem Account Configuration Item Value Setting Description The box is unchecked by Sender Phone Number for the received SMS Phone number#1 default The box is unchecked by Check the Enable box to activate this SMS function Application default Check the Enable box to activate this SMS function The box is unchecked by Check the Enable box to activate this SMS function Enable...
  • Page 60 5G Modem The box is unchecked by Check the Enable box to activate this SMS notification function Cellular Status default The box is unchecked by Check the Enable box to activate this SMS notification function Cellular Reconnect default The box is unchecked by Check the Enable box to activate this SMS notification function Reboot default...

  • Page 61: Command Script

    5G Modem New SMS Item Value setting Description Remote Administrator Write the receivers to send SMS. User need to add the semicolon and Host Definition compose multiple receivers that can group send SMS. Text Message Write the SMS context to send SMS. Click the Send button, above text message will be sent as a SMS.

  • Page 62: System Log

    5G Modem Command Script Item Value Setting Description Enter a short description for the applied Command Script. 1.An optional setting Command Script 2.Any string Check the Enable box to activate the Command Script function. The box is unchecked by Enable default 5.2.3 System log...
  • Page 63 5G Modem System Log Item Value Setting Description Check the Enable box to activate the system log function The box is unchecked by Enable default Specify Collector IP System log server IP 0.0.0.0 by default Specify Collector Port System log server port 0 by default...
