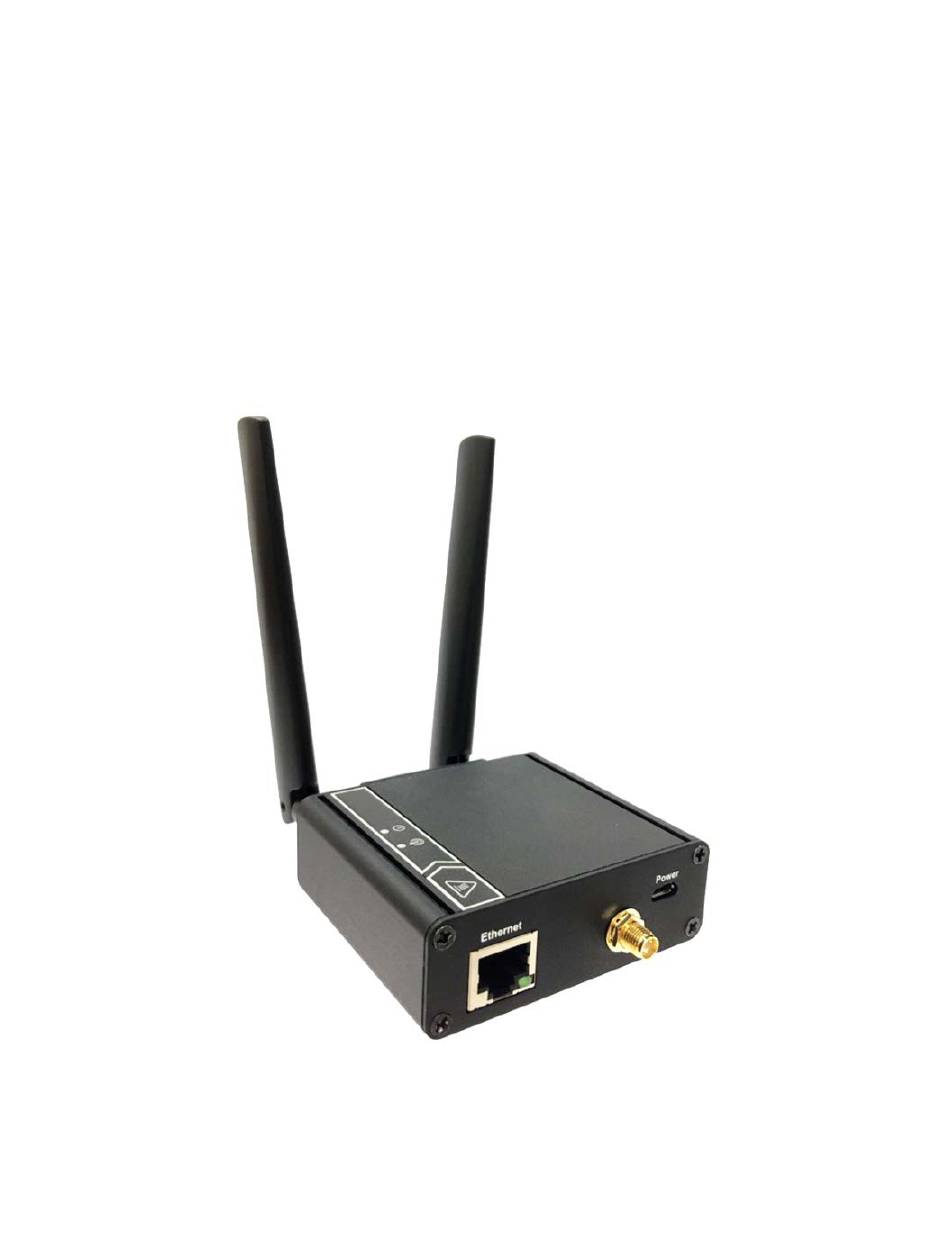

- Page 1 4G Modem IDG400-0TE01 (LTE cat. 4) User Manual...
-
Page 2: Table Of Contents
4G Modem Chapter 1 Introduction ............................4 1.1 Introduction ............................. 4 1.2 Contents List ........................... 5 1.2.1 Package Contents ........................5 1.3 Hardware Configuration ........................6 1.4 LED Indication ..........................7 1.5 Installation & Maintenance Notice ....................7 1.5.1 SYSTEM REQUIREMENTS ....................7 1.5.2 WARNING ........................... - Page 3 4G Modem 3.2.1 SMS ........................... 27...
-
Page 4: Chapter 1 Introduction
Chapter 1 Introduction 1.1 Introduction Congratulations on your purchase of AMIT’s IDG400 M2M Cellular Modem. With this AMIT cellular modem you have made a great first step in the world of connected Internet of things (IOT) by simply inserting a SIM card from the local mobile carrier into this device to get things connected. -
Page 5: Contents List
4G Modem 1.2 Contents List 1.2.1 Package Contents #Standard Package Items Description Contents Quantity IDG400-0TE01 1pcs 4G Modem Cellular Antenna 2pcs MicroUSB Cable 1pcs RJ45 Cable 1pcs #Optional Package Items Description Contents Quantity 1pcs or 2 pcs Extender (1 pcs needed for din-rail and 2 pcs... -
Page 6: Hardware Configuration
4G Modem Power Adapter 1pcs Plug(US/EU/AU/UK) 1PCS 1.3 Hardware Configuration Left View Ethernet GPS Antenna (optional) Right View 3G/4G 3G/4G Antenna Antenna Reset Button... -
Page 7: Led Indication
4G Modem ※Reset Button The RESET button provides user with a quick and easy way to resort the default setting. Press the RESET button continuously for 6 seconds, and then release it. The device will restore to factory default settings. ※... -
Page 8: Warning
4G Modem 1.5.2 WARNING Only use the power adapter that comes with the package. Using a different voltage rating power adaptor is dangerous and may damage the product. Do not open or repair the case yourself. If the product is too hot, turn off the power immediately Attention and have it repaired at a qualified service center. - Page 9 4G Modem Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 10: Hot Surface Caution
4G Modem 1.5.3 HOT SURFACE CAUTION CAUTION: The surface temperature for the metallic enclosure can be very high! Especially after operating for a long time, installed at a closed cabinet without air conditioning support, or in a high ambient temperature space. -
Page 11: Product Information For Ce Red Requirements
4G Modem 1.5.4 Product Information for CE RED Requirements The following product information is required to be presented in product User Manual for latest CE RED requirements. (1) Frequency Band & Maximum Power 1.a Frequency Band for Cellular Connection (for EC25-E version) Band number Operating Frequency Max output power... - Page 12 Ensure the unit is fixed tightly to reduce the likelihood of injury due to exposure to mechanical hazards if dropped. (5) Manufacture Information Manufacture Name: AMIT Wireless Inc. Manufacture Address: No. 28, Lane 31, Sec. 1, Huandong Rd., Sinshih Dist., Tainan 74146, Taiwan...
-
Page 13: Hardware Installation
4G Modem 1.6 Hardware Installation This chapter describes how to install and configure the hardware 1.6.1 Mount the Unit The IDG400 series can be placed on a desktop, or use extender to place on DIN-Rail bracket or mount on the wall. -
Page 14: Connecting To The Network Or A Host
4G Modem 1.6.3 Connecting to the Network or a Host The IDG400 series provides one RJ45 port to connect to 10/100Mbps Ethernet. It can auto detect the transmission speed on the network and configure itself automatically. Connect one Ethernet cable to the RJ45 port (LAN) of the device and plug another end of the Ethernet cable into your computer’s network port to connect this device to the host PC for device configuration. -
Page 15: Chapter 2 Setup
4G Modem Chapter 2 Setup The IDG400 series connect to a machines via the 10/100 fast ethernet interface for 3G/4G network connection. IDG400 series also provides another function with NAT router. It can help the network application more flexible. Also an optional GNSS function is supported to provide the location service. 2.1 Network Network Page Item... -
Page 16: Cellular
4G Modem 2.1.2 Cellular Device Mode Item Value setting Description Auto 1. A Must filled setting The unit will detect the SIM and set an APN from internal database. 2. By default Auto is Manual selected User must set APN manually. 1. -
Page 17: Ethernet
4G Modem 1. An Optional setting Enter the PIN (Personal Identification Number) code if it needs to unlock your PIN Code 2. String format : SIM card. interger Check the Enable box to enable the MTU (Maximum Transmission Unit) limit, and specify the MTU for the 3G/4G connection. -
Page 18: Port Forwarding
4G Modem DHCP Setting Item Value setting Description 1. Numberic string IP Pool Start format. The IP Pool of this DHCP Server. It is Starting Address entered in this field. 2. A Must filled setting 1. Numberic string IP Pool End format. - Page 19 4G Modem Virtual Server Rule Configuration Item Value setting Description 1. String format can be Name any text The name of current rule 2. A Must filled setting This field is to specify the IP address of the interface selected in the WAN Server IP A Must filled setting Interface setting above.
-
Page 20: Ddns
4G Modem When “TCP(6) & UDP(17)” is selected It means the option “Protocol” of packet filter rule is TCP and UDP. Public Port selected a predefined port from Well-known Service, and Private Port is the same with Public Port number. Public Port is selected Single Port and specify a port number, and Private Port can be set a Single Port number. - Page 21 4G Modem DDNS Item Value setting Description The box is unchecked by DDNS Check the Enable box to activate this function. default DynDNS.org is set by Select your DDNS provider of Dynamic DNS. It can be DynDNS.org, NO- Provider default IP.com, TZO.com etc...
-
Page 22: System
4G Modem 2.2 System This section provides the configuration of LAN and VLAN. VLAN is an optional feature, and it depends on the product specification of the purchased gateway. 2.2.1 System Time Device Mode Item Value setting Description Show the current time of the unit. Current Time When select Auto, unit will sync the time via cellular cell, and then try to use 1. -
Page 23: Gnss
4G Modem 2.2.2 GNSS GNSS Item Value setting Description GNSS The box is unchecked by Check Enable box to activate functions. GNSS default Remote Host Click Edit button will pop-up the remote host setting page. Remote Host Item Value setting Description Host IP A Must filled setting... -
Page 24: Chapter 3 Administrator
4G Modem Value Range: 1 ~ 65535. Sending Interval A Must filled setting Specify the time interval (seconds) between two NMEA packets. Value Range: 1 ~255 seconds. Prefix Message String format: any text Specify optional prefix string with specific information if your backend server can recognize. -
Page 25: Password & Mmi
4G Modem 3.1.2 Password & MMI Password Item Value setting Description 1. String: any text 2. The default password Old Password Enter the current password to enable you unlock to change password. for web-based MMI is ‘admin’. New Password String: any text Enter new password New Password String: any text... -
Page 26: Reboot & Reset
4G Modem 3.1.3 Reboot & Reset Device Mode Item Value setting Description Chick the Reboot button to reboot the unit immediately Reboot Reset to Default Click the Reset button to reset the device configuration to its default value. 3.1.4 Telnet & SSH Telnet &... -
Page 27: Utility
4G Modem 3.2 Utility 3.2.1 SMS SMS – SMS Service Item Value setting Description The box is unchecked by This is the SMS switch. If the box checked that the SMS function enable, if default the box unchecked that the SMS function disable. The storage location of SMS. - Page 28 4G Modem New SMS Item Value setting Description Write the receivers to send SMS. User need to add the semicolon and Receiver compose multiple receivers that can group send SMS Write the SMS context to send SMS. The router supports up to a maximum of Text Message 512 characters for SMS context length.
- Page 29 4G Modem SMS Inbox Item Value setting Description Show the phone number and timestamp of the SMS SMS Inbox Detail: Click this button will pop-up the SMS Inbox to show the content. Delete: Click this button will delete the SMS. SMS Inbox Item Value setting...
