- Page 1 5G EthernetModem IDG450-0GE01 (5G NR) User Manual...
-
Page 2: Table Of Contents
5G Ethernet Modem Chapter 1 Introduction ............................4 1.1 Introduction .............................. 4 1.2 Contents List ............................5 1.2.1 Package Contents ........................... 5 1.3 Hardware Configuration .......................... 6 1.4 LED Indication ............................7 1.5 Installation & Maintenance Notice ......................7 1.5.1 SYSTEM REQUIREMENTS ....................... 7 1.5.2 WARNING ............................ - Page 3 5G Ethernet Modem 3.1.4 SSH ............................. 29 3.1.5 Remote Administrator ........................29...
-
Page 4: Chapter 1Introduction
5G Ethernet Modem Chapter 1Introduction 1.1 Introduction Congratulations on your purchase of AMIT’s IDG450M2M 5G Modem. With this AMIT 5Gmodem you have made a great first step in the world of connected Internet of things (IOT)by simply inserting a SIM card from the local mobile carrier into this device to get things connected. -
Page 5: Contents List
5G Ethernet Modem 1.2 Contents List 1.2.1 Package Contents #Standard Package Items Description Contents Quantity IDG450-0GE01 5G Ethernet Modem Cellular Antenna 4pcs RJ45 Cable Power Adapter (DC 5V/2A) #Optional Package Items Description Contents Quantity left 1 set Wall mount kit... -
Page 6: Hardware Configuration

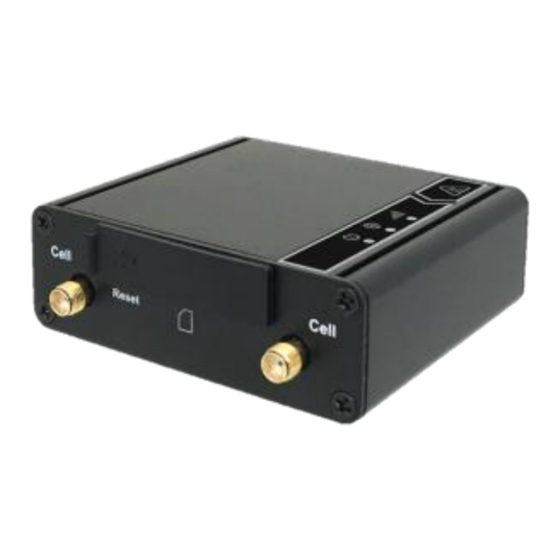

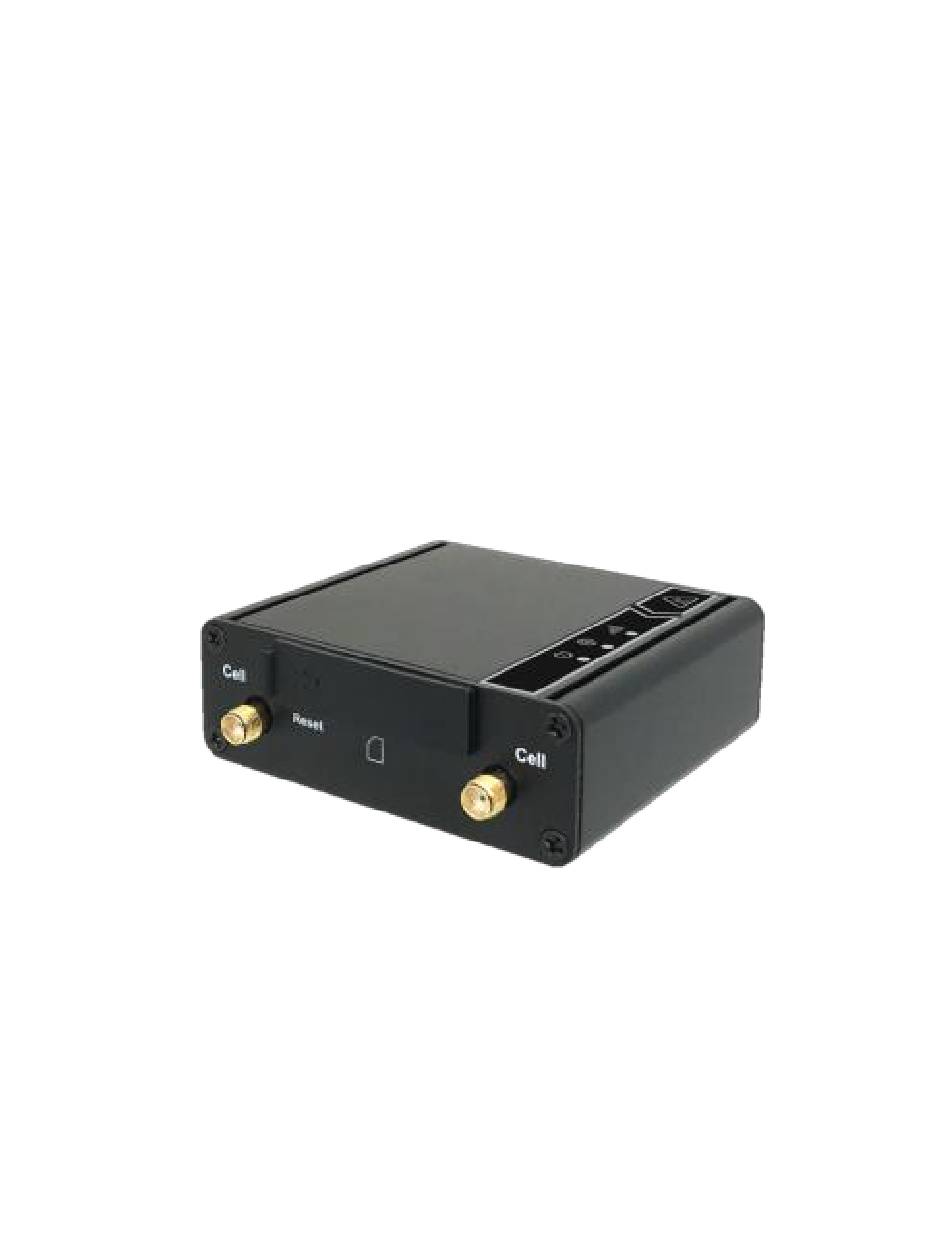

5G Ethernet Modem 1.3 Hardware Configuration Right View Power (USB-C) Antenna Antenna Ethernet RightView Reset Antenna Button Slot Antenna ※Reset Button RESET button provides user a quick and easy way to resort the default setting. Press the RESET button continuously for 6 seconds, and then release it. -
Page 7: Led Indication
5G Ethernet Modem 1.4 LED Indication LEDColor Indication Description Steady On: Device power is on Blue Off: Device power is off Power Red and Steady On: Cellular is not registered to network. Blue Red and Flash: Cellular is registering to network. Blue and Steady On: The device registers to 5G network. -
Page 8: Warning
5G Ethernet Modem 1.5.2 WARNING Only use the power adapter that comes with the package. Using a different voltage rating power adaptor is dangerous and may damage the product. Do not open or repair the case yourself. If the ... - Page 9 5G Ethernet Modem Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 10: Hot Surface Caution
5G Ethernet Modem 1.5.3 HOT SURFACE CAUTION CAUTION: The surface temperature for the metallic enclosure can be very high! Especially after operating for a long time, installed at a closed cabinet without air conditioning support, or in a high ambient temperature space. -
Page 11: Product Information For Ce Red Requirements
5G Ethernet Modem 1.5.4 Product Information for CE RED Requirements The following product information is required to be presented in product User Manual for latest CE RED requirements. (1) Frequency Band & Maximum Power 1.a Frequency Band for Cellular Connection (for EC25-E version) Band number Operating Frequency Max output power... - Page 12 Ensure the unit is fixed tightly to reduce the likelihood of injury due to exposure to mechanical hazards if dropped. (5) Manufacture Information Manufacture Name: AMIT Wireless Inc. Manufacture Address: No. 28, Lane 31, Sec. 1, Huandong Rd., Sinshih Dist., Tainan 74146, Taiwan...
-
Page 13: Hardware Installation
5G Ethernet Modem 1.6 Hardware Installation This chapter describes how to install and configure the hardware 1.6.1Mount the Unit TheIDG450 series can be placed on a desktop, or use extender to place on DIN-Rail bracket or mount on the wall. 1.6.2Insert the SIM Card WARNING: BEFORE INSERTING OR CHANGING THE SIM CARD, PLEASE MAKE SURE THAT POWER OF THE DEVICE IS SWITCHED OFF. -
Page 14: Connecting To The Network Or A Host
5G Ethernet Modem 1.6.3Connecting to the Network or a Host The IDG450 seriesprovides one RJ45 port to connect to 10/100/1000/2500Mbps Ethernet. It can auto detect the transmission speed on the network and configure itself automatically. Connect one Ethernet cable to the RJ45 port (LAN) of the device and plug another end of the Ethernet cable into your computer’s network port to connect thisdevice to the host PC for device configuration. -
Page 15: Chapter 2Setup
5G Ethernet Modem Chapter 2Setup The IDG450 series connect to a machine via the Ethernet interface for 3G/4G/5G network connection.IDG450 series also provides another function with NAT router. It can help the network application more flexible. 2.1 Network Network Page Item Description Device Mode... -
Page 16: Cellular
5G Ethernet Modem 2.1.2Cellular Device Mode Item Value setting Description Auto 1. A Must filled setting The unit will detect the SIM and set an APN from internal database. 2. By default Auto is Manual selected User must set APN manually. 1. - Page 17 5G Ethernet Modem protocol to be authenticated with the carrier’s server. When Auto is selected, it means it will authenticate with the server either PAP or CHAP. 1. A Must filled setting Specify the IP type of the network service provided by your 3G/4G network. IP Type 2.
-
Page 18: Ethernet
5G Ethernet Modem 1. IPv4 format. Default Gateway Thegateway setting ofthis configed static IP. AnOptional setting 1. IPv4 format. Primary DNS Assigned DNS server of this configed static IP. AnOptional setting 1. IPv4 format. Secondary DNS Assigned DNS server of this configed static IP. AnOptional setting 2.1.3Ethernet Ethernet IP... -
Page 19: Port Forwarding
5G Ethernet Modem DHCP Setting Item Value setting Description 1. Numberic string IP Pool Start format. The IP Pool of this DHCP Server. It is Starting Address entered in this field. 2. A Must filled setting 1. Numberic string IP Pool End format. - Page 20 5G Ethernet Modem Virtual Server Rule Configuration Item Value setting Description 1. String format can be Name any text The name of current rule 2. A Must filled setting This field is to specify the IP address of the interface selected in the WAN Server IP A Must filled setting Interface setting above.
- Page 21 5G Ethernet Modem It means the option “Protocol” of packet filter rule is UDP. Public Port selected a predefined port from Well-known Service, and Private Port is the same with Public Port number. Public Port is selected Single Port and specify a port number, and Private Port can be set a Single Port number.
-
Page 22: Ddns
5G Ethernet Modem 2.1.5DDNS DDNS Item Value setting Description The box is unchecked by DDNS Check the Enable box to activate this function. default DynDNS.org is set by Select your DDNS provider of Dynamic DNS. It can be DynDNS.org, NO- Provider default IP.com,TZO.com etc... - Page 23 5G Ethernet Modem Device Mode Item Value setting Description Show the current time of the unit. Current Time When select Auto, unit will sync the time via cellular cell,and then try to use 1. A Must-filled item. Sync Time 2. Atuo is selected by NTP if cellular cell doesn’t provide time information.
-
Page 24: Language
5G Ethernet Modem 2.2.2Language Language Item Value setting Description Language setiing of the WebGUI. 1. A Must-filled item. Language List 2. English is selected by default. 2.2.3System Information System Information Item Value setting Description Show the model name of the device Model Name 2.2.4Scheduling Scheduling... - Page 25 5G Ethernet Modem Press Add to create a schedule rule for system. Time Schedule Time Schedule Configuration Item Value Setting Description Rule Name String: any text Set rule name Rule Policy Default Inactivate Inactivate/activate the function been applied to in the time period below Time Period Definition Item Value Setting...
-
Page 26: Chapter 3Administrator
5G Ethernet Modem Chapter 3Administrator 3.1 Manager 3.1.1 FW Upgrade Firmware Information Item Value setting Description FW Version It displays the firmware version of the product FW Date It displays the build time of the firmware Firmware Upgrade Item Value setting Description Select firmware file to be upgraded FW Path... -
Page 27: Password & Mmi
5G Ethernet Modem 3.1.2Password & MMI Username Item Value setting Description 1. The default username Username Display the current username for the administrator is ‘admin’. New Username String: any text Enter the new username Save Click Save button to save the settings Password Item Value setting... -
Page 28: Reboot & Reset
5G Ethernet Modem 1. String: any text 2. The default password Old Password Enter the current password to enable you unlock to change password. for web-based MMI is ‘admin’. New Password String: any text Enter new password New Password String: any text Enter new password again to confirm Confirmation Save... - Page 29 5G Ethernet Modem 3.1.4SSH Item Value setting Description Check the Enable box to activate the SSH Telnet function for connecting from LAN or 1. Default value is WAN interfaces. disable such service You can set which number of Service Port you want to provide for the corresponding 1.
- Page 30 5G Ethernet Modem Rule Configuration Item Value setting Description Name String: any text Set rule name Protocol HTTP is set by default Select HTTP or HTTPS method for router access. This field is to specify the remote host to assign access right for remote access. Remote IP A Must filled setting Select Any IP to allow any remote hosts...
