- Page 1 Embedded 4G Modem MDG100-0TM01 (LTE cat. 4) User Manual...
-
Page 2: Table Of Contents
Embedded 4G Modem Chapter 1 Introduction ............................3 1.1 Introduction .............................. 3 1.2 Contents List ............................4 1.2.1 Package Contents ........................... 4 1.3 Hardware Configuration .......................... 5 1.4 Installation..............................6 1.4.1 SYSTEM REQUIREMENTS ....................... 6 1.4.2 Product Information ........................8 1.5 Hardware Installation .......................... -
Page 3: Chapter 1 Introduction
Embedded 4G Modem Chapter 1 Introduction 1.1 Introduction Congratulations on your purchase of AMIT’s MDG100 M2M Cellular Embedded Modem. With this AMIT cellular modem you have made a great first step in the world of connected Internet of things (IoT) by simply inserting a SIM card from the local mobile carrier into this device to get things connected. -
Page 4: Contents List
Embedded 4G Modem 1.2 Contents List 1.2.1 Package Contents #Standard Package Items Description Contents Quantity MDG100-0TM01 1pcs Embedded 4G Modem #Optional Package Items Description Contents Quantity Cellular Antenna 2 pcs RF Cable SMA to iPex 100mm / 120mm / 150mm... -
Page 5: Hardware Configuration

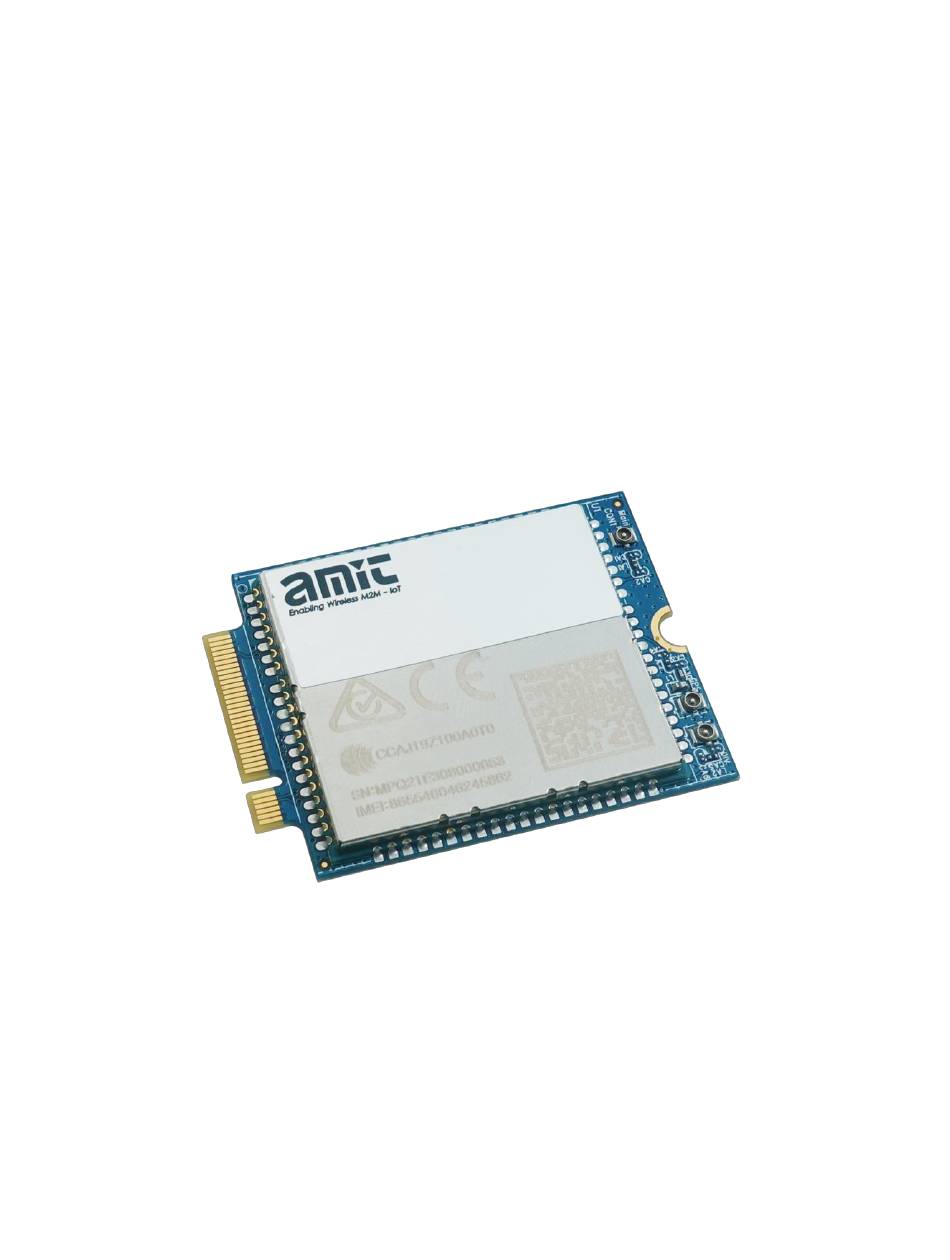

Embedded 4G Modem 1.3 Hardware Configuration Top View Main LTE Module Bottom View... -
Page 6: Installation
Embedded 4G Modem 1.4 Installation 1.4.1 SYSTEM REQUIREMENTS Mini-PCIe with USB2.0 interface Network Requirements 3G/4G cellular service subscription Computer with the following: Windows®, Macintosh, or Linux-based operating system Web-based Configuration Utility Browser Requirements: Requirements Internet Explorer 10.0 or higher ... - Page 7 Embedded 4G Modem Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 8: Product Information
Embedded 4G Modem 1.4.2 Product Information The following product information is required to be presented in product User Manual (1) Frequency Band & Maximum Power 1.a Frequency Band for Cellular Connection (for EC25-EU version) Band number Operating Frequency Max output power LTE FDD BAND 1 Uplink: 1920-1980 MHz... - Page 9 (2) DoC Information You can get the DoC information of this product from the following URL: http://www.amitwireless.com/products-doc/ (3) Manufacture Information Manufacture Name: AMIT Wireless Inc. Manufacture Address: No. 28, Lane 31, Sec. 1, Huandong Rd., Sinshih Dist., Tainan 74146, Taiwan...
-
Page 10: Hardware Installation
Embedded 4G Modem 1.5 Hardware Installation This chapter describes how to install and configure the hardware 1.5.1 Insert the SIM Card WARNING: BEFORE INSERTING OR CHANGING THE SIM CARD, PLEASE MAKE SURE THAT POWER OF THE DEVICE IS SWITCHED OFF. SIM card slot is located in the bottom area of MDG100 series. - Page 11 Embedded 4G Modem 1.5.2 Connecting to the Host Board The MDG100 is a modem device with M.2 interface with USB 2.0. User needs to put the card on a M.2 Socket and link cellular antenna on the modem to enable the cellular connection. Put the MDG100 on M.2 socket User can check device information in several different OS as below.
-
Page 12: Setup By Configuring Web Ui
Embedded 4G Modem 1.5.2 Setup by Configuring WEB UI User can browse web UI to configure the modem device. Type in the IP Address (http://172.16.0.1) When you see the login page, enter the user name and password and then click ‘Login’ button. The default settingg for both username and password is ‘admin’... -
Page 13: Chapter 2 Setup
Embedded 4G Modem Chapter 2 Setup The MDG100 series connect to a machine via USB 2.0 interface on Mini-PCIe Socket for 3G/4G network connection. MDG100 provides NAT and Modem functions and helps the network application more flexible. 2.1 Network Network Page Item Description Device Mode... -
Page 14: Cellular
Embedded 4G Modem 2.1.2 Cellular Device Mode Item Value settingg Description Auto The unit will switch SIM path automatically. 1. A Must filled settingg Internal SIM Select 2. By default Internal is The unit will use SIM slot on board. selected External The unit will use SIM path via Mini-PCIe interface. - Page 15 Embedded 4G Modem Select PAP (Password Authentication Protocol) and use such protocol to be authenticated with the carrier’s server. 1. A Must filled settingg Select CHAP (Challenge Handshake Authentication Protocol) and use such Authentication 2. By default Auto is protocol to be authenticated with the carrier’s server. selected When Auto is selected, it means it will authenticate with the server either PAP or CHAP.
-
Page 16: Ethernet
Embedded 4G Modem 1. IPv4 format. Default Gateway The gateway settingg of this configed static IP. An Optional settingg 1. IPv4 format. Primary DNS Assigned DNS server of this configed static IP. An Optional settingg 1. IPv4 format. Secondary DNS Assigned DNS server of this configed static IP. -
Page 17: Port Forwarding
Embedded 4G Modem DHCP Settingg Item Value settingg Description 1. Numberic string IP Pool Start format. The IP Pool of this DHCP Server. It is Starting Address entered in this field. 2. A Must filled settingg 1. Numberic string IP Pool End format. - Page 18 Embedded 4G Modem Virtual Server Rule Configuration Item Value settingg Description 1. String format can be Name any text The name of current rule 2. A Must filled settingg This field is to specify the IP address of the interface selected in the WAN Server IP A Must filled settingg Interface settingg above.
-
Page 19: Ddns
Embedded 4G Modem When “TCP(6) & UDP(17)” is selected It means the option “Protocol” of packet filter rule is TCP and UDP. Public Port selected a predefined port from Well-known Service, and Private Port is the same with Public Port number. Public Port is selected Single Port and specify a port number, and Private Port can be set a Single Port number. - Page 20 Embedded 4G Modem DDNS Item Value settingg Description The box is unchecked by DDNS Check the Enable box to activate this function. default DynDNS.org is set by Select your DDNS provider of Dynamic DNS. It can be DynDNS.org, NO- Provider default IP.com, TZO.com etc...
-
Page 21: System
Embedded 4G Modem 2.2 System This section provides the configuration of system features. 2.2.1 System Time System Time Item Value settingg Description Show the current time of the unit. Current Time When select Auto, unit will sync the time via cellular cell, and then try to use 1. -
Page 22: Language
Embedded 4G Modem 2.2.2 Language Language Item Value settingg Description Language setiing of the WebGUI. 1. A Must-filled item. Language List 2. English is selected by default. 2.2.3 System Information System Information Item Value settingg Description Show the model name of the device Model Name Serial Number Show the serial number of the device... - Page 23 Embedded 4G Modem Press Add to create a schedule rule for system. Time Schedule Time Schedule Configuration Item Value Settingg Description Rule Name String: any text Set rule name Rule Policy Default Inactivate Inactivate/activate the function been applied to in the time period below Time Period Definition Item Value Settingg...
-
Page 24: Chapter 3 Administrator
Embedded 4G Modem Chapter 3 Administrator 3.1 Manager This section provides configuration to manage the device. 3.1.1 FW Upgrade Firmware Information Item Value settingg Description FW Version It displays the firmware version of the product FW Date It displays the build time of the firmware Firmware Upgrade Item Value settingg... -
Page 25: Password & Mmi
Embedded 4G Modem 3.1.2 Password & MMI Password Item Value settingg Description 1. String: any text 2. The default password Old Password Enter the current password to enable you unlock to change password. for web-based MMI is ‘admin’. New Password String: any text Enter new password New Password... -
Page 26: Reboot & Reset
Embedded 4G Modem 3.1.3 Reboot & Reset Device Mode Item Value settingg Description Chick the Reboot button to reboot the unit immediately Reboot Reset to Default Click the Reset button to reset the device configuration to its default value. 3.1.4 SSH... -
Page 27: Remote Administrator
Embedded 4G Modem Item Value settingg Description Check the Enable box to activate the SSH Telnet function for connecting from LAN or 1. Deafule value is WAN interfaces. disable such service. You can set which number of Service Port you want to provide for the corresponding 2. -
Page 28: At & Nmea
Embedded 4G Modem Item Value settingg Description Name String: any text Set rule name Protocol HTTP is set by default Select HTTP or HTTPS method for router access. This field is to specify the remote host to assign access right for remote access. Remote IP A Must filled settingg Select Any IP to allow any remote hosts...
