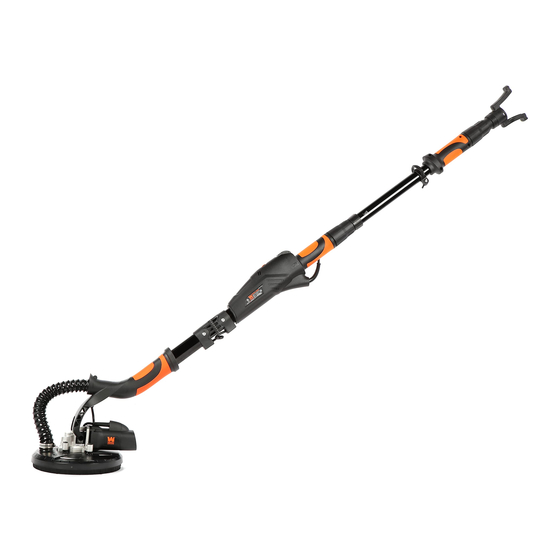

MODEL DW5062
VARIABLE SPEED
DRYWALL SANDER
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-800-232-1195 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DW5062 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wen DW5062

Summary of Contents for Wen DW5062

  • Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

  • Page 2: Table Of Contents

    CONTENTS WELCOME Introduction ..................... 3 Specifications ....................3 SAFETY General Safety Rules ..................4 Drywall Sander Safety Warnings ..............6 Electrical Information ..................8 BEFORE OPERATING Know Your Drywall Sander ................9 Assembly & Adjustments ................10 OPERATION & MAINTENANCE Operation ....................... 11 Maintenance ....................11 Troubleshooting Guide ..................12 Exploded View &...

  • Page 3: Welcome

    INTRODUCTION Thanks for purchasing the WEN Drywall Sander. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool.

  • Page 4: Safety

    GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

  • Page 6: Drywall Sander Safety Warnings

    DRYWALL SANDER SAFETY WARNINGS WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules. Failure to follow the safety instructions may result in serious personal injury. DRYWALL SANDER SAFETY 5. The rated speed of the accessories must be great- er than or equal to the tool’s maximum speed of 1500 1.
  • Page 7 DRYWALL SANDER SAFETY WARNINGS WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules. Failure to follow the safety instructions may result in serious personal injury. KICKBACK AND RELATED WARNINGS VIBRATION SAFETY Kickback is a sudden reaction to a pinched or snagged This tool vibrates during use.

  • Page 8: Electrical Information

    ELECTRICAL INFORMATION DOUBLE-INSULATED TOOLS The tool’s electrical system is double-insulated where two systems of insulation are provided. This eliminates the need for the usual three-wire grounded power cord. Double-insulated tools do not need to be grounded, nor should a means for grounding be added to the product. All exposed metal parts are isolated from the internal metal motor components with protecting insulation.

  • Page 9: Before Operating

    KNOW YOUR DRYWALL SANDER UNPACKING With the help of a friend or trustworthy foe, such as one of your in-laws, carefully remove the drywall sander from the packaging and place it on a sturdy, flat surface. Make sure to take out all contents and accessories. Do not dis- card the packaging until everything is removed.

  • Page 10: Assembly & Adjustments

    ASSEMBLY & ADJUSTMENTS WARNING! To prevent injury from accidental operation, make sure the tool is switched OFF and unplugged from the power source before assembling the tool or making any adjustments. ASSEMBLING THE DRYWALL SANDER Fig. 1 1. Unfold the front and back of the drywall sander. Push the locking clasp (Fig.

  • Page 11: Operation & Maintenance

    OPERATION OPERATING THE DRYWALL SANDER Fig. 5 1. Hold the machine with both hands. 2. Do not hold the machine by the machine’s head. 3. Before operation, make sure every fastener and nut has been properly engaged and that the sanding pad has been properly installed and aligned.

  • Page 12: Troubleshooting Guide

    TROUBLESHOOTING GUIDE WARNING! Stop using the tool immediately if any of the following problems occur or risk serious personal injury. If you have any questions, please contact customer service at 1-800-232-1195 (M-F 8-5 CST), or email techsupport@wenproducts.com. PROBLEM CAUSE SOLUTION 1.

  • Page 13: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST 108 108 NOTE: Not all parts may be available for purchase. Parts and accessories that wear down over the course of normal use are not covered under the warranty.
  • Page 14 EXPLODED VIEW & PARTS LIST Part No. Description Qty. Part No. Description Qty. 6369-001 M6x15 Screw DW5062-038 Specification Label 6369-002 Ø6 Washer 6369-039 Screw M4x20 DW5062-003 Sanding Pad 6369-040 Brush Holder 6369-004 Output Shaft 6369-041 Carbon Brush 6369-006 Oil Seal...
  • Page 15 6369-101 Adjustable Ring 6369-095 Switch Button 6369-103 Flexible Hose 6369-098 Back Screw Nut 6362-054 Middle Connector 6369-077 Aluminium Pipe Ø47 Vacuum DW5062-102 Adapter 6369-076 Left Sub-Handle Shoulder Strap with 6369-090 Latch Pivot DW5062-104 hook 6369-091 Fixed Plate DW5062-105 Hook Seat...

  • Page 16: Warranty Statement

    WARRANTY STATEMENT WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship during personal use for a period of two (2) years used for professional or commercial use.
