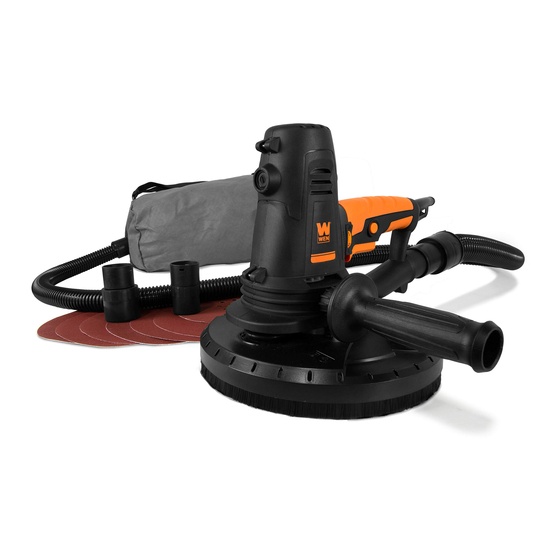

MODEL DW1085
HANDHELD
DRYWALL SANDER
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-800-232-1195 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DW1085 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wen DW1085

Summary of Contents for Wen DW1085

  • Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

  • Page 2: Table Of Contents

    CONTENTS WELCOME Introduction ..................... 3 Specifications ....................3 SAFETY General Safety Rules ..................4 Drywall Sander Safety Warnings ..............6 Electrical Information ..................8 BEFORE OPERATING Know Your Drywall Sander ................9 Assembly & Adjustments ................10 OPERATION & MAINTENANCE Operation ....................... 11 Maintenance ....................12 Exploded View &...

  • Page 3: Welcome

    INTRODUCTION Thanks for purchasing the WEN Drywall Sander. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool.

  • Page 4: Safety

    GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

  • Page 6: Drywall Sander Safety Warnings

    DRYWALL SANDER SAFETY WARNINGS WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules. Failure to follow the safety instructions may result in serious personal injury. DRYWALL SANDER SAFETY 5. The rated speed of the accessories must be great- er than or equal to the tool’s maximum speed of 2300 1.
  • Page 7 DRYWALL SANDER SAFETY WARNINGS WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules. Failure to follow the safety instructions may result in serious personal injury. KICKBACK AND RELATED WARNINGS VIBRATION SAFETY Kickback is a sudden reaction to a pinched or snagged This tool vibrates during use.

  • Page 8: Electrical Information

    ELECTRICAL INFORMATION DOUBLE-INSULATED TOOLS The tool’s electrical system is double-insulated where two systems of insulation are provided. This eliminates the need for the usual three-wire grounded power cord. Double-insulated tools do not need to be grounded, nor should a means for grounding be added to the product. All exposed metal parts are isolated from the internal metal motor components with protecting insulation.

  • Page 9: Before Operating

    KNOW YOUR DRYWALL SANDER UNPACKING With the help of a friend or trustworthy foe, such as one of your in-laws, carefully remove the drywall sander from the packaging and place it on a sturdy, flat surface. Make sure to take out all contents and accessories. Do not dis- card the packaging until everything is removed.

  • Page 10: Assembly & Adjustments

    Fig. 2 disc must align with the dust extraction hole in the base pad (Fig. 2). Replacement sanding discs can be ordered from wen- products.com. ATTACHING THE DUST HOSE Align and insert the dust port connector (Fig. 3 - 1) all the way onto the dust port on the back of your sander (Fig.

  • Page 11: Operation & Maintenance

    OPERATION WARNING! To prevent serious injury, make sure all the warnings and instructions have been read and un- derstood before operating this tool. VARIABLE SPEED CONTROL Fig. 4 Use the variable speed dial (Fig. 4 - 1) to adjust the base pad’s rotating speed between 1500 and 2300 RPM, depending on your task at hand.

  • Page 12: Maintenance

    MAINTENANCE WARNING! To avoid accidents, make sure the power switch is in the OFF position and unplug the tool from the electrical outlet before cleaning or performing any maintenance. Servicing of the tool must be performed by a qualified technician. GENERAL MAINTENANCE 1.
  • Page 13 Replacement carbon brushes (Part No. 6362-040) can be ordered from wenproducts.com. Only genuine WEN replacement brushes designed specifically for your tool should be used. 1. To inspect the brushes, open the carbon brush covers (Fig. 7 - 1) by turning them counterclockwise with a flat-head screwdriver (not included).

  • Page 14: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST NOTE: Not all parts may be available for purchase. Parts and accessories that wear down over the course of normal use are not covered under the warranty.
  • Page 15 EXPLODED VIEW & PARTS LIST Part No. Description Qty. Part No. Description Qty. Pin ɸ3x16 6362-001 Hex Screw M6x14 6362-035 6362-002 M6 Spring 6362-036 Seal Belt ɸ1.2 6362-003 M6 Stop Button 6362-037 Bearing 606Z DW5062-003 Sanding Pad 6362-038 Tension Spring 6362-005 Oil Seal 6362-039...

  • Page 16: Warranty Statement

    WARRANTY STATEMENT WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship during personal use for a period of two (2) years used for professional or commercial use.
