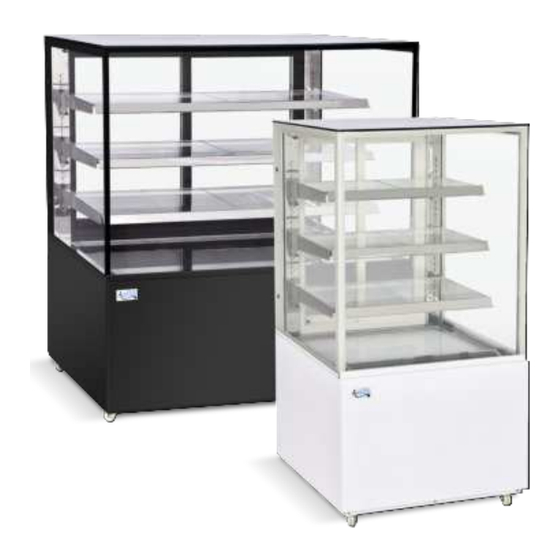

Refrigeration Square Bakery Cases
Refrigerated Bakery Models:
224BC36SB, 224BC36SW, 224BC48SB, 224BC48SW, 224BC60SB, 224BC60SW, 224BC72SB,
224BC72SW
Dry Bakery Models:
224BCD36SB, 224BCD36SW, 224BCD48SB, 224BCD48SW, 224BCD60SB, 224BCD60SW,
224BCD72SB, 224BCD72SW
Please read the manual thoroughly prior to equipment set-up,
operation, and maintenance.
User Manual
- 1 -
09/2022
Advertisement
Table of Contents
Related Manuals for Avantco 224BC36SB
Summary of Contents for Avantco 224BC36SB
- Page 1 User Manual Refrigeration Square Bakery Cases 09/2022 Refrigerated Bakery Models: 224BC36SB, 224BC36SW, 224BC48SB, 224BC48SW, 224BC60SB, 224BC60SW, 224BC72SB, 224BC72SW Dry Bakery Models: 224BCD36SB, 224BCD36SW, 224BCD48SB, 224BCD48SW, 224BCD60SB, 224BCD60SW, 224BCD72SB, 224BCD72SW Please read the manual thoroughly prior to equipment set-up, operation, and maintenance.
- Page 2 User Manual Warning DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING. PELIGRO - RIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA SER REPARADO SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO. NO PINCHAR LA TUBERÍA REFRIGERANTE.
- Page 3 User Manual Structure and Components Shelf The height of the Sliding Rear shelf is adjustable for Glass Doors various goods. For adjustment: 1. Take out the shelf 2. Move the shelf support to suitable height. Air Suction 3. Put the shelf on (Refrigerated Only) the supports.
- Page 4 User Manual Installation Please read this manual thoroughly prior to equipment set-up, operation, and maintenance. This unit is intended for use in a temperature-controlled environment less than 75°F and 55% relative humidity. Malfunction due to improper conditions is not covered under warranty. Important!!! Please Read Before Installation •...
- Page 5 User Manual Use and Caution Your new refrigerator is already factory-set to run at optimum temperatures for food safety and should require no adjustments. Digital Temperature Controller (Refrigerated models only) Front Panel Operation 1. Set temperature: Press button, the set temperature is displayed. Press to modify the displayed value.
- Page 6 User Manual Electrical • Please ensure that the required voltage is being supplied at all times. • The unit should be plugged into a grounded and properly-sized electrical outlet with appropriate over-current protection. Please refer to the electrical requirements on the unit’s nameplate. •...
- Page 7 User Manual Operation/Maintenance NOTE: We strongly recommend that any servicing be performed by an authorized service technician. Loading Product Do not block the air vents. • • Ensure all shelves are sitting level and properly secured before loading products. • Do not store flammable and explosive gas or liquids inside the unit. Cleaning the Condenser Coil •...
