Wen CV414 Instruction Manual

INSTRUCTION MANUAL

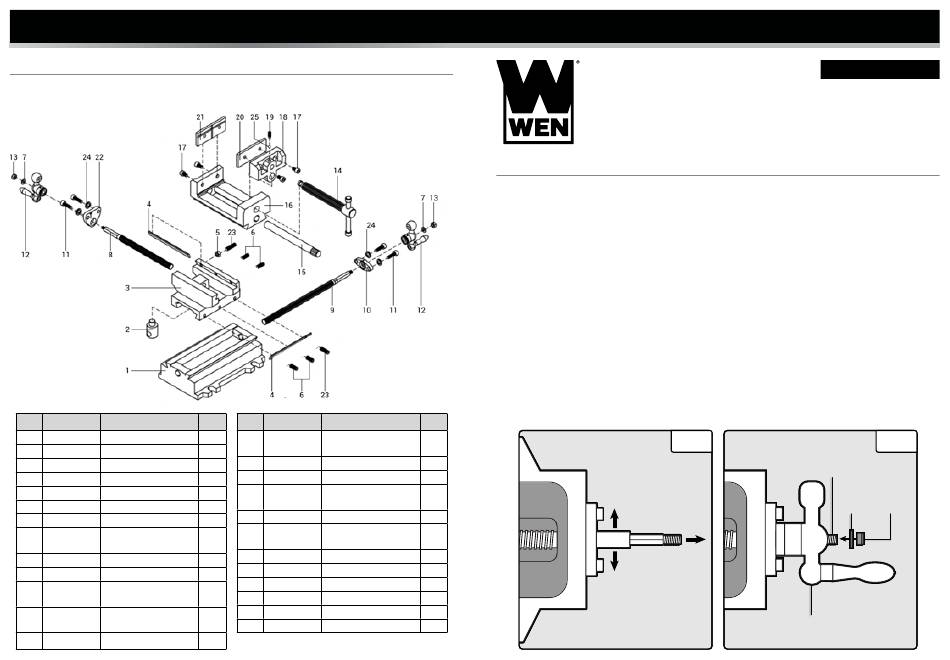

EXPLODED VIEW & PARTS LIST
No. Part No. Description
1 413CV-001 Base
2 413CV-002 Nut
3 413CV-003 Saddle
4 414CV-004 Gib
5 413CV-005 Hex Nut, M6
6 413CV-006 Set Screw, M6x15
7 413CV-007 Flat Washer, M6
Longitudinal Feed
8 414CV-008
Screw
9 413CV-009 Cross Feed Screw
10 413CV-010 Retaining Plate
Socket Head Bolt,
11 413CV-011
M6x16
Crank Handle
12 413CV-012
Assembly
13 413CV-013 Locking Nut, M6
Qty. No. Part No. Description
1 Leadscrew with
14 414CV-014
Handle
1
15 414CV-015 Guide Rod
1
16 414CV-016 Body
2
Socket Head Bolt,
1
17 413CV-017
M6x12
4
18 414CV-018 Movable Jaw
2
Dog Point Set Screw,
19 413CV-019
1
M6x10
20 414CV-020 Jaw Plate
1
21 414CV-021 Grooved Jaw Plate
1
22 413CV-022 Retaining Plate
4
23 413CV-023 Set Screw, M6x20
24 413CV-024 Lock Washer, M6
2
25 414CV-025 Ball Bearing
2
INSTRUCTION MANUAL
ASSEMBLY
1. Remove all components and parts from the box. Your cross vise includes the following hardware:
• (3) Hex Wrenches
• (2) Locking Nuts
• (2) Flat Washers
• (2) Crank Handles
2. If necessary, adjust the longitudinal (top) feed screw until the handle-mounting portion of the feed
screw protrudes beyond the vise body, as shown in Fig. 1 below. Turning the feed screw clockwise
retracts it; turning it counterclockwise advances it. Turn the feed screw fully clockwise until it can no
longer retract.
3. Mount one of the crank handles on the leadscrew, as shown in Fig. 2 below.
4. Secure the crank handle to the feed screw using the included flat washer and locking nut (Fig. 2).
Tighten the nut (turning clockwise) against the handle using a 10 mm socket (not included), then
back it off a quarter turn (turning counterclockwise). Turn the handle a couple of times. If it is difficult
to turn, loosen the nut. Adjust the nut as necessary to ensure that the handle turns smoothly and
advances the slide properly.
5. Repeat the same procedure to mount the remaining crank handle on the cross feed screw.
Qty.
1
1
1
4
1
1
1
1
1
2
4
1
V. 2022.04.08

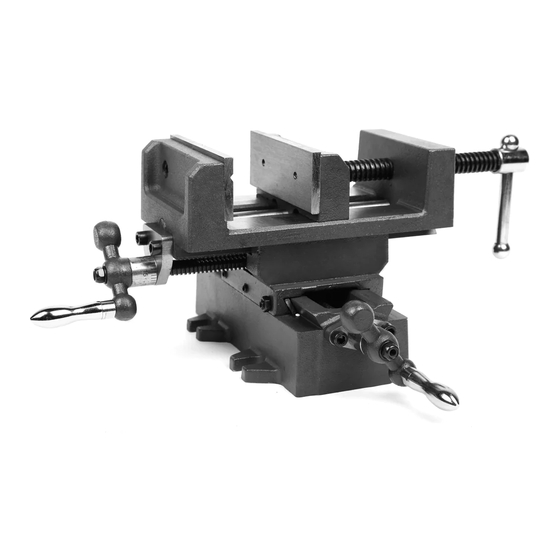

4.5-INCH CROSS VISE
Compatible with WEN Drill Presses: 4210, 4212, 4214, 4225, 4227
Fig. 1
Top View
Counterclockwise
Sends Feed Screw In
Out
Clockwise
Brings Feed Screw Out
MODEL 414CV, CV414
Fig. 2
Top View
Feed Screw
Flat Locking
Washer Nut
Crank Handle
