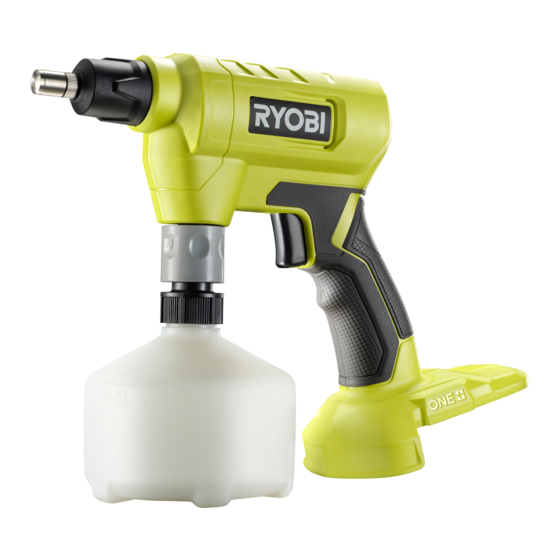

- Page 1 FRONT PAGE R18CWS10...
-
Page 2: Intended Use
■ If operating a power tool in a damp location is IMPORTANT! unavoidable, use a residual current device (RCD) It is essential that you read the instructions in this manual protected supply. Use of an RCD reduces the risk of before assembling, operating, and maintaining the electric shock. - Page 3 ■ Maintain power tools and accessories. Check for CORDLESS COMPACT SPRAYER SAFETY misalignment or binding of moving parts, breakage WARNINGS of parts and any other condition that may affect the power tool’s operation. If damaged, have the power ■ Always check for and repair leaks before using the tool repaired before use.
-
Page 4: Maintenance
■ Never blow through nozzles or other components by NOTE: Drain all of the spray materials from the spray mouth. tank into a container approved for chemicals. Do not store chemicals in the spray tank. ■ Avoid contact with chemicals. Immediately change clothing that are contaminated with plant control ■... -
Page 5: Symbols In This Manual
Wear eye protection. Wear appropriate respiratory mask. Do not expose the product to rain or damp conditions. Wear non-slip, heavy-duty protective gloves. Wear non-slip safety footwear when using the product. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. - Page 6 Original Instructions...
- Page 7 R18CWS10 O-ring Nozzle Nozzle cap Operator’s manual On/off trigger Handle Quick-connect collar Coupling nut Duck bill valve Hang tag Battery port Spray tank Battery pack Charger Flathead screwdriver Funnel Know your product...
- Page 8 Always wear eye and ear protection. Pull down the quick-connect collar to Turn the coupling nut counterclockwise Wear an appropriate respiratory mask. remove the spray tank. to loosen and remove it. Wear heavy-duty protective gloves. Wear non-slip safety footwear when using the product.
- Page 9 Place a funnel into the spray tank. NOTE: The hang tag on the product NOTE: Make sure to write the name of indicates the chemical inside the spray the chemical to be used while operating tank. the product. NOTE: The battery port is under the Install the suction assembly and turn Install the battery pack.
- Page 10 Operating the p.11 product Adjusting the p.13 nozzle cap Clearing a blockage p.14 in the nozzle Clearing a blockage in p.16 the suction assembly Storing the product p.19 40°C...
-
Page 11: Operating The Product
OPERATING THE PRODUCT 1. Pull down the quick-connect collar to remove the spray tank. 2. Turn the coupling nut counterclockwise to loosen and remove the suction assembly from the spray tank. 3. Place a funnel into the spray tank. NOTE: The product can be used for spraying water consumer-grade... - Page 12 5. Install the battery pack. Make sure the latches on the battery pack click into place. 6. Install the spray tank. Squeeze the on/off trigger to spray the water or chemical in the spray tank. 7. Use the product to water plants or spray consumer-grade home garden...
- Page 13 ADJUSTING THE NOZZLE CAP 1. Turn the nozzle cap counterclockwise. NOTE: The product produces a stream spray. 2. Turn the nozzle cap clockwise. NOTE: The product produces a cone spray. Operation...
- Page 14 CLEARING A BLOCKAGE IN THE NOZZLE NOTE: The nozzle cap is attached to the nozzle. 1. Press the latches on the battery pack and remove it from the product. 2. Turn the nozzle cap counterclockwise to loosen and remove it from the nozzle. 3.
- Page 15 5. Clean the nozzle cap with water and insert a fine needle into its opening to clear out any blockage or residue buildup. 6. Install the nozzle into the product. 7. Turn the nozzle clockwise to tighten. 8. Install the nozzle cap into the nozzle. 9.
- Page 16 CLEARING A BLOCKAGE IN THE SUCTION ASSEMBLY 1. Press the latches on the battery pack and remove it from the product. 2. Pull down the quick-connect collar to remove the spray tank. 3. Turn the coupling nut counterclockwise to loosen and remove the suction assembly from the spray tank.
- Page 17 NOTE: The filter is part of the suction assembly and is located at the end of the suction tube. 5. Set the filter upright and turn it to the left. 6. Use a flathead screwdriver to wedge the left tab from the groove. 7.
- Page 18 8. Remove the filter cap. NOTE: The seals and filter screen are in between the filter cap and the filter. 9. Clean the suction tube, filter cap, filter screen, seals, and filter with water and a stiff brush. 10. Attach the suction tube to the quick- connect collar.
-
Page 19: Storing The Product
40°C p.16 STORING THE PRODUCT 1. Clean the suction assembly before storing the product. WARNING: Do not store water or chemicals in the spray tank. WARNING: Make sure that the spray tank is empty before storing. WARNING: Clean the spray tank only with water, a clean, dry cloth, and a stiff brush. - Page 20 WARNING: Clean the body of the product only with a clean, dry cloth and a stiff brush. 2. Clean the nozzle before storing the product. 3. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents such as garden chemicals and de-icing salts.
-
Page 21: Product Specifications
RB18L15A, RB18L20, RB18L20A, RB18L15B, RB18L13Z, RB18L25, RB18L25A, RB18L40, RB18L40A, RB18L50, RB18L50A, RB18L30, RB18L30A, RB1840T, RB18L60, RB18L60A, RB18L90, RB18L90A, RB1815C, RB1820C, RB1825C, RB1840C, RB1850C, RB1840X, RB1850X, RB1860X NOTE: Visit your local special orders desk or contact RYOBI customer service for replacement parts. - Page 24 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 961087467-01...
