Summary of Contents for Ryobi R18XPWS10

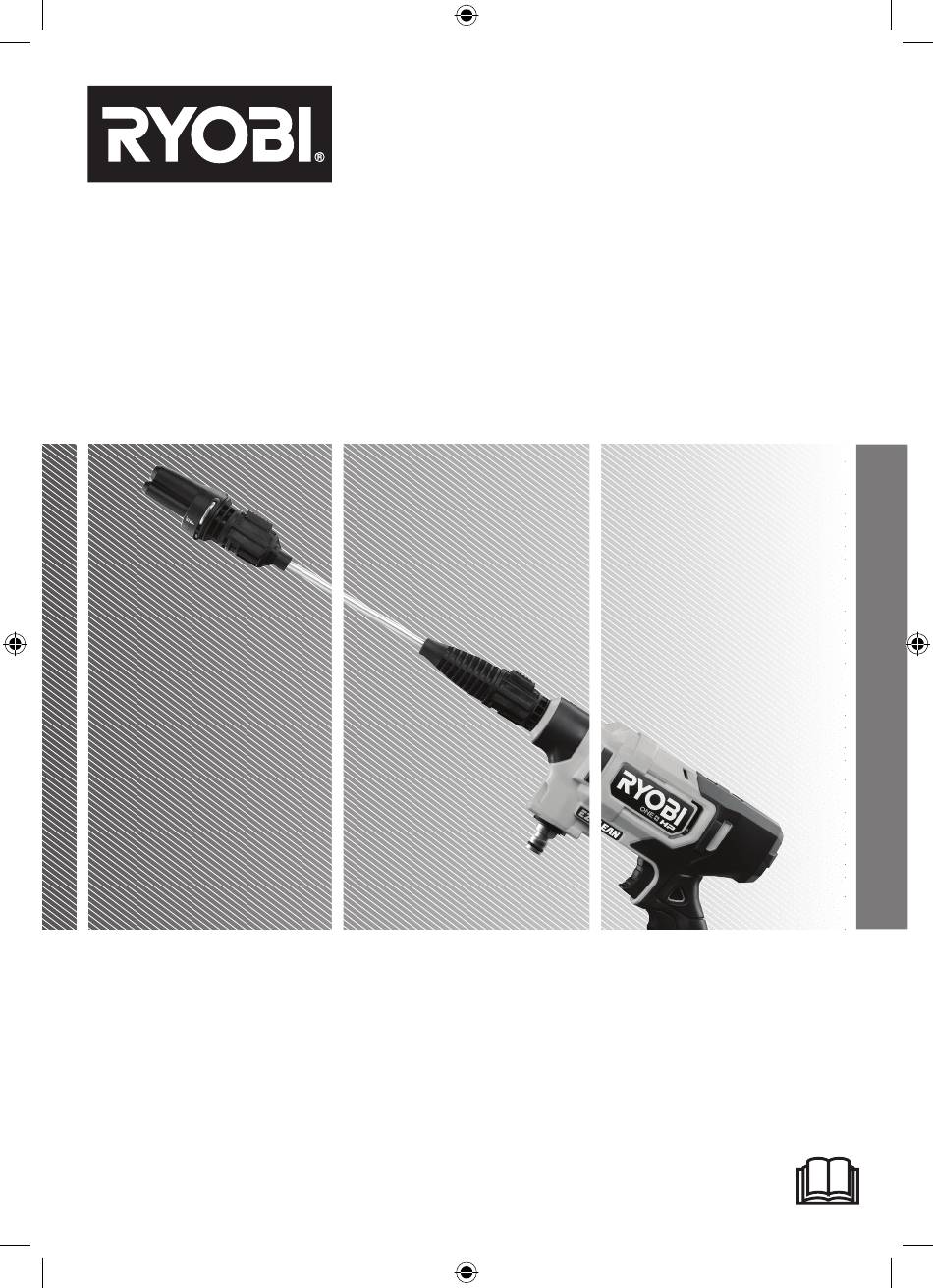

- Page 1 FRONT PAGE R18XPWS10...
-
Page 2: Intended Use
■ Ensure that the safety devices are in good IMPORTANT! working condition. Make sure that all safety It is essential that you read the instructions devices are operating properly before each in this manual before assembling, operating, use. and maintaining the product. ■... -
Page 3: Battery Pack Safety Warnings
do so could cause loss of control and injury ■ Use the product only with battery packs to yourself and others. specified in this manual. Use of any other battery packs may create a risk of injury and ■ Exercise caution to avoid slipping or falling. fire. -
Page 4: Transporting Lithium Batteries
away from corrosive agents, such as garden ■ If the product is to be stored unused for chemicals and de-icing salts. Do not store a long period, the batteries should be the product outdoors. removed. ■ For transportation in a vehicle, secure the SAFETY DEVICES product against movement or falling to ■... -
Page 5: Symbols In This Manual
SYMBOLS IN THIS MANUAL Parts accessories sold separately Note Warning... - Page 7 R18XPWS10 Release button Mode control selector Low mode Medium mode High mode Latch Lock-out button Handle grip Switch trigger Battery compartment Water inlet Quick connector Siphon hose Floater Filter Metal wand 3-in-1 nozzle Operator's manual Battery pack Charger R18XPWS14 Know your product...
- Page 8 Wear full eye and ear protection, Connect the threaded end of the metal Insert the end of the 3-n-1 nozzle into substantial footwear, and long trousers the connector end of the extension wand to the power washer assembly. at all times while operating the product. wand and push until it clicks into place.
- Page 9 Never use the power washer without connecting the 3-in-1 nozzle and wand. Pull down the quick connector collar and insert it into the water inlet. Push up the collar to secure the siphon hose in place. Flip up the latch and unlock the latch Open the battery compartment and install the battery pack into the housing until clip to access the battery compartment.
- Page 10 Using the 3-in-1 p.11 Using the mode p.13 nozzle control selector Storing the product p.14...
- Page 11 USING THE 3-IN-1 NOZZLE 1. Press the lock-out button to lock the product. 2. Turn the 3-in-1 nozzle clockwise or counterclockwise to select the spray pattern. 3. Press the lock-out button to unlock the product, and squeeze the switch trigger to start operating the product.
- Page 12 NOTE: Use the turbo setting for cleaning or washing stubborn dirt or surfaces. WARNING: Do not squeeze the switch trigger while changing nozzle spray patterns. Operation...
- Page 13 USING MODE CONTROL SELECTOR NOTE: The left-most light indicates low mode and will light up when the mode control selector is pressed once. NOTE : The middle light indicates medium mode and will light up when the mode control selector is pressed twice. NOTE : The right-most light indicates high mode and will light up when the mode...
- Page 14 STORING THE PRODUCT 1. Flip up the latch and unlock the latch clip to access the battery compartment. 2. Open the battery compartment and press the latches on the sides of the battery pack to remove the battery pack. Close the battery compartment. 3.
- Page 15 6. Clean the product with a brush. 7. Turn water inlet adaptor counterclockwise to loosen and access the filter. 8. Use water to clean the filter. Install the o-ring back into the product and turn the water inlet adapter clockwise to secure it in place.
- Page 16 10. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children and well away from sources of ignition. Storage...
-
Page 17: Product Specifications
Pivoting adapter REZ7 Nozzle kit Cordless power washer WARNING! The declared vibration total Model R18XPWS10 values and the declared noise emission values given in this instruction manual have been Rated voltage 18V d.c. measured in accordance with a standardised Weight 1.93 kg... - Page 20 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 961479066-01...
