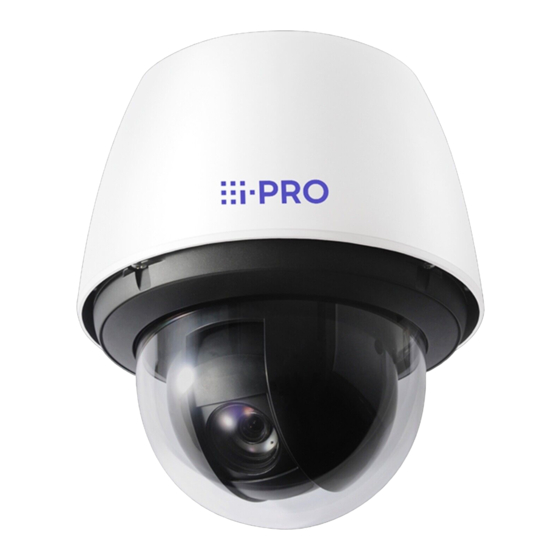

WV-S65340-Z4, WV-S65340-Z2
Model No.
WV-S65340-Z4K, WV-S65340-Z2K
(Heavy salt damage resistance)
About the user manuals
Product documentation is composed of the following documents.
• Installation Guide (accessory): Provides information about "Precautions", "Precautions for
installation" and the installation method.
• Basic Information (this document): Provides information about "Precautions for use", "Parts and
functions" and "Detail specifications".
• Operating Instructions (Refer to the link on the following product information website):
Explains how to perform the settings and how to operate this camera.
https://i-pro.com/global/en/surveillance/training-support/documentation-database-list
"<Control No.: C****>" used in these documents should be used to search for information on our
technical information website (https://i-pro.com/global/en/surveillance/training-support/support/
technical-information) and will guide you to the right information.
• microSDXC/ microSDHC/ microSD memory card is described as microSD
memory card.
• The external appearance and other parts shown in this manual may differ
from the actual product within the scope that will not interfere with normal
use due to improvement of the product.
Basic Information
Network Camera
(Heavy salt damage resistance)
WV-S65340-Z4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WV-S65340-Z4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for i-PRO WV-S65340-Z4

Summary of Contents for i-PRO WV-S65340-Z4

  • Page 1 “<Control No.: C****>” used in these documents should be used to search for information on our technical information website (https://i-pro.com/global/en/surveillance/training-support/support/ technical-information) and will guide you to the right information. • microSDXC/ microSDHC/ microSD memory card is described as microSD memory card.

  • Page 2: Table Of Contents

    Contents Limitation of liability ........................3 Disclaimer of warranty ........................3 About notations ..........................4 System requirements for a PC ...................... 4 Network security ........................... 5 Precautions for use ........................6 Parts and functions ........................10 Insert / remove a microSD memory card ..................15 Troubleshooting ...........................

  • Page 3: Limitation Of Liability

    IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL i-PRO Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:...

  • Page 4: About Notations

    About notations Some functions are expressed with the following notations in this document. The functions with this notation are available when using the model WV-S65340-Z4 or S65340Z4 WV-S65340-Z4K. The functions with this notation are available when using the model WV-S65340-Z2 or S65340Z2 WV-S65340-Z2K.

  • Page 5: Network Security

    Network security As you will use this unit connected to a network, your attention is called to the following security risks. ① Leakage or theft of information through this unit ② Use of this unit for illegal operations by persons with malicious intent ③...

  • Page 6: Precautions For Use

    Precautions for use When the product is accessible from the Do not subject dome cover to strong Internet impact. To prevent unauthorized access, note the fol- Doing so may cause damage or immersion. lowing. Do not directly touch the dome cover with •...
  • Page 7 Cleaning this product body About dehumidifying device Be sure to turn off the power before cleaning. • This product has dehumidifying device to Failure to observe this may cause injury. keep the inside at a low humidity level. Do not use benzine, thinner, alcohol, or any •...
  • Page 8 About ClearSight coating Lens and pan/tilt head Due to the rain wash coating effect of the If a lens and pan/tilt head are not performed for a long period of time, the grease coating inside dome cover, drips tend to be accumulated right below the camera and it may cause a par- these parts may become sticky.
  • Page 9 Effects on images and image quality Under the following conditions, image quality may deteriorate or images may become difficult to see. • When there are raindrops on the dome cover due to wind during rainfall. • When there is snow on the dome cover due to wind during snowfall.

  • Page 10: Parts And Functions

    Parts and functions ■ Cables The following are descriptions when using the model WV-S65340-Z4. Ethernet cable (category 5e or better, straight, 4 pairs (8 pins)) cable [1] RJ45 network EXT I/O cable [5] EXT I/O cable [5] 8P alarm cable (accessory) <...
  • Page 11 [2] Power cable / 24 V AC power supply connector kit (accessory) When using a 24 V AC power supply, connect the output of the AC transformer to the 24 V AC power supply connector (accessory) with the contact (accessory). Then, connect the 24 V AC power supply connector to the connection terminal of the power cable.
  • Page 12 [5] EXT I/O / 8P alarm cable (accessory) Connect the 8P alarm cable (accessory) to the EXT I/O. Then, connect the external device cable to the 8P alarm cable. Note: • Off, input, and output of the EXT I/O terminal 2 and 3 can be switched by configuring the setting. Refer to the Operating Instructions for further information about the EXT I/O terminal 2 and 3 settings (“Off”, “Alarm input”, “Alarm output”...
  • Page 13 ■ Indicators and buttons ③ ACT indicator (green) ② LINK indicator (orange) ④ SD ERROR indicator (red) ① INITIAL SET (initialization) switch (OFF⇔ON) INITIAL SET switch Follow the steps below to initialize the network camera. IMPORTANT: • When the camera is initialized, the settings including the network settings will be initialized. Note that the preset position settings and the CRT key (SSL encryption key) used for the HTTPS protocol will not be initialized.
  • Page 14 IMPORTANT: • When the camera is initialized, the settings including the network settings will be initialized. Before initializing the settings, it is recommended to write down the settings in advance. • Do not turn off the power of the camera during the process of initialization. Otherwise, it may fail to initialize and may cause malfunction.

  • Page 15: Insert / Remove A Microsd Memory Card

    Insert / remove a microSD memory card Note: • Use a microSD memory card dedicated to i-PRO cameras. • Refer to the Operating Instructions on our product information website for further information about the microSD memory card settings. ■ Insert a microSD memory card Remove the back cover of the sunshield on the rear of the camera by pushing the claws on the top of the sunshield and pulling it forward.
  • Page 16 ■ Remove a microSD memory card When removing a microSD memory card, reverse the procedure. • Before removing the microSD memory card, make sure to select “Not use” for “SD memory card” on the [SD memory card] tab of “Basic” page on the setup menu first. (☞ Operating Instructions) Note: •...

  • Page 17: Troubleshooting

    Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages When using a PoE+ / PoE++ device for power supply...
  • Page 18 Reference Symptom Cause/solution pages • Is the Ethernet cable connected appropriately? Connect the Ethernet cable appropriately. The LINK indicator • Is the hub or router connected to the camera operating does not light in appropriately? orange even when the Ethernet cable is con- Check if the hub or router in use is operating appropriately.
  • Page 19 Reference Symptom Cause/solution pages • In the following locations or with the following subjects, the focus may not be able to be automatically adjusted. In this case, manually adjust the focus from the software screen. • When the subject moves a lot •...

  • Page 20: Detail Specifications

    Detail specifications • Basic Power source* 24 V AC PoE++ (IEEE802.3bt compliant) PoE+(IEEE802.3at compliant) Power consumption* ■ When using in the operating temperature range of –50 °C to +60 °C {–58 °F to +140 °F} 24 V AC: 3.4 A/ Approx. 53.3 W PoE++ 54 V DC: 940 mA/ Approx.
  • Page 21 Finish: Main body: <WV-S65340-Z4><WV-S65340-Z2> Aluminum die cast, silver / PC resin, <WV-S65340-Z4K><WV-S65340-Z2K> Aluminum die cast (The heavy salt damage resistance coating), silver / PC resin, Outer fixing screws: Stainless steel (Corrosion-resistant treatment) Dome cover: PC resin, (with ClearSight coating) (Transmittance: 45 %)
  • Page 22 Super Dynamic* On/Off The level can be set in the range of 0 to 31. Dynamic range: Max. 144 dB (Super Dynamic: On, Level: 31) Maximum gain: The level can be set in the range of 0 to 11. Adaptive black stretch: The level can be set in the range of 0 to 255.
  • Page 23 Camera title on screen: On/Off Up to 40 characters, Up to 2 lines (alphanumeric characters, marks) Video Motion Detection (VMD): On/Off 4 areas available Scene Change Detection (SCD): On/Off 1 area available Audio Detection: On/Off AI Sound classification: Selectable from Gunshot, Yell, Vehicle horn, Glass break *1 When 60 fps or 50 fps is selected, the Super Dynamic function is automatically set to off.
  • Page 24 DORI* S65340Z4 Detect (25 ppm / 8 ppf) 2095.2 m {6873.9 ft} (TELE) 60.3 m {197.8 ft} (WIDE) Observe (62.5 ppm / 19 ppf) 838.1 m {2749.5 ft} (TELE) 24.1 m {79.1 ft} (WIDE) Recognize (125 ppm / 38 ppf) 419.0 m {1374.8 ft} (TELE) 12.1 m {39.6 ft} (WIDE) Identify (250 ppm / 76 ppf) 209.5 m {687.4 ft} (TELE) 6.0 m {19.8 ft} (WIDE)
  • Page 25 • Network Network: 10BASE-T/100BASE-TX, RJ45 connector Resolution: [16:9 mode(60 fps mode)][16:9 mode(30 fps mode)] H.265/ H.264* [16:9 mode(50 fps mode)][16:9 mode(25 fps mode)] JPEG (MJPEG) 1920×1080/ 1280×720/ 640×360/ 320×180 [4:3 mode(30 fps mode)] [4:3 mode(25 fps mode)] 1280×960/ VGA/ QVGA [4:3 mode(15 fps mode)] [4:3 mode(12.5 fps mode)] 2048×1536* / 1280×960/ VGA/ QVG Image compression method*...
  • Page 26 JPEG (MJPEG) Image quality: 0 SUPER FINE/ 1 FINE/ 2/ 3/ 4/ 5 NORMAL/ 6/ 7/ 8/ 9 LOW (10 steps: 0-9) Transmission type: Pull (Refresh interval)/ Push (MJPEG) Refresh interval: [60 fps mode] 0.1 fps/ 0.2 fps/ 0.33 fps/ 0.5 fps/ 1 fps/ 2 fps/ 3 fps/ 5 fps/ 6 fps/ 10 fps/ 12 fps/ 15 fps/ 30 fps/ 60 fps [30 fps mode] 0.1 fps/ 0.2 fps/ 0.33 fps/ 0.5 fps/ 1 fps/ 2 fps/ 3 fps/ 5 fps/ 6 fps/...
  • Page 27 <Control No.: C0132>. *6 When using MJPEG/JPEG (Refresh interval) only. *7 Use a microSD memory card dedicated to i-PRO cameras. *8 For possible number of images and duration (an indication) that can be saved on the microSD memory card, refer to our technical information website below.
  • Page 28 Authorised Representative in EU: i-PRO EMEA B.V. Laarderhoogtweg 25, 1101 EB Amsterdam, Netherlands Tokyo, Japan i-PRO EMEA B.V. UK Branch 1010 Cambourne Business Park, https://www.i-pro.com/ Cambridgeshire CB23 6DP © i-PRO Co., Ltd. 2022 N0822-1102 PGQP3508YA...
