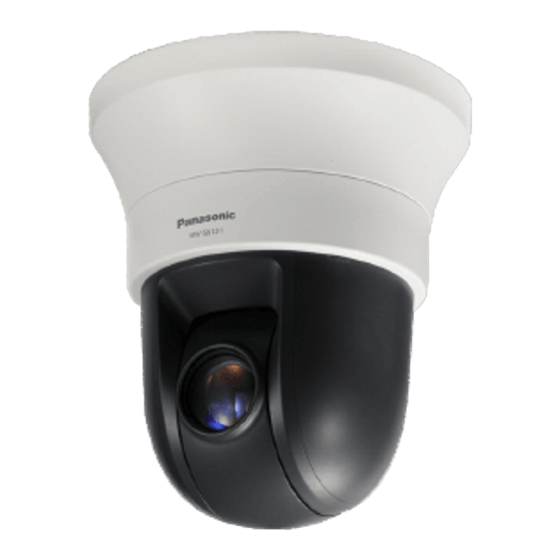

Network Camera
WV-S6131 / WV-S6111
Model No.
WV-S6130
LO C K
O P E N
WV-S6131
WV-S6130
* For information about the installation tasks, refer to the provided Installation
Guide. For information about how to perform the settings and how to
operate the camera, refer to the Operating Instructions on the provided
CD-ROM.
Before attempting to connect or operate this product,
please read these instructions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
