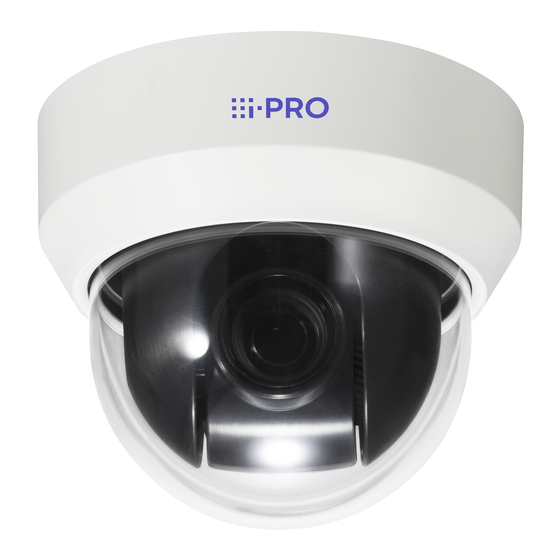

i-PRO WV-S65501-Z1 Installation Manual

Installation Guide
Included Installation Instructions
Network Camera
For professional use only Outdoor use
WV-S65501-Z1
Model No.
About the user manuals
Product documentation is composed of the following documents.
• Installation Guide (this document): Provides information about "Precautions",
"Precautions for installation" and the installation method.
• Basic Information (Refer to the link on the following product information website): Provides
information about "Precautions for use", "Parts and functions" and "Detail specifications".
• Operating Instructions (Refer to the link on the following product information website):
Explains how to perform the settings and how to operate this camera.
https://i-pro.com/global/en/surveillance/training-support/documentation-database-list
"<Control No.: C****>" used in these documents should be used to search for information on
our technical information website (https://i-pro.com/global/en/surveillance/training-support/
support/technical-information) and will guide you to the right information.
• Before attempting to connect or operate this product, please read these instructions
carefully and save this manual for future use.
• microSDXC/ microSDHC/ microSD memory card is described as microSD memory card.
• The external appearance and other parts shown in this manual may differ from the actual product within the
scope that will not interfere with normal use due to improvement of the product.
Tokyo, Japan
https://www.i-pro.com/
© i-PRO Co., Ltd. 2022
Authorised Representative in EU:
i-PRO EMEA B.V.
Laarderhoogtweg 25, 1101 EB
Amsterdam, Netherlands
i-PRO EMEA B.V. UK Branch
1010 Cambourne Business Park,
Cambridgeshire CB23 6DP
PGQP3665ZA
Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling systems
These symbols on the products, packaging, and/or accompanying documents mean that used
electrical and electronic products and batteries must not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any potential
negative effects on human health and the environment.
For more information about collection and recycling, please contact your local authority.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
Note for the battery symbol (bottom symbol)
This symbol might be used in combination with a chemical symbol. In this case it complies with the
requirement set by the Directive for the chemical involved.
For U.S.A.
NOTE: This equipment has been tested and found
to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when the equipment
is operated in a commercial environment. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is
likely to cause harmful interference in which case the
user will be required to correct the interference at his
own expense.
For U.S.A.
The model number and serial number of this prod-
uct may be found on the surface of the unit.
You should note the model number and serial num-
ber of this unit in the space provided and retain this
book as a permanent record of your purchase to aid
identification in the event of theft.
Model No.
Serial No.
Méthode d'installation
Monter directement la caméra vidéo sur la surface d'installation.
Installer la caméra vidéo sur une boîte de groupe/boîte de jonction double.
Installer la caméra vidéo à l'aide de la platine de fixation d'installation
exclusivement conçue.
* La longueur de la vis est un exemple lors de l'installation de la caméra au plafond ou sur un mur robuste d'une
épaisseur de 20 mm {25/32 pouces} ou plus.
Contents
Precautions ........................................................ 2
Open source software ........................................ 3
Copyright ........................................................... 3
Trademarks and registered trademarks ............... 3
Precautions for installation .................................. 3
N1222-0
Troubleshooting .................................................. 3
1
FCC CAUTION: Changes or modifications not
expressly approved by the party responsible for com-
pliance could void the user's authority to operate the
equipment.
Supplier's Declaration of conformity
Trade name : i-PRO
Model No. : WV-S65501-Z1
Responsible Party :
i-PRO Americas Inc.
8550 Fallbrook Drive, Suite 200 Houston,
Texas 77064
Support Contact : 1-800-513-5417
For U.S.A.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
For Canada
CAN ICES-3(A)/NMB-3(A)
Vis de fixation La capacité de traction
recommandée minimale requise
M4x16 mm
196 N {44 lbf}
{5/8 pouces} x 4 él.*
Se référer au manuel d'utilisation de chaque
platine de fixation.
Specifications. .................................................... 4
Optional accessories .......................................... 4
Standard accessories ......................................... 4
Other items that are needed (not included) ......... 4
Installation Procedure ......................................... 5
