Quick start ADC1610S series
Quick start ADC1610S series
Quick start ADC1610S series
(F1 or F2 versions)
(F1 or F2 versions)

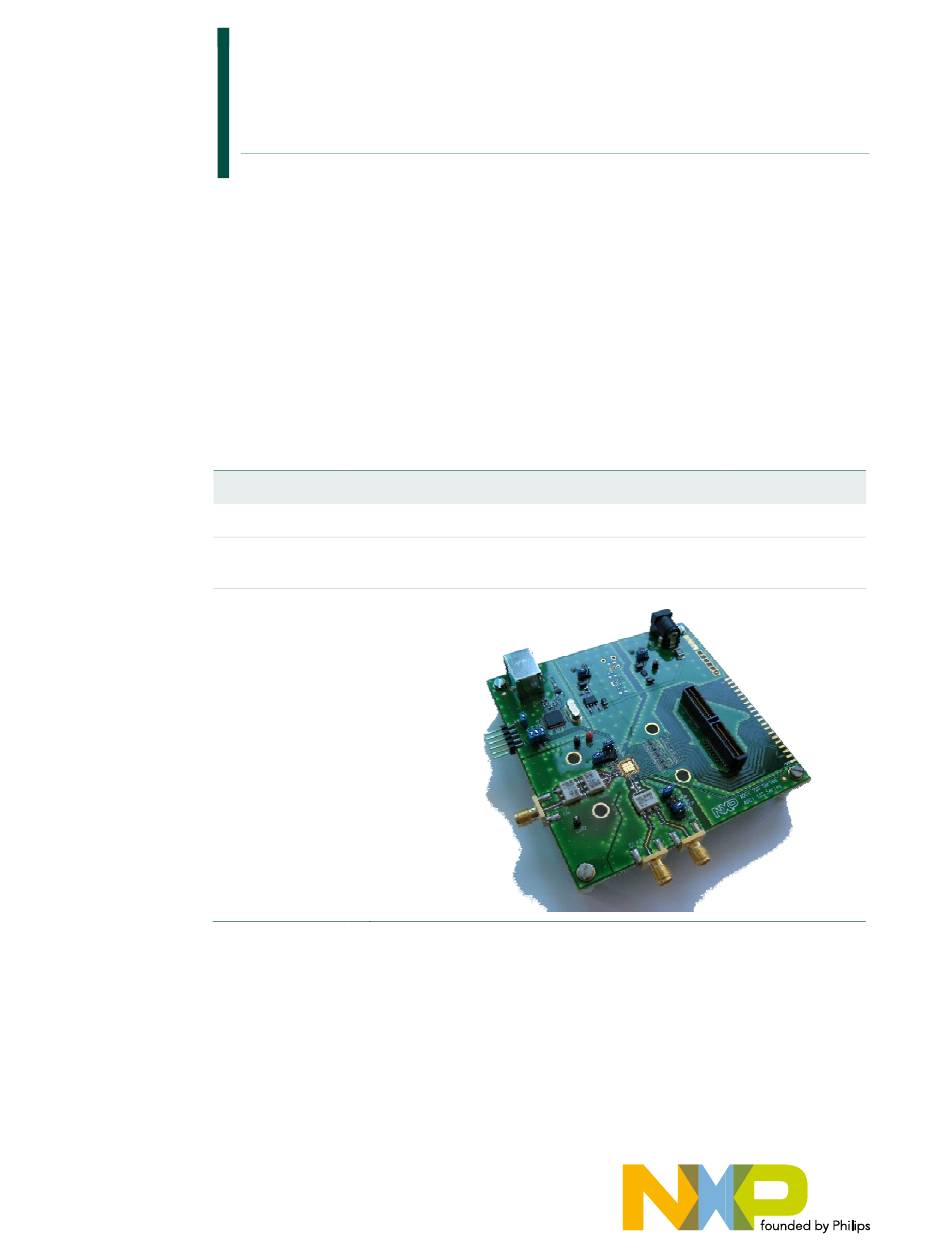

Demonstration board for ADC1610S series
Demonstration board for ADC1610S series
Rev. 5 — January 2011
January 2011
Document information
Document information
Info
Content
Keywords
PCB2131-1, Demonstration board, ADC, Converter
Abstract
This document describes how to use the demonstration board for the
This document describes how to use the demonstration board for the
analog-to-digital converter ADC1610Sseries.
Overview
Quick start
